Nokia 6010 motherboard replacement

Geschrieben von: Nicholas Hanne
  • Kommentare: 1
Nokia 6010 motherboard replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

2 Minuten

Einleitung

Use this guide to remove and replace the Nokia 6010's logic board.

  1. 6PMTknkdLxmcKCSP
    6PMTknkdLxmcKCSP
    jVawMHjGMXZ2llPA
    hkaZOFbrBfYCH3Vx

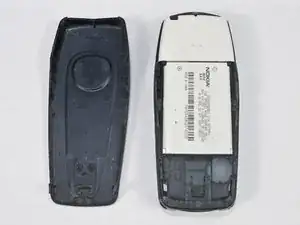

    • Press the small tab on the bottom of the back of the phone.

    • Push the back case upward towards the power button. The back case will then pop off.

    • It requires some force, so be careful.

  2. POgRb3TNyfWWqSWs
    POgRb3TNyfWWqSWs
    HdcW3uMFRTo1X6ul

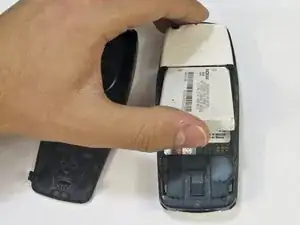

    • Lift the battery near the bottom and pry up.

  3. W4WaFSKwKyQwVXJF

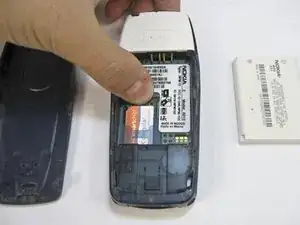

    • With one hand, press the ridged tab near the visible side of the SIM card.

    • Slide the card out with your other hand.

    Thank you ! The instruction was really easy to understand

    Tobi Hunt -

  4. lOYKIUaypOlUF2Qp
    lOYKIUaypOlUF2Qp
    bWMLrupYMXSNWVhV

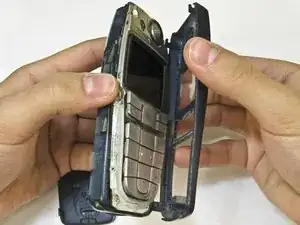

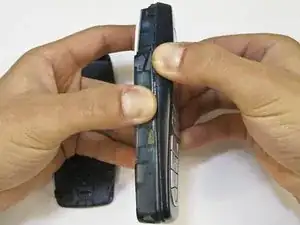

    • Grip the phone on either the sides, the top, or the bottom.

    • Pull the front case away from the rest of the phone.

    • There are no special tabs to keep it in place so it should wiggle free easily.

  5. KED4iBgyw1Kw6Lqk

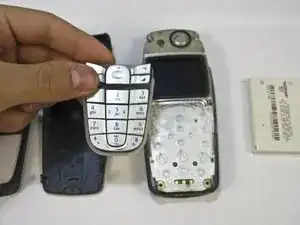

    • Lift the keypad away from the body of the phone.

    • The keypad is the rubber-backed piece with the number keys.

  6. O15kDskVBQEwgCUi
    O15kDskVBQEwgCUi
    MQRrPpybqxRZRYZ3

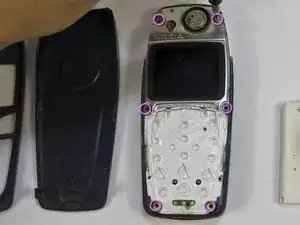

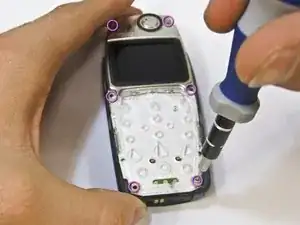

    • Remove the six screws around the front of the phone body with a T6 screwdriver.

  7. KCncjJNWEpUOHAGx
    KCncjJNWEpUOHAGx
    NXdMEyUAPVAXZAoZ
    FCyn4XiR6lGfSZWA

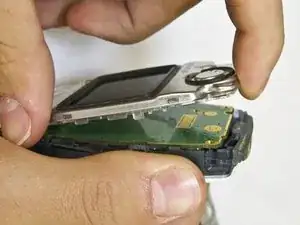

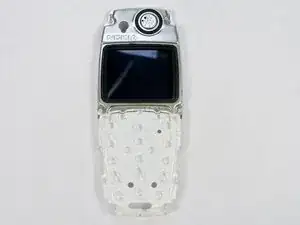

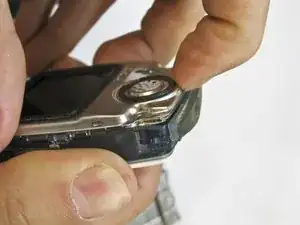

    • Insert your finger underneath the speaker piece and pry away from the phone body.

    • The plastic layer containing the LCD screen and speaker takes some force to remove.

    • There are 4 plastic tabs which keep it in place, but they are hard to press. Be careful and go tab by tab or use a spudger if you are nervous about using too much force.

    • The LCD and the speaker are attached to the same piece and must be replaced together.

  8. emZP24TLTMjwYpPT
    emZP24TLTMjwYpPT
    1PYTtTrXSOIejrBX

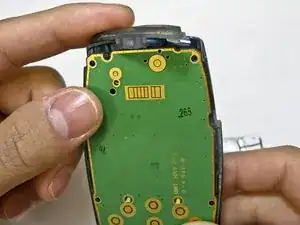

    • Slide the rubber power button away from the body of the phone.

    • The power button is the rubber piece on the top of the phone.

  9. ZBNRhjEb4WNPsuvb
    ZBNRhjEb4WNPsuvb
    iPIqJnhZ1uJyXfDI
    LBhfraVNZBqi2IoO

    • Insert a finger between the phone body and logic board.

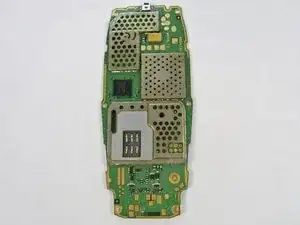

    • The logic board is the green plastic piece with circuitry attached.

    • Pull the board away gently.

    • The board is delicate and contains electronic parts. Be careful while removing it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
