Change the security door cylinder

Geschrieben von: Z.Heng
  • Kommentare: 0
Change the security door cylinder

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

According to this guide can easily replace the home security door cylinder.

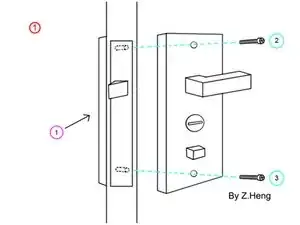

  1. ricyoeySDLNciSeX

    • It is advisable to work with two people, one holding the outer handle on the outside and the other unloading the screw on the other side.

    • Remove the two screws.

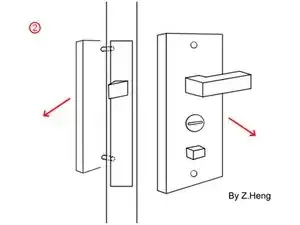

  2. wMEd4m5TBDE5H6Gs

    • Use pry bar carefully pry around, you can remove both sides of the door handle.

    • There is usually a plastic washer between the handle and the door, taking care not to damage it.

    • There will be a metal square shaft connected between the handle. Be careful not to lose it when removing the inside handle because the shaft is inside and outside.

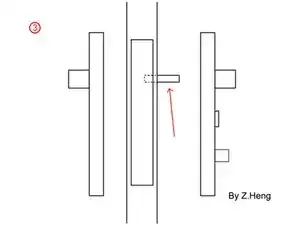

  3. 2LSPl3ai3RhpJRTw

    • Pay attention to the installation direction of this square shaft. Do not knock it off when removing the handle.

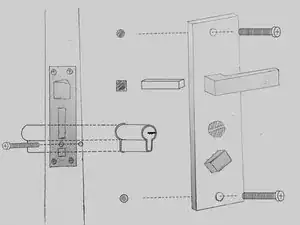

  4. FipgBeIVKlUQBMJ1

    • Remove the lock cylinder lock screw.

    • Push the lock cylinder to one side of the door, which side is easy to push.

    • Note that the lock cylinder has different types and installation directions. If you want to change the lock cylinder, observe your lock cylinder side, there is a black lever, some in the middle of the cylinder, some in the side position.

Abschluss

Please re-install in the reverse order of this guide.
