1922 GE AOU Fan Power cord Replacement

Geschrieben von: Elias Dorna
  • Kommentare: 1
1922 GE AOU Fan Power cord Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the power cord on a 1922 GE AOU fan.

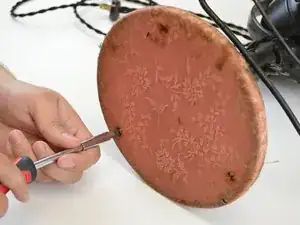

  1. HfEWGEh4CNaAfPT2
    HfEWGEh4CNaAfPT2
    LZBxgpCDMiCQUKVN

    • Tip the fan to its side and remove the three size 8 screws using a 9/32 flat-head screwdriver.

    • The screws may be brittle from age, so be careful.

    • Take the bottom plate off the fan and set it aside.

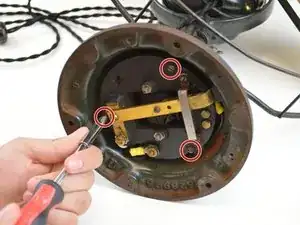

  2. HTMJXZZZCcdmT1Rc

    • Remove the three number 8 screws that hold the switch in place.

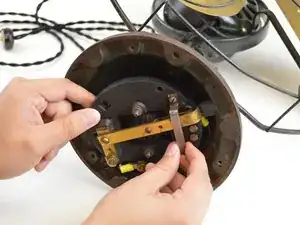

  3. MKqLPvFBbYwV3m5Q

    • Remove the switch, carefully sliding the speed lever out of its slot.

    • Don't remove the switch too quickly or you can damage the head-wire.

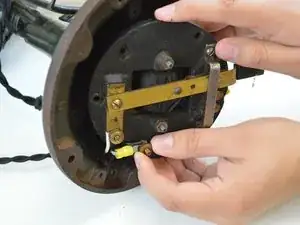

  4. AYN5AS2e1LhFju6k

    • Once the switch is free, unscrew the two knurled nuts holding the wires in place.

  5. SDKFDo5Pega2w2aD

    • Turn the switch over and unscrew the nut securing the wire with the 5/16 crescent wrench.

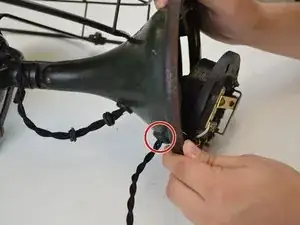

  6. pwlQauLoQ2XuwquZ

    • Remove the switch and set it aside, then pull the wire through the grommet.

Abschluss

To reassemble your device, follow these instructions in reverse order.
