1967-68 Mustang Kick Panel Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

25 - 40 Minuten

Einleitung

Most people aren't happy when a speaker blows out in their car. Old cars can be intimidating because working on them may be difficult at times. This is the perfect Fast Fix guide for anyone who has that problem with their classic Mustang.

  1. mBVysBbJ53Wfx11u
    mBVysBbJ53Wfx11u
    HJeVViQmxndYMseV

    • Find the car battery under the hood.

    • On the battery locate the black negative battery terminal.

    • Next unscrew the knob on the disconnect.

    • Lastly move the negative lead away from the batter terminal.

    • Make sure not to cross the battery leads.

  2. tWPmvG6cY3IIYWCJ

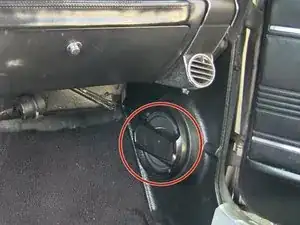

    • Locate the kick panel speaker that needs to be replaced.

  3. DGZBUVDPNkucH2QO

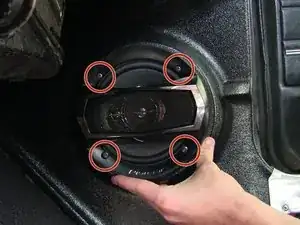

    • Locate the two top screws as well as the two bottom screws for the speaker.

    • Check the kind of screws that were used to hold the speaker in place.

  4. 2WPDLmbQ3KIbr2Qw
    2WPDLmbQ3KIbr2Qw
    WkFibSvn1w5sTgnp
    QjfHi1KbceNVk4xi

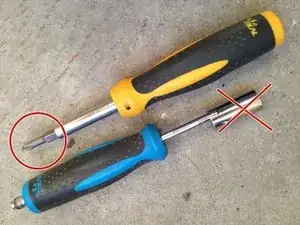

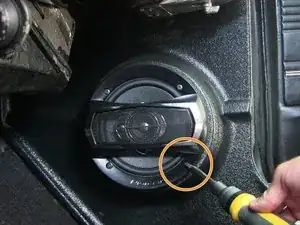

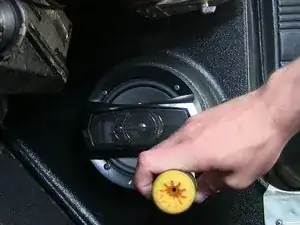

    • You are now ready to start replacing the speaker.

    • A philips head screwdriver will be needed.

    • Do not use a socket in this situation because it may mess up the speaker guard.

    • Lastly make sure to remove the screw completely without stripping out the screw hole.

  5. UIu1WJiGVMahubVS
    UIu1WJiGVMahubVS
    aBegVDeMt6qWioSS
    CwpCb1UQf1xfofAn

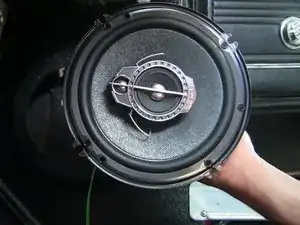

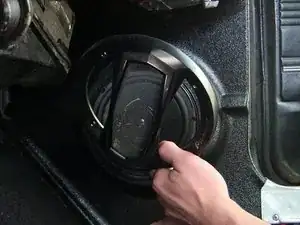

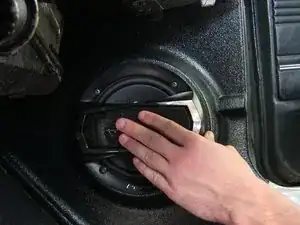

    • The speaker guard and speaker are now ready to be removed.

    • Be careful when removing the speaker. Do not pull the wires tight.

  6. MYAGqxuv4Ebm34XK
    MYAGqxuv4Ebm34XK
    cX5Z5ALmYHZogckH

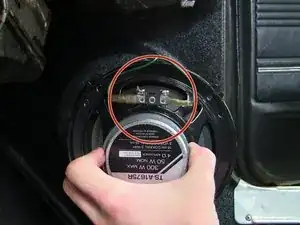

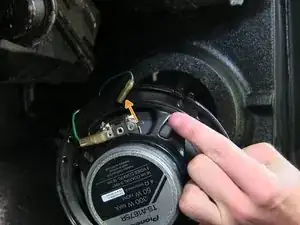

    • Locate the wires on the back of the broken speaker.

    • Remove both the positive and negative wires.

  7. E5lx6TQOjPnwspkm
    E5lx6TQOjPnwspkm
    xE1RjwliTGQIT2VG

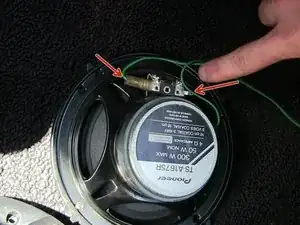

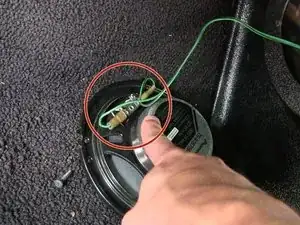

    • Now locate the new speaker.

    • Slide the positive and negative wires onto the speaker terminals.

  8. Ma5QJWXOTgh3Qdp4
    Ma5QJWXOTgh3Qdp4
    Z2jLF3XxjJEHUjT4
    HHPXGyknoWxeNFvM

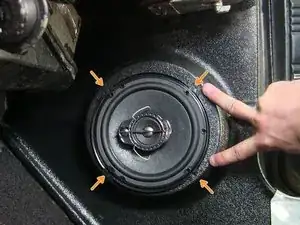

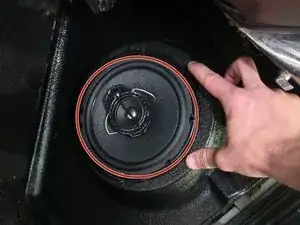

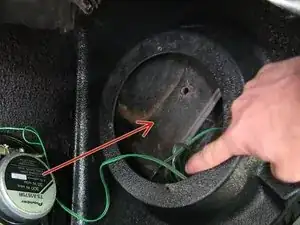

    • Place the speaker back into the kick panel housing.

    • Line up the speaker holes with the existing holes in the kick panel.

    • Be careful not to pinch the speaker wires.

    • This would be a good time to replace the speaker wires if needed

  9. SKliBJke4GhJbWBA
    SKliBJke4GhJbWBA
    qlLWHUnFOMLudgUs

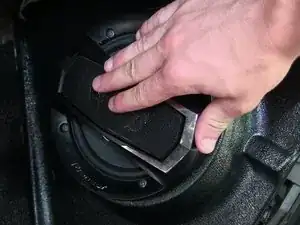

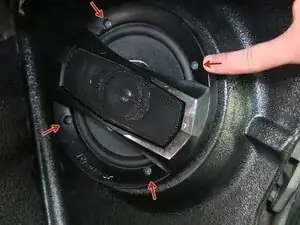

    • Place the speaker guard back over the speaker.

    • Screw in all four screws

    • Do not over tighten the screws or the holes will strip out.

  10. 3G6QrElO2CbKjrVU
    3G6QrElO2CbKjrVU
    OCprq4v6mW3YlxXn

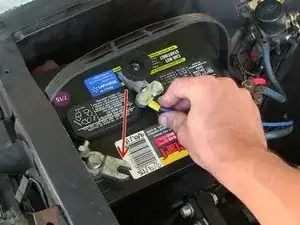

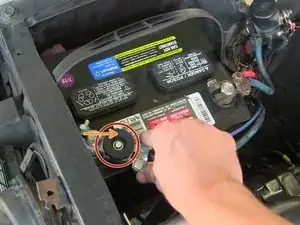

    • Reconnect the negative battery terminal.

    • Screw the knob until it is snug.

Abschluss

You have now replaced the speaker.
