A step by step guide on how to replace the speakers on a 1996 Ford Thunderbird.

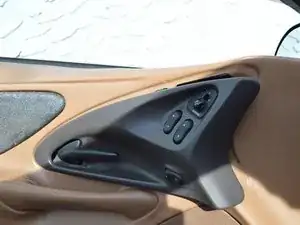

  1. eHCL42HcioZQyhGQ
    eHCL42HcioZQyhGQ
    jMYAIFXq2222icvI
    • Use a plastic pry tool (or screwdriver but be careful) to pop the black panel off of the door.

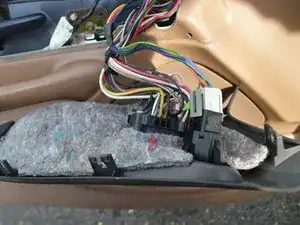

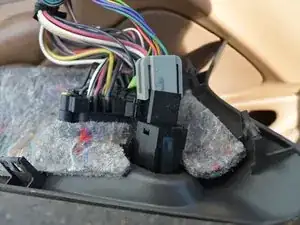

  2. ApDHSOQkwEArWXf6
    ApDHSOQkwEArWXf6
    AGsmFxQoxxY1H2pc
    • Once the black panel has been removed, take out the power side mirror plug (if you have one)

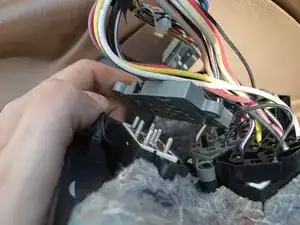

  3. apCpaNBURZJqHU5S
    • Begin romving the power windows connector by removing the screws, then prying off the plastic connectors

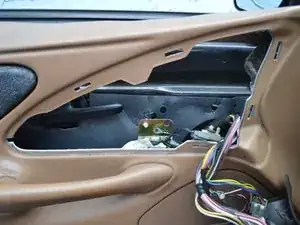

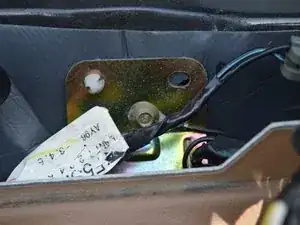

  4. DIFbHj4HFsOG1SQe
    DIFbHj4HFsOG1SQe
    GIipnvZF23vvcZC6
    • Remove the bolt holding on the plastic to the door.

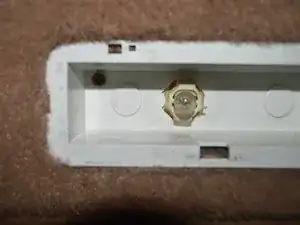

  5. NpLNsZXIYqC3bD3K
    NpLNsZXIYqC3bD3K
    DFJrTyRBY33RWCwR
    • Pry the plastic off of the light enclosure on the bottom of the door. Once you remove it, take the screw out. This is the only other screw holding the door on.

    This screw will not back out. Any suggestions?

    Nicole Black -

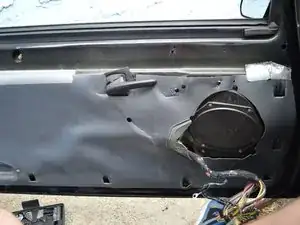

  6. mVtnVXKFKDe6DPhM
    • Now your door should look like this! (With some Ford factory duct tape)

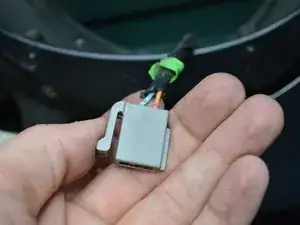

  7. VZA2CPMAL1VnggXI
    • Once you've removed the speaker off of the door by removing the bolts unplug it. This is the connector

  8. gEw11rmshRdNQPBV
    • Once you solder the wires (or crimp them) replace the new speaker on to the door.

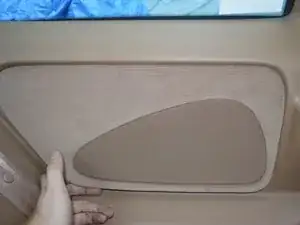

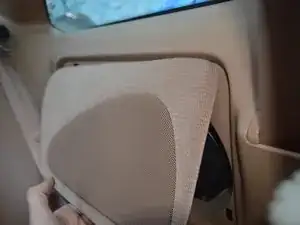

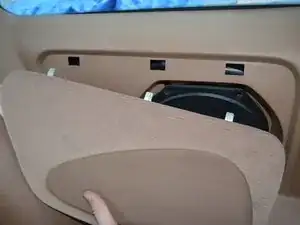

  9. VnYMRAQnRZCkDo2G
    VnYMRAQnRZCkDo2G
    txko1LTDRB6hbRUl
    O2C5aKC3KKCDacWF
    • Moving to the back, use your screw driver or pry tool on the BOTTOM of the panel.

    • Pry it outward, then pull it out.

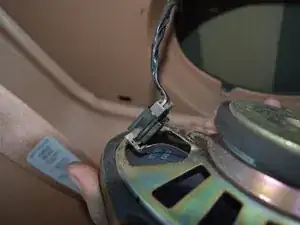

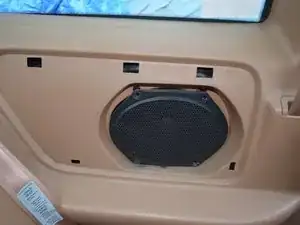

  10. acVSBJ2UAVKK55fn
    acVSBJ2UAVKK55fn
    5vElX4rVeknUnrTm
    • Remove the speaker like the driver's side (as show earlier)

    • Unplug the speaker, solder the wires, put the bolts back on afterwards

  11. Tn2jelXxQYTCh1KQ
    • Here's the passenger side door panel taken out. remove the screws and pry out like the driver's side

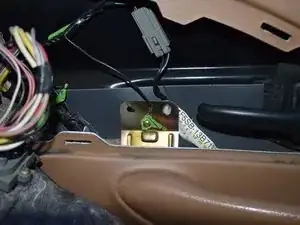

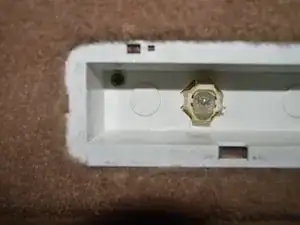

  12. oVbcERvmXD3LyR3u
    oVbcERvmXD3LyR3u
    xFCgI1NOssIO3tyW
    • Follow the same steps from the driver's side for the passenger's side, replace all the plastic, and enjoy!

Abschluss

To reassemble your device, follow these instructions in reverse order.
