1994-2004 Ford Mustang Headlight Replacement

Geschrieben von: Josiah Crutchfield
  • Kommentare: 1
1994-2004 Ford Mustang Headlight Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide is for the purpose of demonstrating how to remove and replace the headlights in a 1994-2004 Ford Mustang. There are no safety hazards for this fast fix, and the difficulty level is not high. To complete this fast fix, no prior mechanical experience is needed beyond knowing how to tighten and loosen a screw. Since the car is old, you may need to lubricate certain parts to assist in the removal of them, and some connecting pieces may be worn or broken. The bulb can easily be found at an auto-parts store.

Prior to beginning your guide, make sure that your car is off and the emergency break is on.

  1. CvcHkYuqRaCM6hoX
    CvcHkYuqRaCM6hoX
    3eVPm2CYeOvyEolt

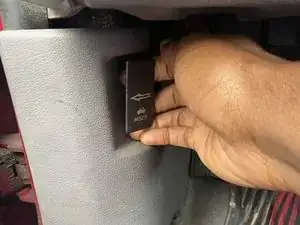

    • To open the hood, pull the release lever by your foot break inside the car.

  2. NvEJhvxFVMAC5dSC
    NvEJhvxFVMAC5dSC
    NYLsiMVTcRAhlmRg

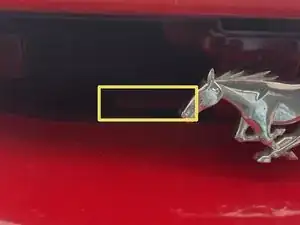

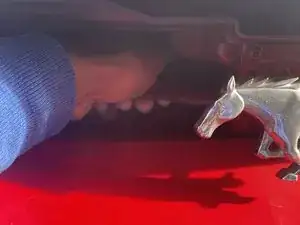

    • To raise the hood, lift up on handle at the front of the hood.

  3. gisLTyxFIG2XXKwP

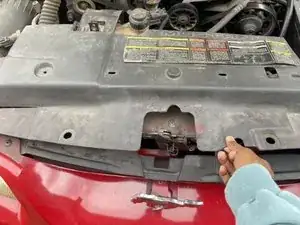

    • Remove this cover.

  4. VCYnOl6nMKE5BKDT
    VCYnOl6nMKE5BKDT
    PQ1vJBH1ELd4ZTpM

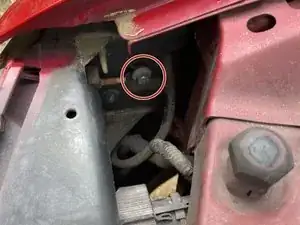

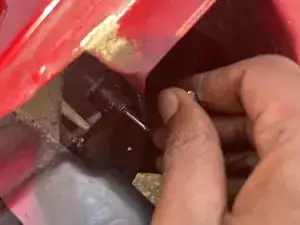

    • Using the 11mm wrench remove the nut.

  5. MiypGC3ZGEWSLtIB

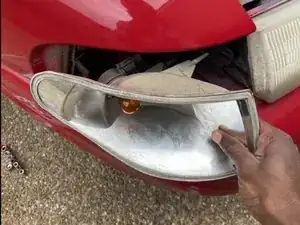

    • Gently pull out the side paneling using your hands

  6. VgtdDaPvpcdxviAT
    VgtdDaPvpcdxviAT
    Taa5uSAIgdDQP4ob

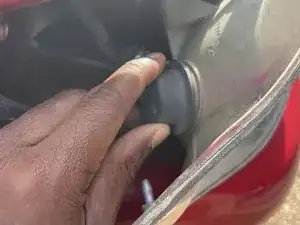

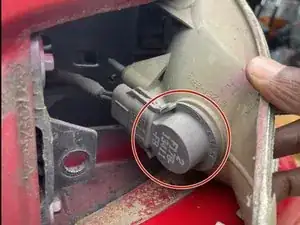

    • Take out the turn signal light by twisting it and remove the side panel.

  7. sjNBborxtH6lVJCQ
    sjNBborxtH6lVJCQ
    vgDYJ6JWPKEtQ54R

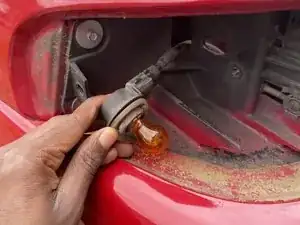

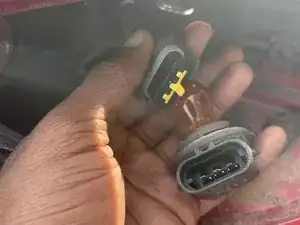

    • Remove the bulb from the connector by pulling the two apart and connect the new bulb.

  8. DgWwnmZyZn2QTFc3

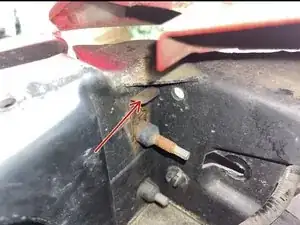

    • In the same area where you removed the screw, remove the clip by hand or use needle nose pliers.

  9. SHAsvhEYL5Gs1UaG
    SHAsvhEYL5Gs1UaG
    OIjaPjlRkCBepUuM

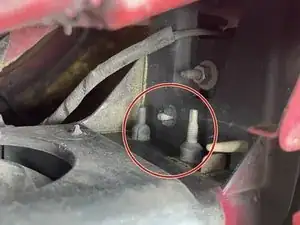

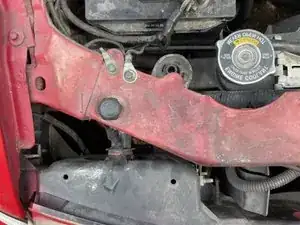

    • Identify the three retainers. Two of them are on the same side from which the metal clip was removed. The other is on the opposite side. The third one is shown in the next step.

    • Slide the 12mm wrench over the retainer and push until you are able to remove the headlight.

  10. ikufqEfIdVvFOyVS
    ikufqEfIdVvFOyVS
    FFI3wSDe2yWmFZrL

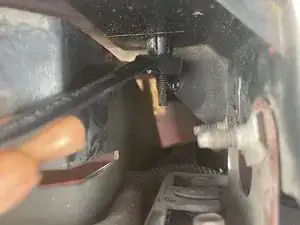

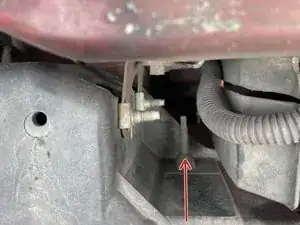

    • Third retainer. To push the retainers in so that I was able to remove the headlight I pressed the handle of the wrench against the metal part of the retainers and pushed.

  11. T6pgL25YuepMvcfl
    T6pgL25YuepMvcfl
    5J6RWOMdJTxM1W6K

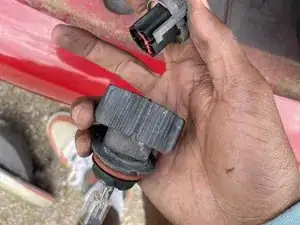

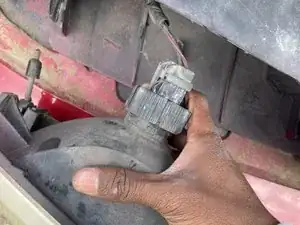

    • Similar to removing the turn signal, twist the headlight connector and remove the headlight from the bulb.

    • Disconnect the bulb from the connector by pulling the two apart and connect the new bulb. Attach the new bulb to the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
