1996-2000 Honda Civic Headlight Bulb Replacement

Geschrieben von: John F. Kennedy
  • Kommentare: 0
1996-2000 Honda Civic Headlight Bulb Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

25 Minuten

Einleitung

Whether your bulb is burned out or require an upgrade, learn how to replace the bulb in your 1996-2000 model year Honda Civic

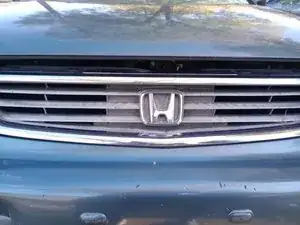

  1. IF23HK2go2uFncGq
    IF23HK2go2uFncGq
    6KOn2BKZDnoGNAqx
    WSBNCxjptQuEW4ls

    • Pop the hood via hood release latch by driver's side.

    • Reach for the latch under the hood and prop the hood up on the prop rod.

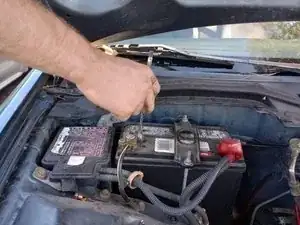

    • When working on any vehicle, always disconnect the negative terminal from the battery first. Often labeled on the cable or battery.

  2. FfTCDGJtf1hwoGKR
    FfTCDGJtf1hwoGKR
    4UKEKdYWyFY5mCZM

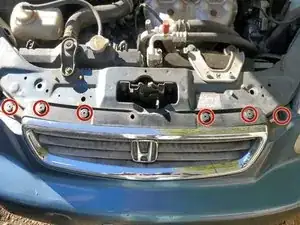

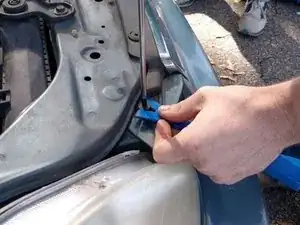

    • Remove the top bumper clips with the panel removal tool.

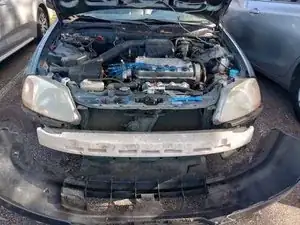

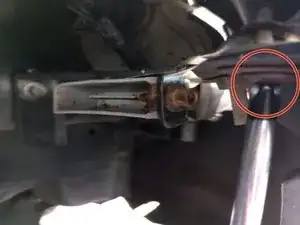

  3. lrTyy3uxjOHQECfs
    lrTyy3uxjOHQECfs
    gk25vYaCOtJcLykA

    • Remove the screw/10mm(depending on year) bolt holding the bumper on. This will be located in the front wheel well on the passenger and driver side.

    • Repeat this step for the other side of the vehicle and pull the bumper down carefully.

  4. CVJYSNSiuRhaXGWE
    CVJYSNSiuRhaXGWE
    xpRwHEUJ442WSbxc

    • Remove the two bolts visible on the top of the headlight.

    • Remove the hidden screw facing towards the grille towards the bottom of the headlight.

    • Remove the other hidden bolt on the wheel well side of the headlight, same area as in step 3.

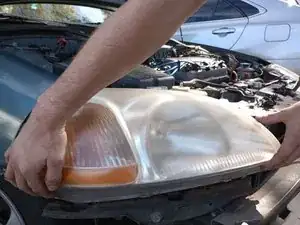

  5. AnZIHGOgLySvMges
    AnZIHGOgLySvMges
    xhksN4RMTiphONQP

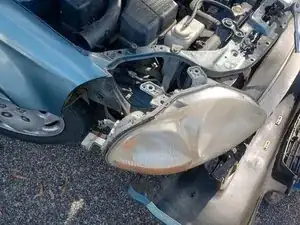

    • Pull the headlight assembly several inches outward.

    • Be careful not to yank on the wiring towards the rear of the headlight to prevent damage.

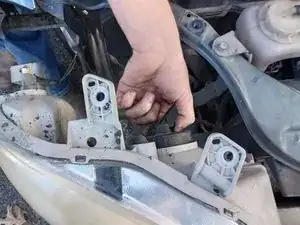

  6. lxYLr1YSmGBeRrQS

    • Remove the connector on top of the rubber boot by squeezing the clip and carefully wiggling loose.

    • You do not need to remove the other connector to the left.

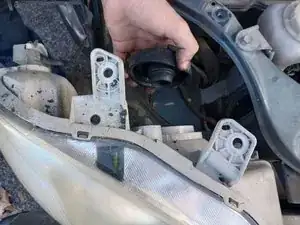

  7. WYNZsr4dHfsrT2BE
    WYNZsr4dHfsrT2BE
    A4LyNxjXWsMBYbEP

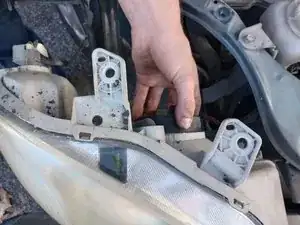

    • Remove the rubber boot surrounding the headlight bulb housing.

  8. vlEujW5GmsTNttFZ
    vlEujW5GmsTNttFZ
    YWuXiNmMCxjCrDn1

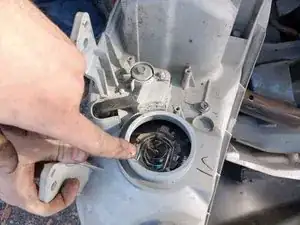

    • Push the retaining clip up releasing the headlight bulb.

  9. gEiil13hFTDe1K5Q

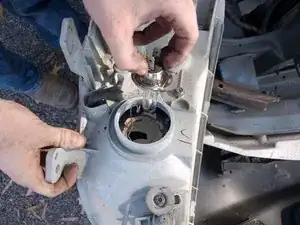

    • Carefully, pull the old bulb out of the headlight housing.

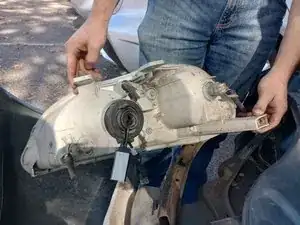

  10. ChrMltFQsGOYOQs1
    ChrMltFQsGOYOQs1
    dtQ5Kw4sXFC1qeMX
    WnOIhXlxE1BLsmrj

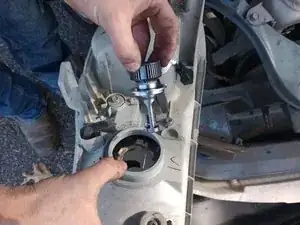

    • Insert the new LED Headlight in the housing and latch the new headlight.

    • If replacing with a standard halogen bulb, the same procedures apply.

    • Test your new headlight bulbs and make sure they function properly. If they do not work at first, try cleaning off the connection mating your new bulb and its connector.

Abschluss

To reassemble your components, follow these instructions in reverse order.
