1997-2006 Jeep Wrangler (TJ) Headlight Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

With enough time, any lightbulb will burn out, and headlights are no different.

This guide demonstrates how to change a headlight in a 1997-2006 Jeep Wrangler. As opposed to many vehicles, the entire headlight assembly for this model must be replaced, not just the bulb. This guide will aid in disassembly and reassembly of the external and internal headlight bracket.

This is a straight forward process, requiring basic tools and less than an hour of your time.

Ensure that your vehicle is turned off and the emergency brake is engaged before beginning the repair.

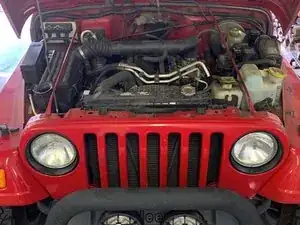

  1. QHTkAodilsVEAJmf

    • Unclasp and prop up the hood.

  2. EMosUCDmUqkGowyn

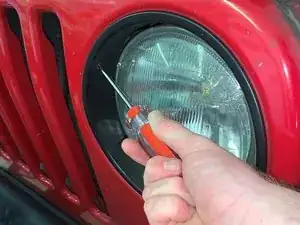

    • Remove the three 15.9 mm screws around the external ring casing with a Phillips #0 screwdriver.

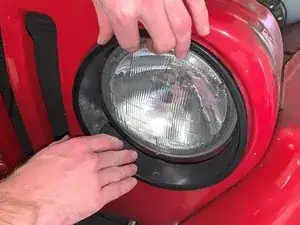

  3. GYNBSxh6uNYss6MK

    • Pull out the external ring casing.

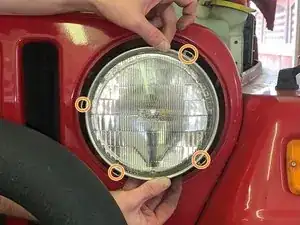

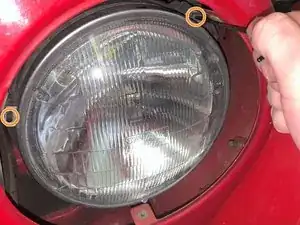

  4. G11FRK2mqx4YU2Ok
    G11FRK2mqx4YU2Ok
    5JeK3mqjrLPKXU13

    • Remove the four screws securing the internal ring casing with a T15 Torx screwdriver.

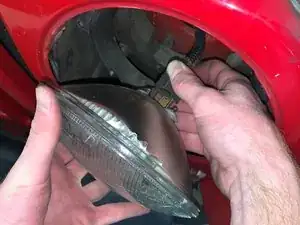

  5. tcVrPufIdAUbHP3v

    • Disconnect the headlight assembly from the vehicle by pulling the connector directly out of the back port.

  6. vfQWMjQDGNjvIBtw

    • Realign the internal bracket to match the screw holes.

  7. 5vZsBYtsdaof3VIk

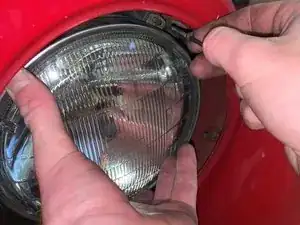

    • Reinstall the four screws securing the internal ring casing with a T15 Torx screwdriver.

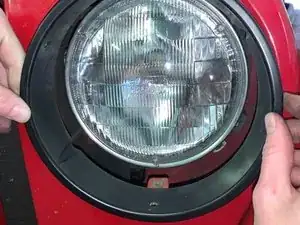

  8. C2rMhhn6IRHXqZfX

    • Realign the external bracket to match the screw holes.

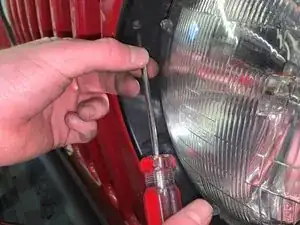

  9. u4KvEY2TPVIItwwa

    • Replace the three 15.9 mm screws using a Phillips #0 screwdriver.

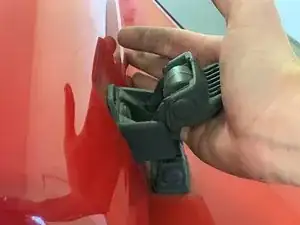

  10. RI3xOMkUNGB6FLrh

    • Close and clasp the hood back to its original position.

Abschluss

Enjoy your bright new headlight(s)!
