1997-2006 Jeep Wrangler Instrument Cluster Light Bulb Replacement

Geschrieben von: Mason
  • Kommentare: 1
1997-2006 Jeep Wrangler Instrument Cluster Light Bulb Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 30 Minuten

Einleitung

If you own an older vehicle you know that the factory light bulbs usually aren’t very bright. In this guide I will be showing you how to replace the tired old factory lights with brand new LED replacements that will help you see your dash better and give a new look to an old car. This guide is specific for a 2001 Jeep Wrangler TJ.

  1. AiKrIdnnwBeNE2qq

    • First a look at the original lights in the dash.

  2. aDxrWyL3FLvHGnYA
    aDxrWyL3FLvHGnYA
    3He3BkyxApAx3Eow
    mu12X3YiilhS5R2u

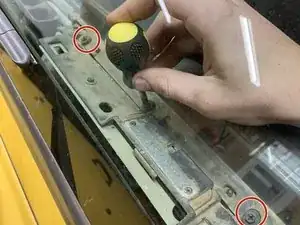

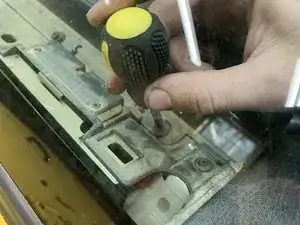

    • Remove the three screws along the top of the dash cluster.

    • There is a cover to gain access to the top two of four screws that hold the cluster in.

  3. GSNFkYrdZTVvONcv
    GSNFkYrdZTVvONcv
    GtUH6ikw6LBeBrWb
    CwmOrXWZnXEkKLUA

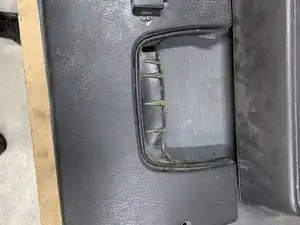

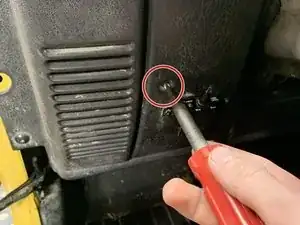

    • Remove the two screws that hold the second part of the dash cluster, then remove the dash cluster.

  4. FpKERRL5YWYetn1O
    FpKERRL5YWYetn1O
    ilBsDqeghdKkpguA
    hIegagqMBrnJdXZe

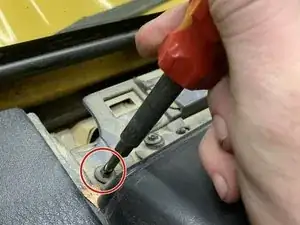

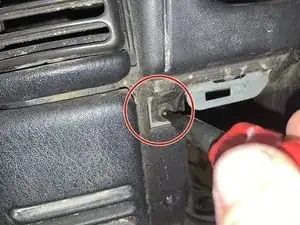

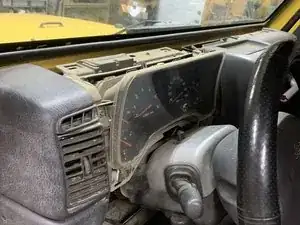

    • Now that all four screws holding the dash on are visible, remove them to allow the dash to come off.

  5. lol3Ig2eNVyGL3UA
    lol3Ig2eNVyGL3UA
    3FTdUkxQQapRCBdY
    HHrVpFRWH2WuVVRg

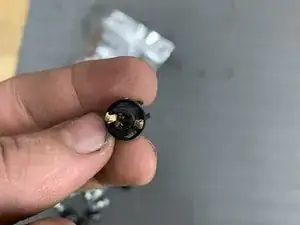

    • Assemble the new lights by pushing the butt end of the bulb down into the body until seated fully.

    • The bulbs are polarity sensitive so pay attention to the direction that you put them in.

    What is the bulb part number for LED?

    PRESTON YOUNG -

  6. y4Q5XgTLGLsmWfZL
    y4Q5XgTLGLsmWfZL
    SQ5SccahCrCpn4Um
    Cw2FgLUDF1aJN1Ms

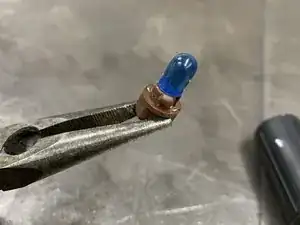

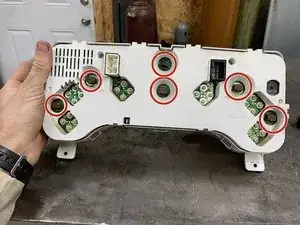

    • Remove the old light bulbs from the dash and replace them with the new ones. To do so simply twist the body of the light and it will pop right out. To install the new bulbs do the opposite. Push the body of the bulb flush with the mounting surface on the dash and then twist to hold it tight.

  7. MNWUq46hZLEPnfB2

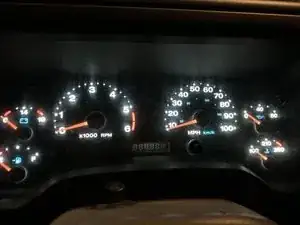

    • The final step is the reassembly. This is very easy as you simply repeat the steps taken to remove the dash but in opposite order. If upon reassembly you find some of the lights not working simply remove the bulb in question and switch the direction of the bulb in the body. That will fix the problem. As you can see the result is well worth it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
