Einleitung
A video about installing MP3 Player in BMW E39 http://www.youtube.com/watch?v=_6wg3qTvU....
Werkzeuge
-
-
Remove screws holding the CD changer in place (if equipped)
-

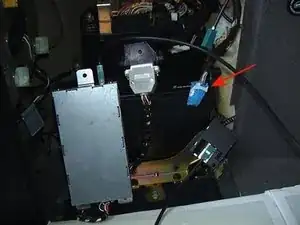

Disconnect BMW CD changer 3 pin power plug and 6 pin audio plug from CD changer.
-
Connect MP3 Player to original CD changer connectors
-
-
-
If using the 3 and 6 Pin connector version MP3 player, you will need to connect the unit to a switched power source in order to retain its last song played memory function.
-

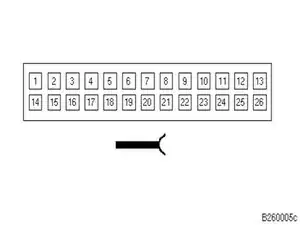

A good connection for BMWs built after Jan, 2000 production is the SES wiring plug, which is no longer used in cars that are equipped with the BMW Bluetooth system
-
Switched power is located on pin 24 Violet/White (or Violet/Red see image.
-
If you are also installing the DSP adapter module with your MP3 player you can connect the DSP module adapter to this pin in addition to using pin 14 brown/black for ground.
-
To reassemble your device, follow these instructions in reverse order.
