    • In the BMW E46 E38 E39 X5 Z4 X3 and Range Rover with the television module you can easily connect a reverse backup camera providing you with full backup camera function on your BMW Display

    • Car will need to be equipped with BMW TV video module. If not equipped you will need to retrofit BMW Television module. Google Search: retrofit bmw television module --- for available options

    • Backup Camera Automatic Switching Requires a reverse camera switching module kit, and a NTSC reverse camera mounted in any location desired.

    Who knows weer i can get this part

    I bought it at bimmernav

    But I only get the money back

    En get no parts

    I want my camera in my car

    But I can get the parts

    Please help

    Ralph de vries -

  2. YrTpCPmKE6E5iRyF
    YrTpCPmKE6E5iRyF
    GiCVuLVLLQBkD2sI
    DGSMAXAqXKX2Stx4

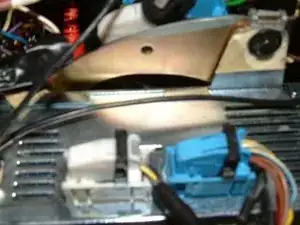

    • Connect Switching module BLUE wire into Pin 17 on the BLUE plug on your TV video module.

    • Slide the Black Locking lever to the side on your TV video module to release the Blue plug.

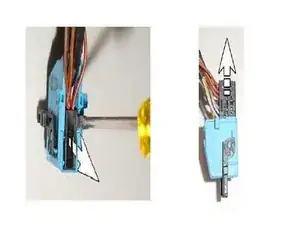

    • Remove the cover of the blue plug by gently lifting up on the cover locking tab with a small screw driver. Then slide the cover off

    • Insert the BLUE pin into the Pin location 17. If you look closely you will see the number 18 on the black part of the plug. Pin 17 would be the next pin location over

    • PLEASE NOTE: IF your camera switch module has an extra wire in the center marked 87a it is NOT connected anywhere. This extra wire, if present, is not used.

  3. AyRSxprZyGCZdPoK
    AyRSxprZyGCZdPoK
    by22JICQ6SUIJ2NB
    is4JaCEgKSB24jnd

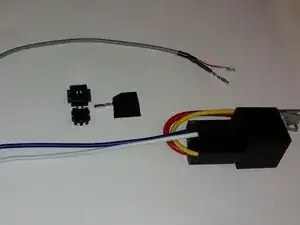

    • Connect the RCA connectors that come with the Reversing Camera Switching module to the white plug.

    • Remove the cover of the white plug as before.

    • Insert the Colored wire on the RCA Plug into the White plug Pin location 13

    • Insert the BLACK wire on the RCA Plug into the White plug Pin location 14

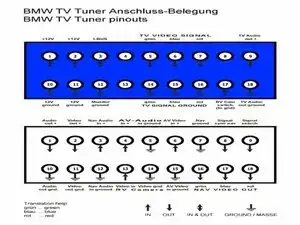

    • See wiring diagram for reference

  4. TKAxYlOZpwKrqqdX
    TKAxYlOZpwKrqqdX
    PL1GhwKlLqorJJ35

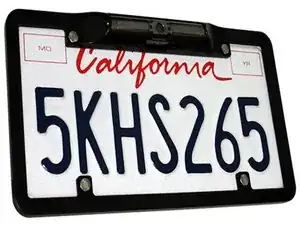

    • Install your Reversing Camera to the proper specifications of the Camera supplier.

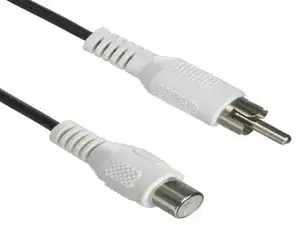

    • Connect the RCA Camera Output (MALE RCA) into the Reversing Camera Switching module RCA Video input cable (FEMALE RCA)

  5. CIlSLwN3q52PBWgs
    CIlSLwN3q52PBWgs
    XGPcobRGtEQPBXjm
    hXQtr3oK63MFZlG2

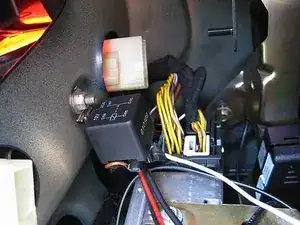

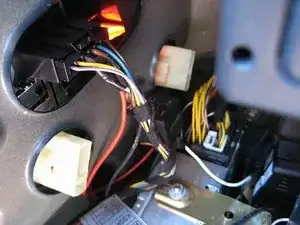

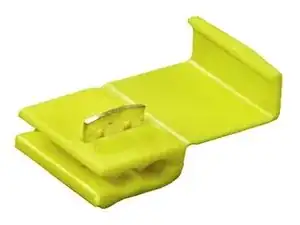

    • Connect the WHITE wire on the switching module to the Reverse lights wire using scotchlock provided with kit The Reverse light in BMWs is located on the tail light connection.

    • Reverse Light Wire is typically White/yellow but you will want to test to verify

    • Mount the Module to a ground point either on the chassis, or on the TV Video module mounting bracket directly. Relay MUST be connected to ground point such as chassis our mounting bracket to function

Abschluss

To reassemble your device, follow these instructions in reverse order.
