1999-2004 Jeep Grand Cherokee AC/Heater Fan Wire Connector Repair

Geschrieben von: William Schaller
  • Kommentare: 7
1999-2004 Jeep Grand Cherokee AC/Heater Fan Wire Connector Repair

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

The 1999-2004 Jeep Grand Cherokee has a common failure where the blower fan wire adapter overheats and melts. Use this guide to fix and repair this connector and get your AC and Heater working again!

  1. PHLnxP2SXuuj3JvI
    PHLnxP2SXuuj3JvI
    joFB6UlPJR5sJ3R1
    L2dcCWUJScbRFRs1

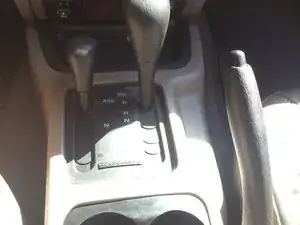

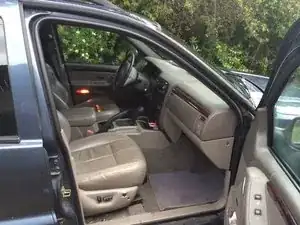

    • Place the vehicle in park, activate the parking brake, and leave the car running.

    • The blower motor is located under the dash on the passenger side of the vehicle.

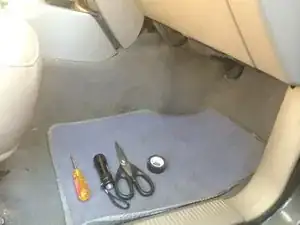

    • For easier access to the wiring push the seat back, and place your tools on the floor of the car .

  2. n6i5u2OWZBQ1HXdm
    n6i5u2OWZBQ1HXdm
    AEukDBP5Ld3rTL3m

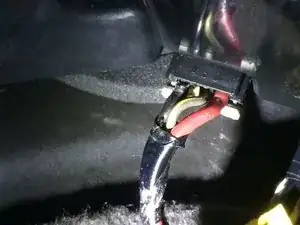

    • The blower motor adapter is a bundle of three wires located on the left side.

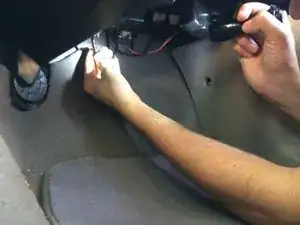

    • While the vehicle's ignition is on, push and pull gently on the wire connection.

    • If the blower motor turns on, you have identified the problem and following this guide will help you fix it

    • If the fan does not turn on, the damage may not be fixable without purchasing new parts.

    • For your safety do not grasp any wires you can not see. Do not attempt to grasp any wires that are not covered in insulation and/or electrical tape.

  3. CXfjigTF1HJcKbJ1
    CXfjigTF1HJcKbJ1
    5HUOuHSEbxM4tyfk
    AP4b1EKA3jKNs31h

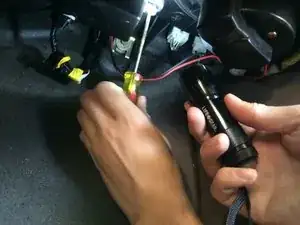

    • Turn off the ignition on the vehicle and proceed with the following steps.

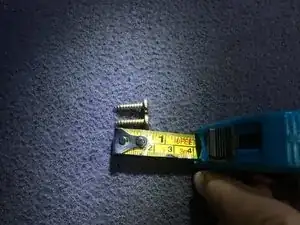

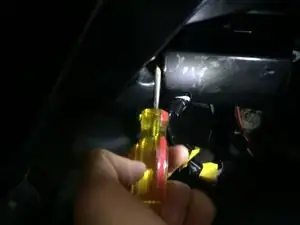

    • There are two screws holding the adapter in place. Using a Phillips head screwdriver, remove both screws in order to remove and gain access to the adapter.

    • The two screws are identical. Be careful not to lose them.

    • Be sure the car is completely off before unscrewing anything.

  4. IsKtWJS2sfNZPD3s
    IsKtWJS2sfNZPD3s
    2nGknWBLfGYveqER

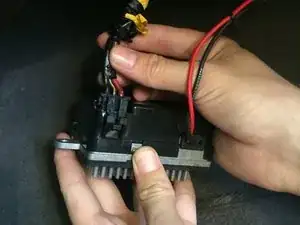

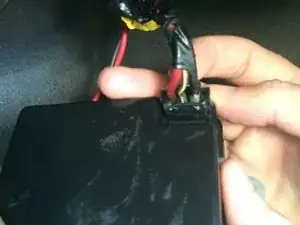

    • The fault typically occurs at the connection between the three wires and the adapter box.

    • Observe the damage and decide if electrical tape will be enough to hold the wires in place.

    • If so, using electrical tape, wrap the wires tightly until they are securely in place.

    • Replacement parts are available for purchase if the damage is beyond your repair capabilities.

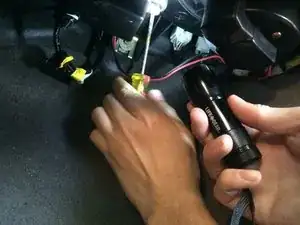

  5. 1kJBW1dMDa1HVeZE
    1kJBW1dMDa1HVeZE
    lIRCW3u3HHHc6IgK
    PmYkRb2RfLguOKcQ

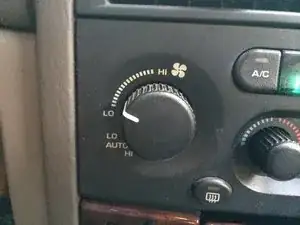

    • Screw the adapter back into place.

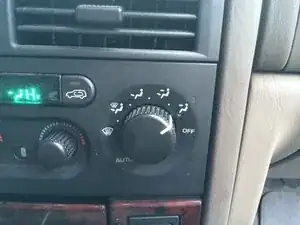

    • Turn on the car and test the AC/Heater to make sure it works.

    Hi l have replaced the blower motor resister and it still isn’t working. What do you recommend l do know?

    Brett -

    Check that you are getting power to resistor, if Not check Fan speed switch. If you are getting power to resistor, change blower motor. This would require a part or two & a test light but would answer question.

    L Mudfoot1234 -

Abschluss

Enjoy your working AC and Heater!
