Einleitung
This guide is to remove the headlamp. Left and right remove identical. This will have to be done to either change a light bulb or to remove the complete headlamp for exchange.
Werkzeuge
-
-
Here is the Jeep GC. Removal of the headlamp is identical for both sides.
-

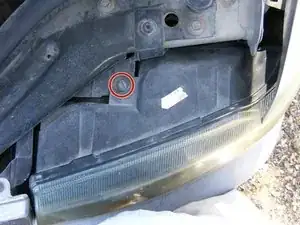

By opening the hood and looking straight down on the headlamp assembly, the 6mm hex head jack screw can be seen.
-

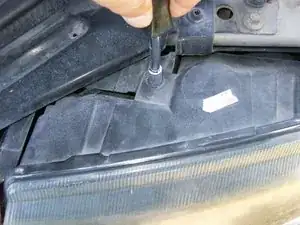

Use a 6mm socket and nut driver to remove the jack screw. 1/4 socket will not fit 9/32 does, but it is a bit sloppy
-
-
-

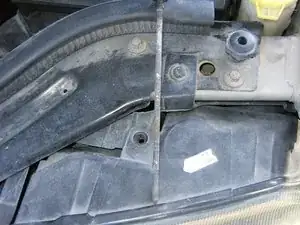

Remove the long jack screw.
-

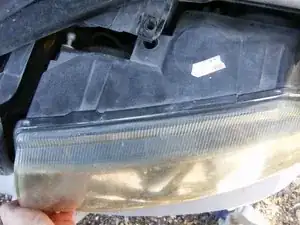

Grasp upper inboard and lower outboard corners of headlamp and forcefully pull headlamp outward.
-

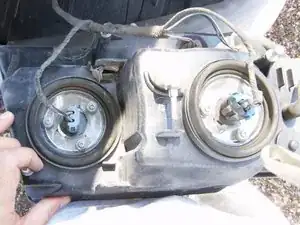

Remove all bulb sockets from headlamp module. Separate headlamp from vehicle.
-
To reassemble your device, follow these instructions in reverse order.
