1999-2004 Jeep Grand Cherokee Headlight Bulb Replacement

Geschrieben von: oldturkey03
  • Kommentare: 12
1999-2004 Jeep Grand Cherokee Headlight Bulb Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Here is a straight forward bulb replacement. Only requires the simplest of tools and is a quick fix.

  1. WnPWDDV1QZ42vQYD
    WnPWDDV1QZ42vQYD
    WUgMDhDuqWatFgKw
    SqHUIhDTfENvdGfD

    • Here is a 2000 Jeep Grand Cherokee with a burned out driver side headlight bulb.

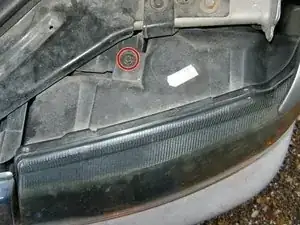

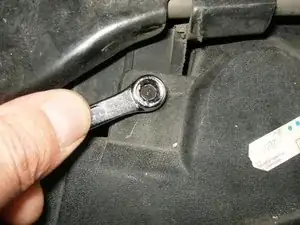

    • Open the hood. On top of the affected headlight assembly is a single 7mm hex bolt.

    • Remove the bolt

  2. JCUmf6CiyJVLlaQu
    JCUmf6CiyJVLlaQu
    PJudCUhRfHquVtgd
    UBZSEtjZZt5vftiy

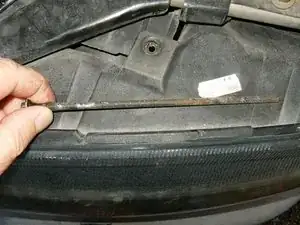

    • Remove the bolt. It is approximately 6 inches long.

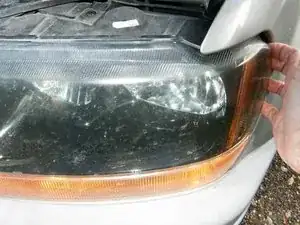

    • Grab the headlight assembly on the fender side,

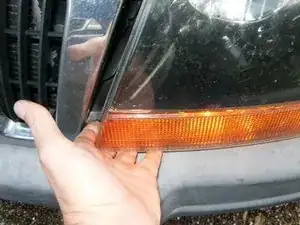

    • as well as the grill side.

  3. mshfCQVQwE4vtAXZ
    mshfCQVQwE4vtAXZ
    agrPYkNNEqG5yMSv
    HZLkyAeCreuN4gXj

    • Then pull the assembly straight out

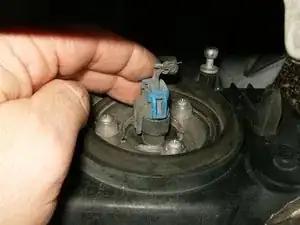

    • The light bulbs will now be accessible.

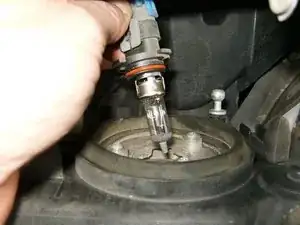

    • Remove the bulb by twisting it in a counter clockwise direction, then pulling it out of the headlight assembly.

  4. dcIRLLFghGrBMohI
    dcIRLLFghGrBMohI
    XTbpTZl2HYiAPy5u

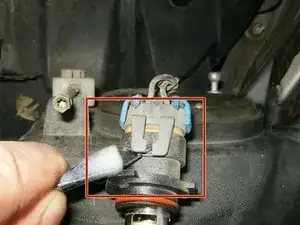

    • Use a flathead screwdriver (or similar tool) to lift the socket clip of the tab on the bulb and remove the bulb.

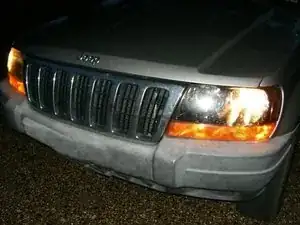

    • Change the bulb and the result will be fully functional headlights.

    What if the hex bolts won't come out? I think someone got to them before me and stripped them.

    Michael Goodwin -

Abschluss

To reassemble your headlight, follow these instructions in reverse order.
