Replace a dirty engine air filter to make your car happy.

  1. 3vVg1wynktbwDktG
    3vVg1wynktbwDktG
    fOSZhBStACUrHMkO

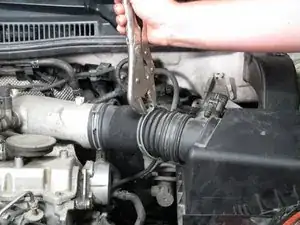

    • Using a vise grip, grip the metal ring securing the intake tube to the air filter cover.

    • Slide the ring up the tube.

  2. oOWSSyrhalDsnTSr
    oOWSSyrhalDsnTSr
    lEoCR23LQ1KM3QcF

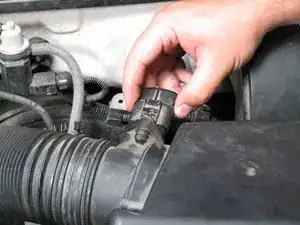

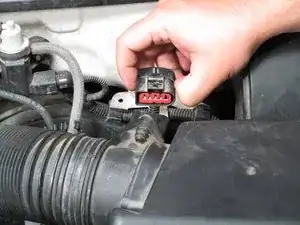

    • Unplug the cable from the air filter.

  3. jwel3l5A4AJm3aQE
    • Pull the intake tube off of the air filter cover.

  4. 6dxW6TvmOQyUnXRj

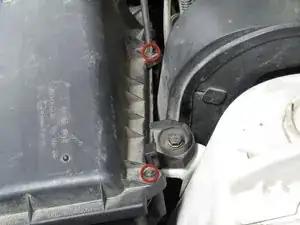

    • Unscrew two Phillips screws located behind the air filter.

  5. wbGJhGQFvwQa13eh

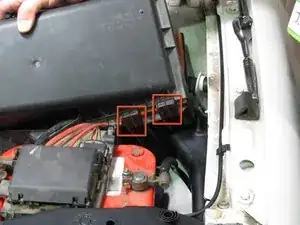

    • Lift the air filter cover up, starting from the back end, making sure to release them from the hinges on the front end.

  6. VVMTKdopexg4aRGX

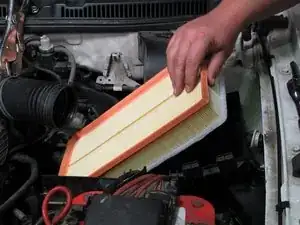

    • Remove the air filter.

Abschluss

To reassemble your device, follow these instructions in reverse order.
