Einleitung

Change the coolant in your '99 to '02 SV650. Use pure coolant for superior heat protection, anti-freeze mixtures to help with cold conditions, or diluted coolants or pure water for use on race tracks.

  1. XXXfDjONCecZeMHT
    XXXfDjONCecZeMHT
    WKf4ChXvwh5mmRbD

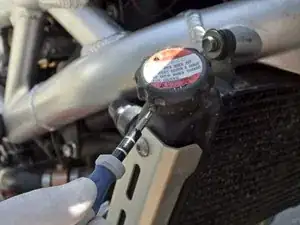

    • Remove the radiator cap security screw with a Phillips #1 screw driver by turning it counter-clockwise.

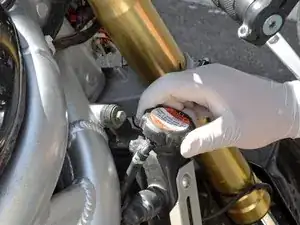

    • Remove the radiator cap by pressing down on it and turning it counter-clockwise until it can be lifted off the radiator.

    • If your engine has been running recently, be very careful. The system may be pressurized and hot which will cause coolant to flow out through the radiator cap hole when it is removed.

  2. cXF4RQZNBI4nopww
    cXF4RQZNBI4nopww
    NQQESEqZi3fmxTYC
    RMrLNQ4VrvdF5ZPX

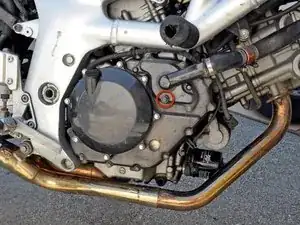

    • Locate the 10 mm hex coolant drain plug. It is on the right engine cover, just below the coolant outlet.

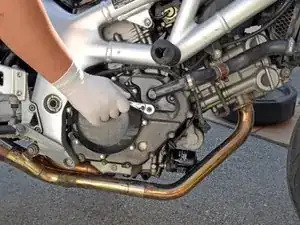

    • Turn the coolant drain plug counter-clockwise with a 10 mm socket wrench or box end wrench until it can be turned freely by hand.

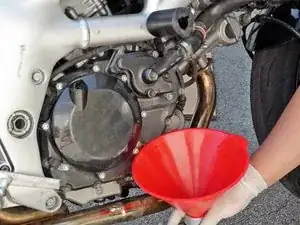

    • Place a container under the drain plug to catch the coolant when it comes streaming out of the coolant drain hole.

    • If you are not using a pan style container, it is recommended that you use a funnel to help prevent spills.

  3. fCMngAceeT6uEekS
    fCMngAceeT6uEekS
    Tnh1TVxBHLbQpLxK

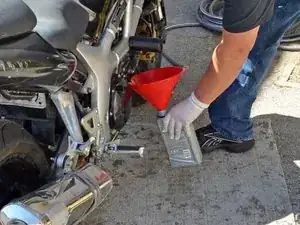

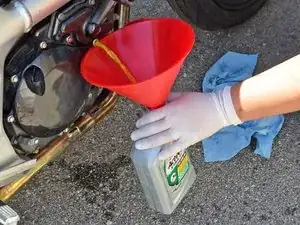

    • Finish removing the drain plug by hand and allow the coolant to drain into the container.

    • When draining has slowed to a drip, stand the bike up vertically to allow the last of the coolant to drain.

  4. wjCsA1SQQXrQrDsl
    wjCsA1SQQXrQrDsl
    GVK55LvX3VF5Ot1n
    SRoIkHQd4wq3rViI

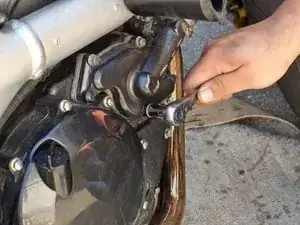

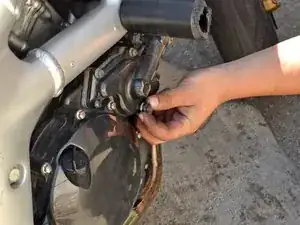

    • Put the coolant drain plug back in its hole and turn it clockwise with a socket wrench or box end wrench until it is snug.

    • Do not over-tighten the drain plug or you run the risk of stripping the threads. Suzuki rates the drain plug torque at 9.5 lb-ft (13 N-m).

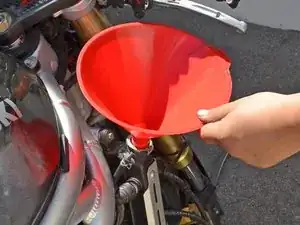

    • Insert a funnel into the radiator filler hole.

    my 2000 SV only took slightly more (1 qt. 2 oz) of coolant after I drained it.

    Sioux Harris -

  5. IpmUWqGg6Miev2JR
    IpmUWqGg6Miev2JR
    alD2RHkVUnQHyTwB
    XYNa3qQ5KpyH2Yf4

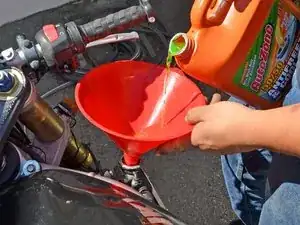

    • Pour approximately 1.7 quarts of coolant into the radiator, or fill until you can see coolant near the filler neck. Use one hand to stabilize the funnel to prevent spills.

    • Towards the end of refilling the cooling system, take short breaks in filling to allow air bubbles to work their way out of the system. You can turn the engine on for a couple seconds to help pull coolant through the system.

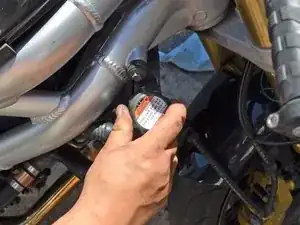

    • Remove the funnel and place the radiator cap back over the radiator filler hole. Press down on the cap and turn it clockwise until it is snug.

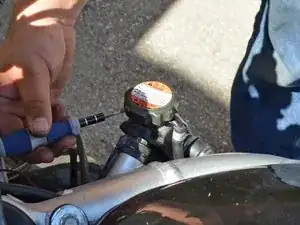

    • Insert and turn the radiator cap security screw clockwise until it is snug.

    • Dispose of your old coolant properly by taking it to a shop that accepts coolant or a dump that excepts hazardous waste.
