Einleitung

PRE-REQ ONLY

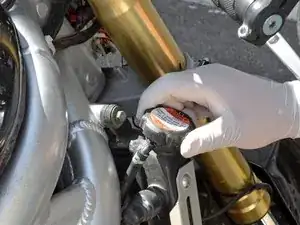

  1. h6WvjCOlG1ZGFqoj
    h6WvjCOlG1ZGFqoj
    RIapGM1SwhJQtSHW
    • Remove the radiator cap security screw with a Phillips #1 screw driver by turning it counter-clockwise.

    • Remove the radiator cap by pressing down on it and turning it counter-clockwise until it can be lifted off the radiator.

    • If your engine has been running recently, be very careful. The system may be pressurized and hot which will cause coolant to flow out through the radiator filler hole when the cap is removed.

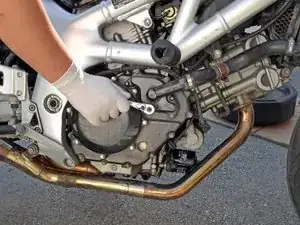

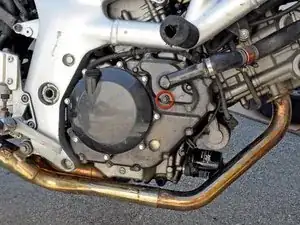

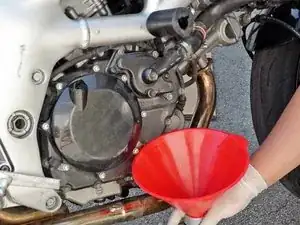

  2. YVdWL35nFKLQWI4S
    YVdWL35nFKLQWI4S
    GlybAItN63kSTkc5
    QvFqhPk1KLnfUybA
    • Locate the 10 mm hex coolant drain plug. It is on the right engine cover, just below the coolant outlet.

    • Turn the coolant drain plug counter-clockwise with a 10 mm socket wrench or box end wrench until it can be turned freely by hand.

    • Place a container under the drain plug to catch the coolant when it streams out of the coolant drain hole.

    • Coolant capacity is 1.7L, ensure your container can accommodate this.

    • If you are not using a pan style container, it is recommended that you use a funnel to help prevent spills.

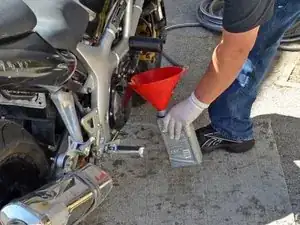

  3. AvmHuovnpfWLwwKL
    AvmHuovnpfWLwwKL
    tZKyZMyRySKVOnFw
    • Finish removing the drain plug by hand and allow the coolant to drain into the container.

    • Once the draining coolant has slowed to a drip, stand the bike up vertically to allow the last of it to drain.

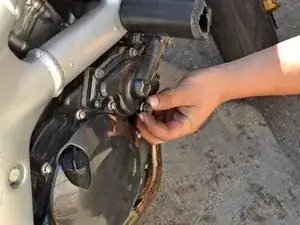

  4. 5RobhRq53JQmGSPh
    5RobhRq53JQmGSPh
    OkNaRtdQANfXXva3
    HF4wvoe2ysKDbg2K

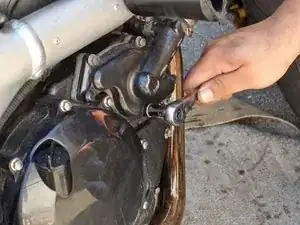

    • Put the coolant drain plug back in its hole and turn it clockwise with a socket wrench or box end wrench until it is snug.

    • Do not over-tighten the drain plug or you risk stripping the threads. Suzuki rates the drain plug torque at 9.5 lb-ft (13 N-m).

    • Place the radiator cap back over the filler hole and turn it clockwise until is snug.

    • Placing the radiator cap back on the radiator will prevent debris from entering the radiator while working on the bike.

Abschluss

To reassemble your device, follow these instructions in reverse order.
