Einleitung
If you have a headlight out in your car, it should be changed as soon as possible. Headlights go out after many years of use or an electrical shortage within the car. This guide pertains to a first generation Ford Escape, years 2001-2007. Upon completion of this guide you will have one or two brand new headlights for your car.
Headlights are an essential item in every car that enable the operator to see at night and in dangerous weather. Always make sure to handle glass bulbs carefully to avoid injury. It is best not to touch the bulbs with your bare hands as the oils will damage the bulb and cause the bulb to fail. Before beginning, make sure to turn off the car, turn on the emergency break, and stand clear of any road hazards.
Ersatzteile
-
-

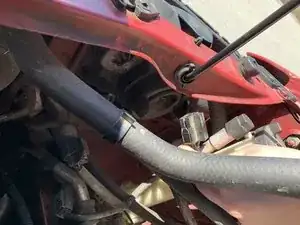

Release the hood latch located under the dashboard on the driver side of the vehicle.
-
You will hear a pop sound once the hood is properly detached.
-
-
-
Push in on the sides of the bulb plug and pull directly out. It may take a bit of wiggling and effort to remove the plug.
-
-
-

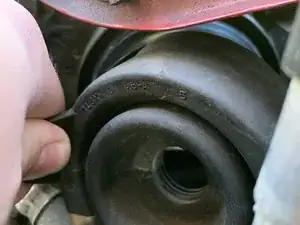

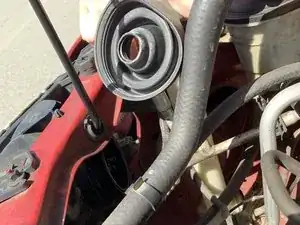

Remove the rubber boot surrounding the housing. It will peel off when pulling the tabs to the side.
-
-
-

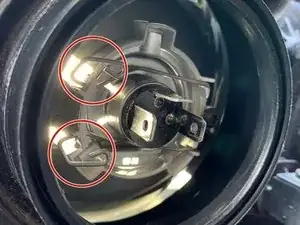

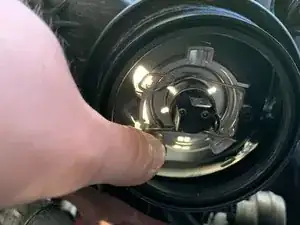

Unlatch the bulb retention clip by pushing in on the two circle pins and pushing them apart.
-
-
-

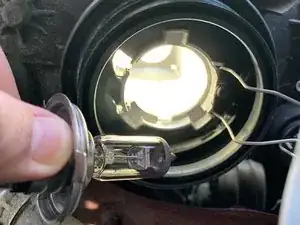

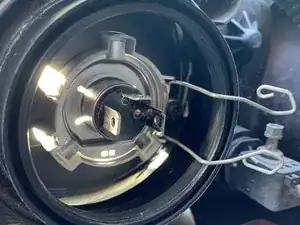

Remove the bulb by pulling it directly out of the housing. Once the bar is out of the way, the bulb isn't held onto by any remaining parts.
-
-
-
Line the new bulb along the housing and set it in place. Clip the bar back down into it's original position from step 4 to secure it in place.
-
To reassemble your device, follow these instructions in reverse order. Both the driver side and passenger side follow the same procedure.
