2002-2007 Jeep Liberty Rear Indicator Light Replacement

Geschrieben von: Madison Brown
  • Kommentare: 0
2002-2007 Jeep Liberty Rear Indicator Light Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

The rear indicator light of a vehicle communicates the driver’s intention to turn or change lanes. However, indicator light bulbs go out after years of use. Driving with a broken indicator light bulb is dangerous and often illegal. This guide will help you replace the rear indicator light bulb of a 2002-2007 Jeep Liberty.

  1. WmOwtXUN5P4Cu6g1

    • Open the vehicle's rear door to access the tail light assembly.

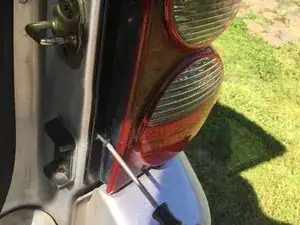

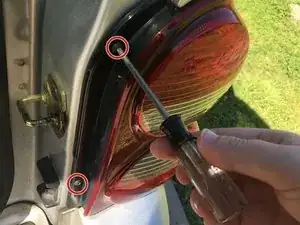

  2. CfJdyA5XrZY25bbg
    CfJdyA5XrZY25bbg
    JpHCS6NlAfAkOpTV

    • Use the T-20 Torx screwdriver to unscrew the two screws holding the tail light cover.

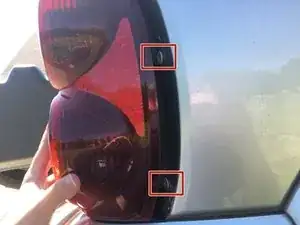

  3. warYkTRfBTamlGxC
    warYkTRfBTamlGxC
    gXyBsq2dWmnneXMN

    • Remove cover by pulling out and away from car.

    • The cover is fastened with two plastic alignment pins.

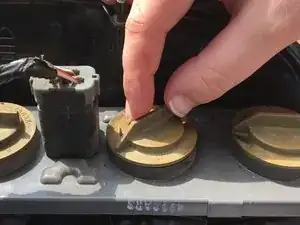

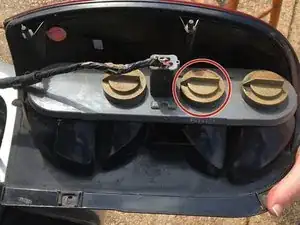

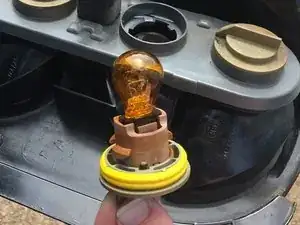

  4. iWPWLCSCTRSXylGL
    iWPWLCSCTRSXylGL
    HQj5NXNq1PZJewQo
    YVrJO5STZ2OQ4b6M

    • Twist the middle socket counter-clockwise.

    • Pull the socket out of the tail light assembly to access bulb.

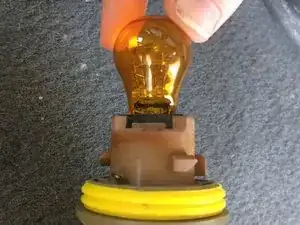

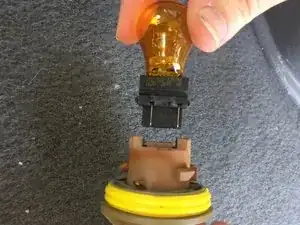

  5. uEqhBYrTtFCO4FOC
    uEqhBYrTtFCO4FOC
    uilyumtCQCuiXG3Z

    • Grasp the lightbulb and pull it out of the socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
