2002 Toyota Tacoma Headlight Bulb Replacement

Geschrieben von: Drake Fenwick
  • Kommentare: 1
2002 Toyota Tacoma Headlight Bulb Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

It is very easy to remove and replace your headlights in your 2002 Toyota Tacoma. You can save a lot of time by replacing the bulb yourself. The replacement is a H4 9003 bulb. The process is easy and requires no tools to get the job done.

  1. Qiv5jFQJ6OJLhJSd

    • Pull the lever under the steering wheel.

  2. wFtHlGUWt1U5jCHI
    wFtHlGUWt1U5jCHI
    VNtKsPIHaReDCuMI

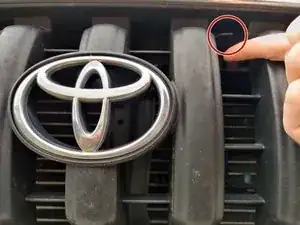

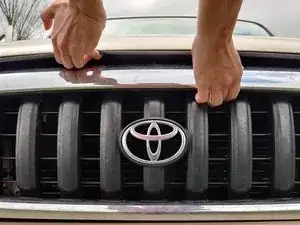

    • Pull up on the lever under the hood.

    • At the same time, lift the hood of the car.

  3. EPRSkvg5GCu2s1Q4
    EPRSkvg5GCu2s1Q4
    MQyBnPTmUYD2fSjN

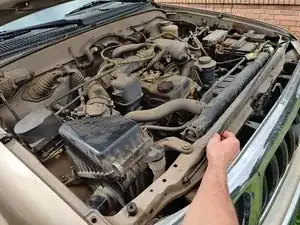

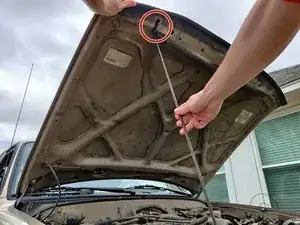

    • Remove the metal rod.

    • Insert the metal rod to hold the hood in place.

  4. ZAC3efOvQqtAJILq
    ZAC3efOvQqtAJILq
    BF2CaPEEFnKXBJPs

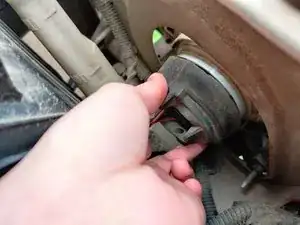

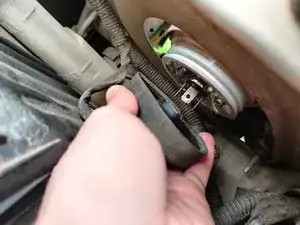

    • Pinch the rubber cover and disconnect the headlight bulb.

  5. xZQu44N66D2SBTfY

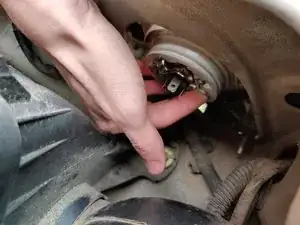

    • Push down on the metal lever to release it. After you have released the lever you can remove the bulb.

  6. BTSFR3N2PXXq2SH3

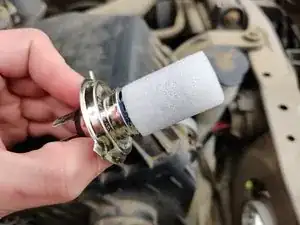

    • Remove the headlight bulb cover when you are ready to install it.

    • Do not touch the bulb or let it touch anything to prevent it from getting damaged.

Abschluss

To reassemble your device, follow steps 3-5 in reverse order. At the end of step 3 make sure to push down on the hood to lock it back into place.
