2004-2008 Mazda RX-8 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This replacement guide will teach you how to how to replace the battery, safely, in a few easy steps.

  1. KrOibP4cSYIV2Mh4
    KrOibP4cSYIV2Mh4
    5etjZRi5mMCmQsSO
    X3IwITUZtjYMTkK3

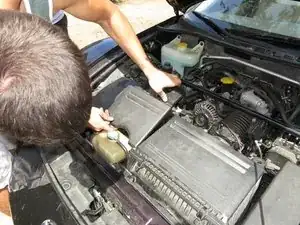

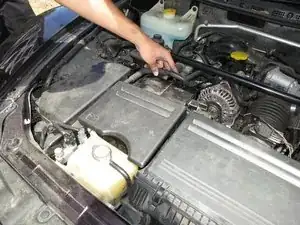

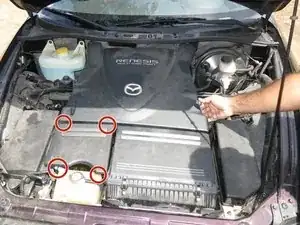

    • Find black tabs that lock Battery cover into place.

    • The tabs should snap off easily.

  2. TNXTaj5l6UoYswA2
    TNXTaj5l6UoYswA2
    JVOYxdEBIXRTaB24

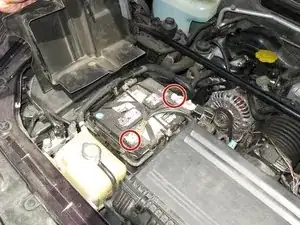

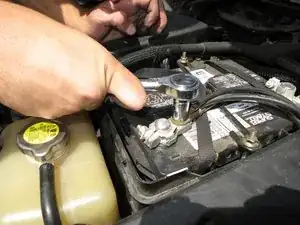

    • Use the 10 mm wrench to disconnect the negative battery terminal, followed by the positive terminal.

    • It is vital to disconnect the negative terminal before interacting with the battery. Make sure not to bridge the two terminals with your wrench or other tools.

    • Remove the terminals once nuts are completely loose.

  3. UbU6vnRJ2O2LbXEC

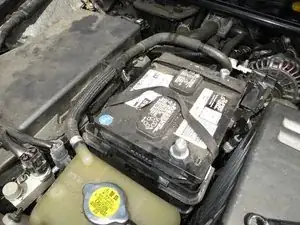

    • Remove Battery terminals.

  4. Ng2tknkmEUZT3cjX

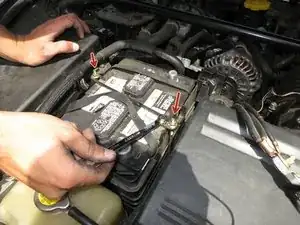

    • Using the 10mm Wrench remove gold nuts that hold the retention bar in place.

  5. dOVwXWYsLKBmTjAP

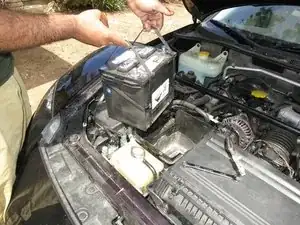

    • After removing the bar pull the dead battery out using the black straps.

Abschluss

After replacing the device, follow these instructions in reverse order to secure a new battery in its place.
