2004-2008 Mazda RX-8 Fuse Replacement

Geschrieben von: Michael Wolfe
  • Kommentare: 0
2004-2008 Mazda RX-8 Fuse Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Werkzeuge

Ersatzteile

  1. xVvXqN3cE36QGHTR

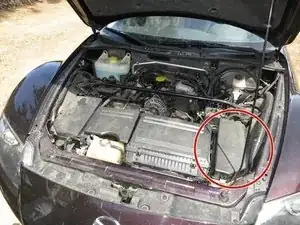

    • Locate the fuse box holder near the driver's side headlight.

    • Remove the cover by lifting the black tabs on the sides.

  2. AIjMSYlrhfSFo1FK
    AIjMSYlrhfSFo1FK
    31CntorEwFmFa1Wd

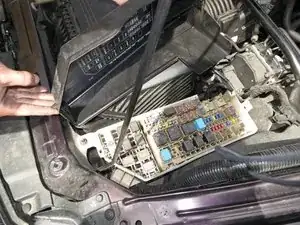

    • Remove the cover.

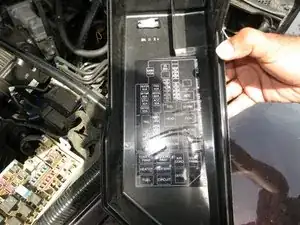

    • There will be a fuse map on the underside of the cover.

  3. EtlEct1WdoohanQp
    EtlEct1WdoohanQp
    5C6QaU3wvGYkBxi2
    n3X1fNCWlrwr4QcC

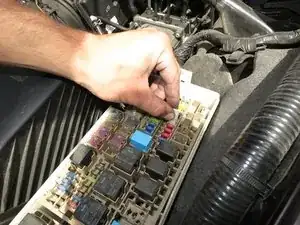

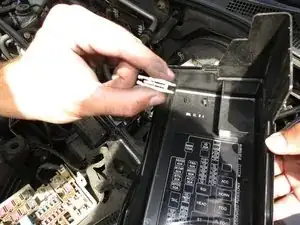

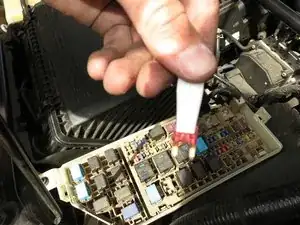

    • Use the tool that is inside the fuse box to remove the necessary fuse.

    • Use the fuse guide on the inside of the fuse cover, along with the nature of the electrical problem to help quickly find the faulty fuse

  4. wOalIWNP4DJBnbEo
    wOalIWNP4DJBnbEo
    UVpyGCpSFAHpJ4qH

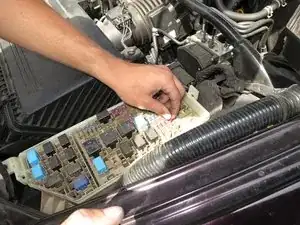

    • Replace the bad fuse with a new one.

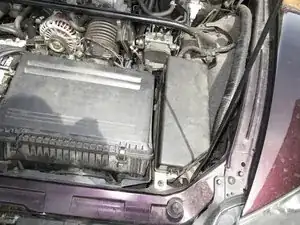

    • Put the fuse box cover back on and secure the tabs on the side.
