2005-2007 Ford Focus Front Brake Rotors Replacement

Geschrieben von: David Hodson

Kommentare: 13

2005-2007 Ford Focus Front Brake Rotors Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

The steps in this guide are used to replace the brake rotors on all Focus models in the 2005-2007 generation, except for the ST model, which has slightly different brakes. Caution should be exercised when working with brake and suspension components, and proper safety goggles should be worn at all times.

Whenever working on your car's brakes and suspension, work on one side at a time. Keep the other side completely assembled so that you can reference it at any time.

This guide includes steps to replace the brake pads, in addition to the rotors. It is strongly suggested that brake rotors are not replaced by themselves. Never drive a car if the brakes on one side only are changed, because the car will "pull" to one side.

Werkzeuge

Schritt 1

Put the car in park (automatic) or neutral (manual).
Apply the parking brake.
Place chocks behind the rear wheels.

Schritt 2

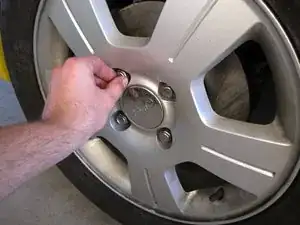

Use a 19 mm lug wrench to loosen each lug nut a half turn.

Schritt 3

Use a hydraulic jack on the car's frame to jack the car.
A small notch shows where to place the jack.
It is only necessary to jack the car until the wheel no longer touches the ground.

Schritt 4

Place a jack stand on the frame and remove the jack.
Never work on or underneath a car that is only supported by a jack. The car may fall, causing serious injury, or even death.

Schritt 5

Use a lug wrench to completely remove the four lug nuts.
Remove the wheel.

Schritt 6

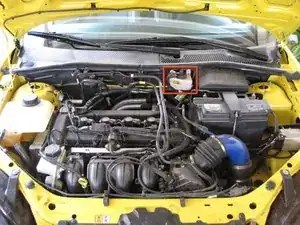

The brake fluid reservoir is located towards the back of the engine compartment.
Unscrew the cap and remove it.
Be careful when handling brake fluid. Wash hands immediately if they come in contact with it. Do not let the fluid touch any painted parts; it will strip the paint.

Schritt 7

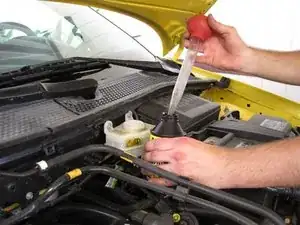

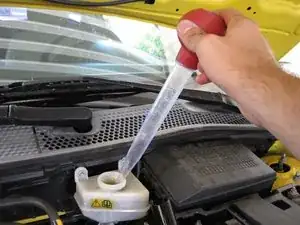

Use a turkey baster to remove 2-3 ounces of brake fluid from the reservoir.
Never let the fluid level drop below the minimum mark. This will let air into your lines, which will require bleeding to remove.
Properly dispose of old brake fluid. Do not reuse it.

Schritt 8

Use a flat head screwdriver or brake spoon to remove the outer pad retaining clip.
The clip has a lot of spring energy. Hold onto it with a pair of pliers when removing it to keep it from flying off and injuring someone.

Schritt 9

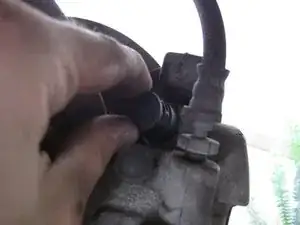

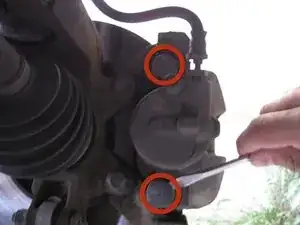

Use a flat head screwdriver to remove the black plastic guide bolt dust caps.

Schritt 10

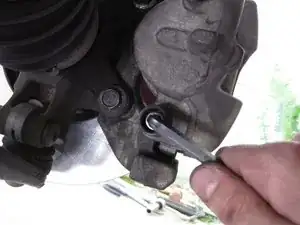

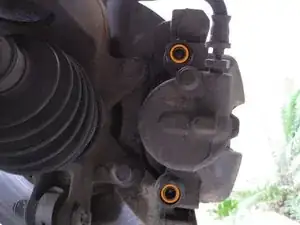

Use a 7 mm Allen wrench to remove the two caliper guide bolts.

Schritt 11

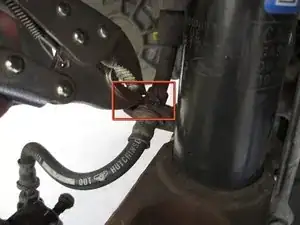

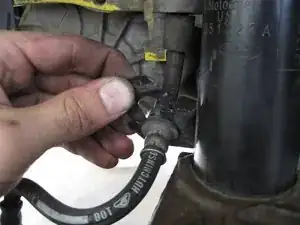

Remove the clip that holds the brake line to the strut with a pair of vise grips.
Pull the brake line towards you and out of the bracket.

Schritt 12

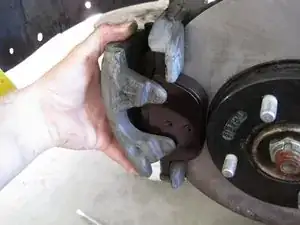

Pull the caliper off of the rotor.

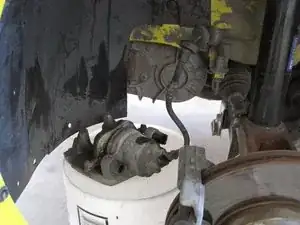

Place the caliper on top of a box or bucket so the brake line doesn't stretch or kink.

Schritt 13

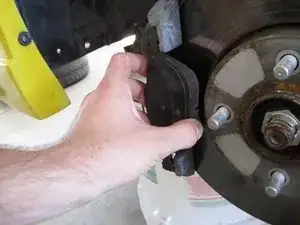

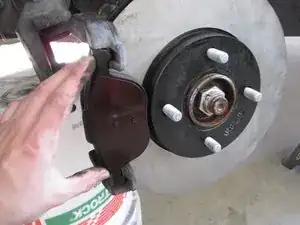

Pull the outer brake pad from the mounting bracket.

Schritt 14

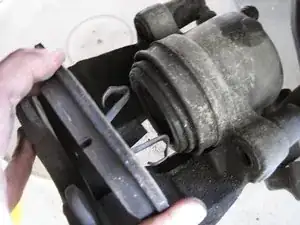

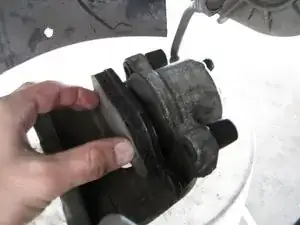

Remove the inner brake pad from the caliper.
The pad is held in place by three metal clips. It may take some force and wiggling to free the pad.

Schritt 15

This step is only necessary if you are replacing the guide bolt bushings.

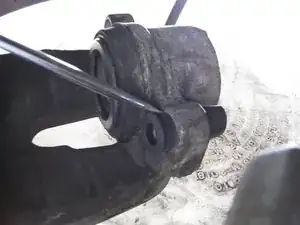

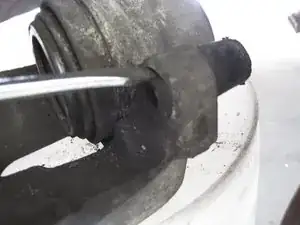

Use a flat head screwdriver to push the bushing through its hole in the caliper.
Remove the bushing from the caliper.

Schritt 16

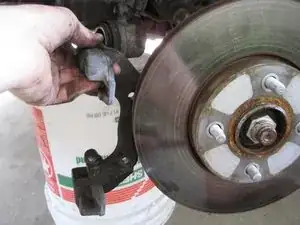

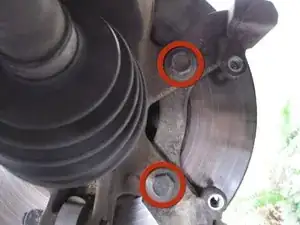

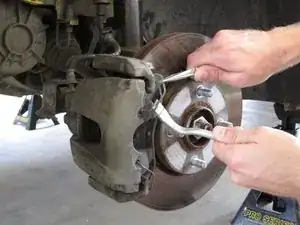

Remove the two 15 mm mounting bracket bolts.
Lift the mounting bracket off the rotor.

Initially this guide had the torque spec listed at 133 lbft... that is NOT the case... The service manual states 133 Nm, which is actually 98 lbft... I found out AFTER I snapped one of the 4 caliper bracket bolts and stripped another one... Good guide otherwise

ggg -

Thank u , informative guide, this will certainly help me.

jmhinge - 25/10/15

Schritt 17

Remove the brake rotor by pulling it straight off the lugs.
If the rotor is to be reused, it is a good idea to take it to a shop to check that it is not out of round and to have it turned.

Schritt 18

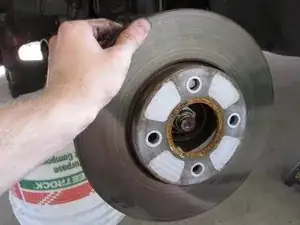

Install the new rotor over the wheel lugs.

Schritt 19

Reinstall the mounting bracket.
Grease the mounting bracket bolts and install them.
Mounting bracket bolts should be tightened to 98 ft-lbs.

I believe the correct torque spec is actually 98 ft * lbs, 133 N * m:

http://www.justanswer.com/ford/6xtve-for...

Ben Li - 13/04/17

Schritt 20

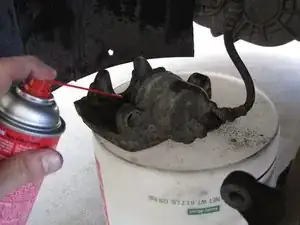

Clean the rotor, caliper, and all other hardware with an aerosol brake cleaner.
Never use compressed air to clean brake components. Brakes contain asbestos, and blowing the particles into the air could cause serious respiratory problems if inhaled.

Schritt 21

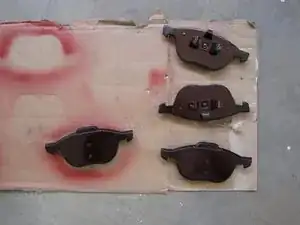

Coat the steel backing plates of the new brake pads with an anti-squeal coating.

Schritt 22

Place the new outer pad on the mounting bracket.
Small particles are a common cause of brake noise. Make sure pad and rotor surfaces are clean of all dirt and debris before installing.

Schritt 23

This step is only necessary if the guide bolt bushings were removed.

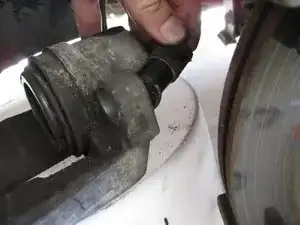

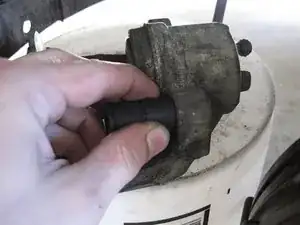

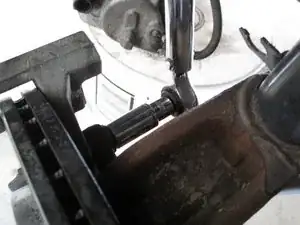

Insert the new bushing from the inside of the caliper.
Use a flat head screwdriver to help feed the bushing through its hole.

Schritt 24

Compress the caliper piston with a C-clamp.
Continually check the fluid level in the brake fluid reservoir to make sure it doesn't exceed the maximum level.
Install the new inner pad by pressing it into the caliper and making sure the clips are secure.

Schritt 25

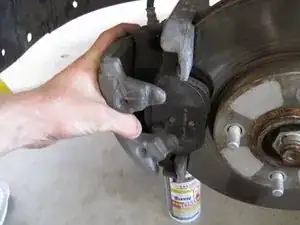

Place the caliper back on the rotor.

Schritt 26

Grease the two guide bolts and reinstall them.
Guide bolts should be torqued to 21 foot-pounds.
Reinstall the guide bolt dust caps.

Schritt 27

Place the brake line back in the bracket on the strut.
Secure the brake line with the retaining clip. Use the blunt end of a wrench to knock it completely into place.

Schritt 28

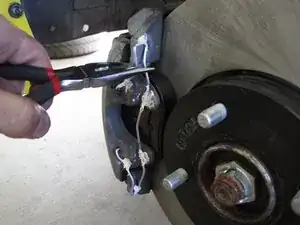

Reinstall the retainer clip by first inserting the ends into the two holes in the caliper, then use pliers to stretch the ends onto the mounting bracket.
It is always a good idea to use white lithium grease wherever you have metal-on-metal contact.

Schritt 29

Put the wheel back on the car and hand tighten the lug nuts.
Lower the car and completely tighten the lug nuts
Lug nuts should torqued to 94 foot-pounds.

Schritt 30

Place the cap back on the brake fluid reservoir.
Turn the key to the "on" position. Press the brake pedal a few times. It should go to the floor once, and then become firm.
Fill the brake fluid reservoir with new fluid, if needed.
