2005-2007 Ford Focus Spark Plugs Replacement

Geschrieben von: David Hodson
  • Kommentare: 15
2005-2007 Ford Focus Spark Plugs Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

The following guide outlines the procedure for replacing the spark plugs in the 2.0 and 2.3 liter Duratec engines found in 2004-2007 Focus models. Replacement for OEM spark plugs is suggested every 60,000 miles.

For spark plugs that have an adjustable gap between the electrodes, the suggested gap is 0.050". OEM Motorcraft double platinum spark plugs, which are used in this guide, come pre-gapped and cannot be altered.

  1. E2ecqktIDmRxETvR

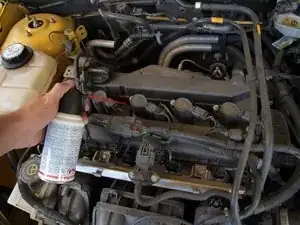

    • Use compressed air to clear any debris from the area around the ignition coils on top of the engine.

    • Any particles that fall into the ignition cylinder could cause serious engine damage.

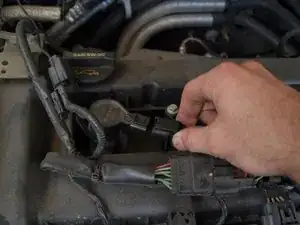

  2. EfcWNKxUZ4NUJCf3
    EfcWNKxUZ4NUJCf3
    FRjM5AwqK5YDSu6A
    MgAksgnfEia1b4oB

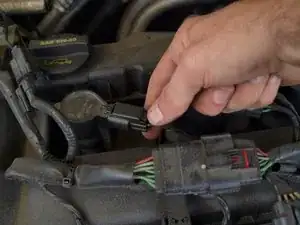

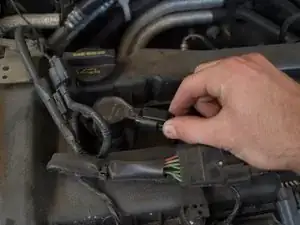

    • Remove the ignition coil electrical connector by first depressing the plastic tab on top of the connector.

    • Pull the connector straight away from the ignition coil to detach it.

    • Repeat this procedure for the remaining three ignition coils.

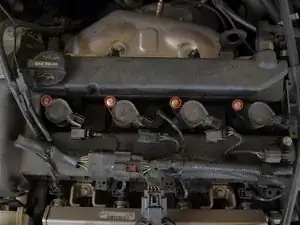

  3. EhnSohy4cToFFc6s
    EhnSohy4cToFFc6s
    WicJTPGUOBlFvLAy
    2VKJNMeKWiKE1VMi

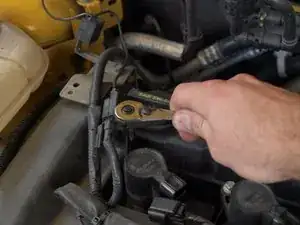

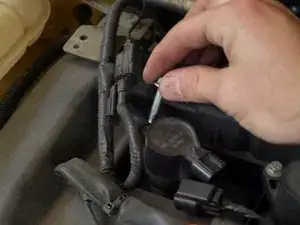

    • Use an 8 mm deep socket to loosen the four ignition coil mounting bolts.

    • Once the bolts are loose, they can be removed by hand.

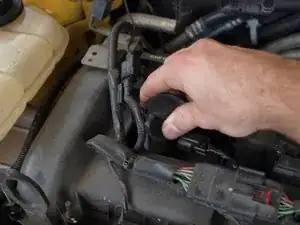

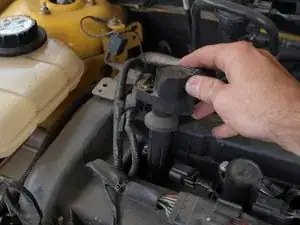

  4. yN2dhuHDsrdwJckm
    yN2dhuHDsrdwJckm
    FkpU6SJublETNXM4
    woEyWtPy4T3mI3ix

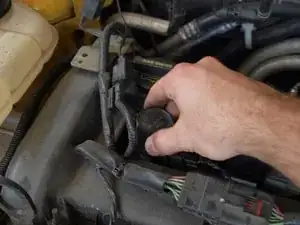

    • Twist the ignition coil and spark plug boot while lifting it straight up to remove it from the engine.

    • Avoid rocking the coil and boot side-to-side, since this could break the existing spark plug.

    • The procedure to remove the ignition coil and spark plug boot is the same for each spark plug. However, to reduce the chance of dirt entering the engine, only remove one at a time.

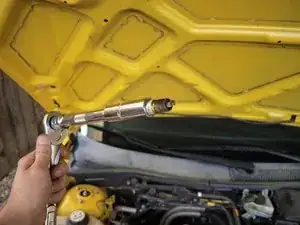

  5. iQ1UcNSxKptmmmRM
    iQ1UcNSxKptmmmRM
    PsuMukTy3cUMp2tV
    wnSD4xZaPXIPJbB2

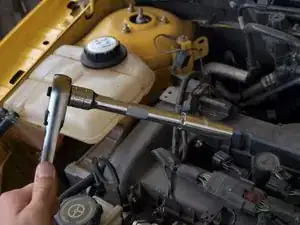

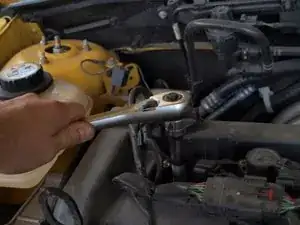

    • Use a ratcheting socket wrench with an extender and a 5/8" spark plug socket to remove the existing spark plug from the cylinder head. Make sure that the spark plug is completely seated in the rubber end of the socket before loosening it.

    • Spark plug sockets have rubber in the end of them to grip the spark plug and are made long enough to keep from snapping the spark plug. There are other common methods for removing spark plugs that involve using a long piece of rubber tubing to pull them out, but using a spark plug socket is the correct procedure.

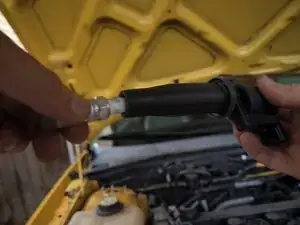

  6. ZQDG6RxUFhPSfBjj
    ZQDG6RxUFhPSfBjj
    tLLKQbknrXYQOjPg

    • Apply dielectric grease to the ribbed portion of the insulator.

    • Gently place the spark plug boot over the ribs and twist the two pieces back and forth to even out the layer of dielectric grease.

    Newer spark plugs are of higher quality and don’t require (my latest Bosch actually specifically said not to put any) dielectric grease.

    did4 -

  7. pF6CfYlX5mX1flcD
    pF6CfYlX5mX1flcD
    MLPeEfWUIWBlxinI

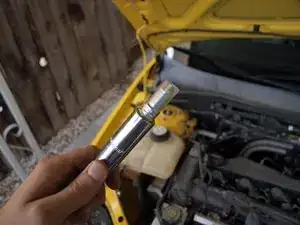

    • Place the new spark plug firmly in the spark plug socket so that the threaded end sticks out.

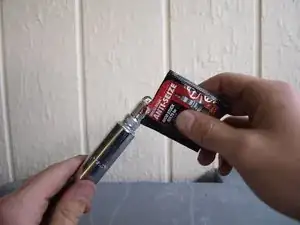

    • Apply an even layer of anti-seize compound to the threads of the spark plug.

    • Be careful not to get any of the anti-seize compound on the spark plug's electrode.

    Again newer spark plugs might not need the anti-seize compound - check with the specific plugs that you are using.

    did4 -

    Regardless of the plug type (Double platinum or Iridium) In the aluminum head Duratec 2.0 motors Ford recommends nickel based anti seize compound rated for 2400 degrees F on the threads. Copper or aluminum based anti seize is not to be used. Only apply a small amount to threads. Also, a blow wand long enough to reach inside the plug hole in the head and compressed air should be used before the new plug is screwed in to remove any rust from old plugs that may have fallen in during removal. Tighten new plugs with a torque wrench to 106 in/lbs or about 8 foot/lbs. Do not overnighten.

    Benny Buddy -

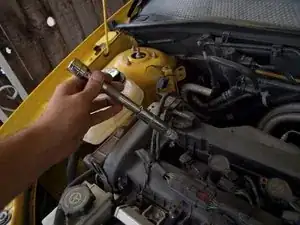

  8. jPaUKsfkreok6OHj
    jPaUKsfkreok6OHj
    lgyKfcrOJH1OmnUl
    lTWJv5cMfjxT6PYN

    • Place the new spark plug into the cylinder head and tighten it by hand as much as you can.

    • Tighten the spark plugs to 11 ft-lbs with a torque wrench.

    106 Inch pounds or about 8 foit/lbs is the Ford torque spec. 11 ft lbs is incorrect

    Benny Buddy -

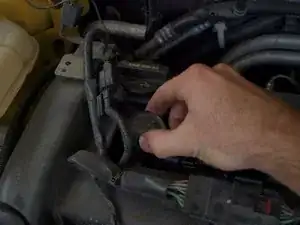

  9. FrdvQoLOTQEGhW1V
    FrdvQoLOTQEGhW1V
    FqZw4gV1Lv61LLig

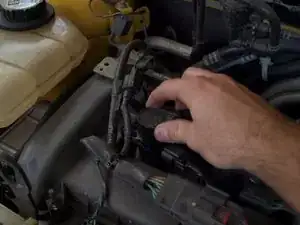

    • Place the ignition coil and dust boot back over the spark plug by pushing down and twisting it into place.

    • Reconnect the ignition coil electrical connector by snapping it back into place.

    • After installing your new spark plugs, compare the old ones to a spark plug wear chart to determine if there are any issues with the way your engine is running. A similar chart can be found in the back of all Haynes repair manuals.
