Einleitung

The tail lights might need to be changed multiple times in your vehicle's lifetime. This guide will help you replace a broken tail light bulb in your 2005 Ford Focus ZXW.

The tail light signals to other drivers if the vehicle is stopping, slowing down, or changing direction. A broken tail light can cause confusion for other drivers. Ultimately, this guide can help avoid receiving a ticket from the police or causing an accident.

Before beginning this repair, power down the ignition, place the car in park, and engage the parking brake.

  1. XLneKGI3mfOC5cKk
    XLneKGI3mfOC5cKk
    BbDeMRF1K2NqAfDF

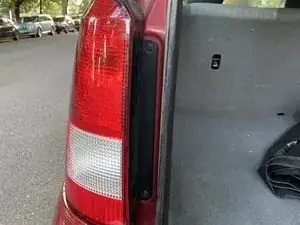

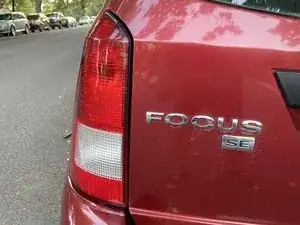

    • Open the trunk door.

  2. RljGGtrtEmC6YKiX
    RljGGtrtEmC6YKiX
    DclIbOFuXJnPRYvB

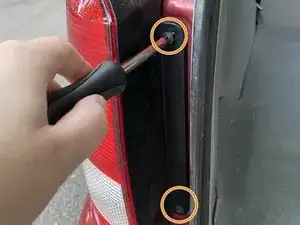

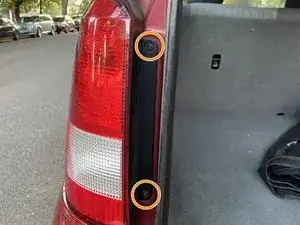

    • Remove the two screws with the Phillips screwdriver, rotating counter clockwise.

    • The taillight housing can now be detached from the vehicle.

  3. UoQSwdgjQXk4fJCf
    UoQSwdgjQXk4fJCf
    p5It2FISA6puvjGP
    nnDquJMoH13xglMf

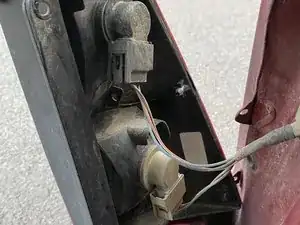

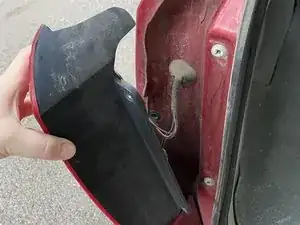

    • Gently pull the detached taillight housing away from the vehicle.

    • There will be wires attached to two different bulb sockets.

  4. OEJuOUnbRkVs42Gc
    OEJuOUnbRkVs42Gc
    oJMrQ4LCZShITUwR

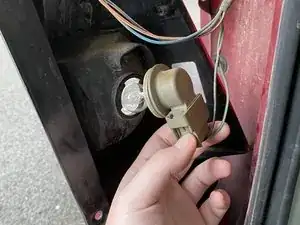

    • Disconnect the harness from the bulb socket by pushing in on the tabs and pulling.

    • Removing the harness from the bulb socket might require some force. Try moving the harness back and forth while pushing on the tabs if you are having trouble removing the harness.

    • Repeat the last two steps to disconnect the second harness from the bulb socket.

  5. qxBrx6KNiX2bhmYS
    qxBrx6KNiX2bhmYS
    1oVKAHQekNDLRepO

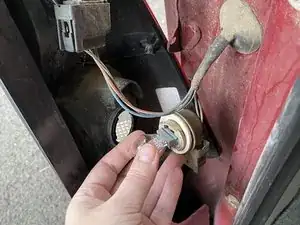

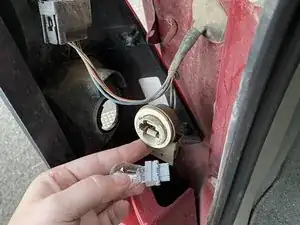

    • Remove the damaged bulb by firmly gripping the bulb and pulling.

    • Removing the bulb from the socket may require some force.

    • Be careful while handling the bulb as it may break.

  6. nMwx5eZwX3vKDovV
    nMwx5eZwX3vKDovV
    cEajuDD6GwgsFJOX

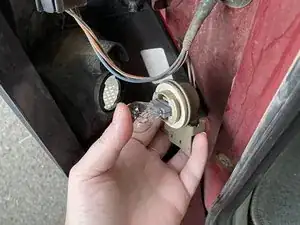

    • Place the new bulb in the bulb socket.

    • Repeat this process to replace the second bulb.

Abschluss

To reassemble your device, follow these instructions in reverse order.
