2005 GMC Sierra SLT 1500 Rear Passenger Side Window Motor Replacement

Geschrieben von: Jackson Landry

Kommentare: 0

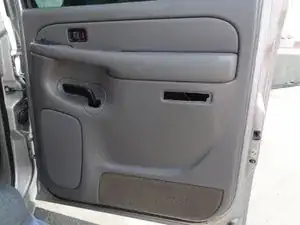

2005 GMC Sierra SLT 1500 Rear Passenger Side Window Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide is specifically for the rear passenger side door window motor. However, this guide will also apply for the rear driver side door window motor. Aside from some minor differences when removing the door panels, this guide will also apply for the front door window motors.

This guide is specifically for the 2005 model. However, this guide will apply for models from 2003-2006.

Werkzeuge

Ersatzteile

Window Motor

Schritt 1

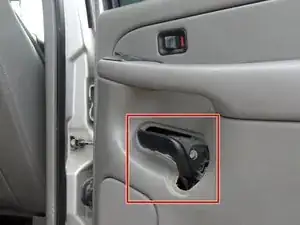

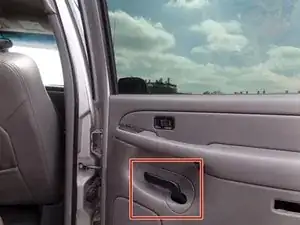

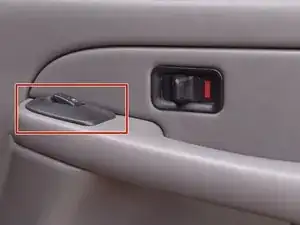

Using a flat head screwdriver to pry around the edges until the door handle cover pops off, remove the door handle cover from behind the door handle.

Schritt 2

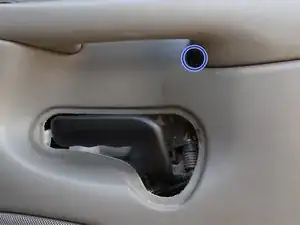

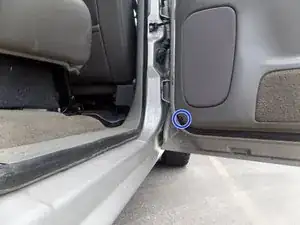

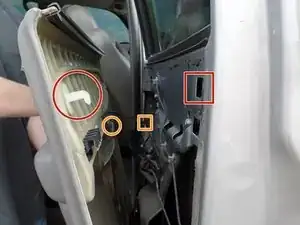

Remove the (2) 7mm bolts from the door panel.
One is at the bottom left of the door panel and another is behind the arm rest.

Schritt 3

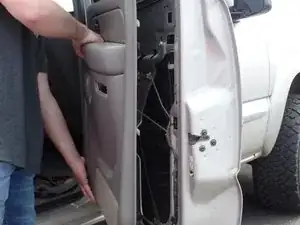

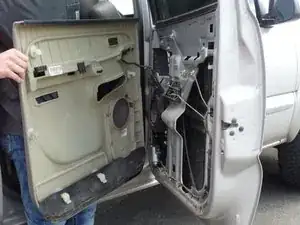

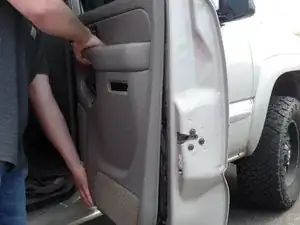

After grabbing the armrest and the bottom of the door panel, pull straight up to separate the door panel from the door.

Schritt 4

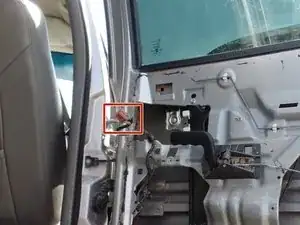

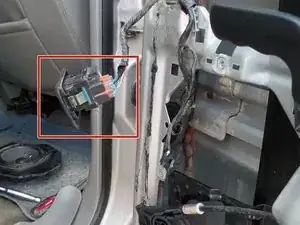

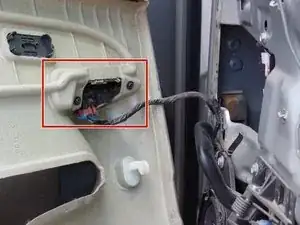

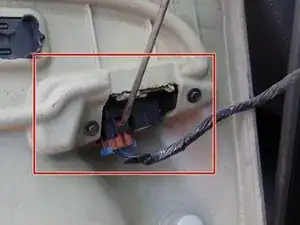

Using a flat head screwdriver to push in the clip, pull the plug from the window switch to unplug the window switch.

Schritt 5

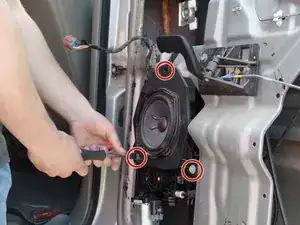

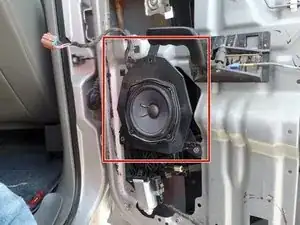

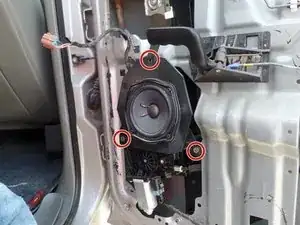

Remove the (3) 10mm bolts from the speaker.

Schritt 6

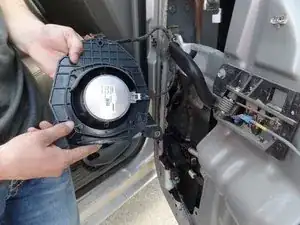

Pull the speaker out to separate it from the door.

Schritt 7

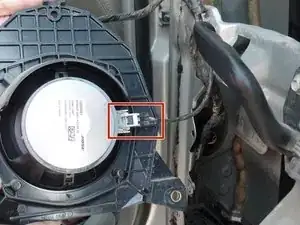

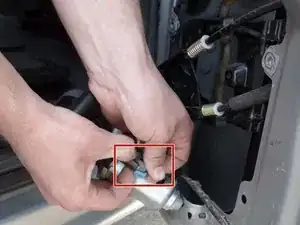

Using a flat head screwdriver to push in the clip, pull the plug from the speaker to unplug the speaker.

Schritt 8

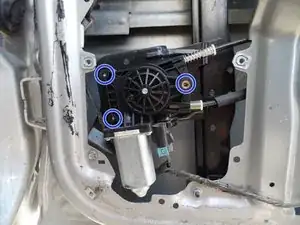

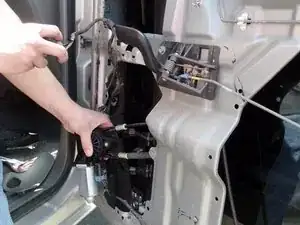

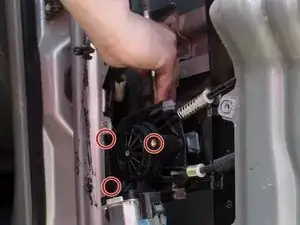

Remove the (3) 8mm mounting bolts from the old window motor.
The bolts are inside the door, on the backside of the old window motor.

Schritt 9

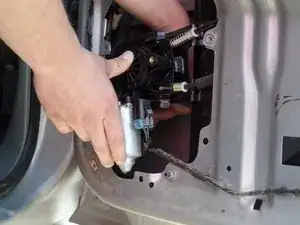

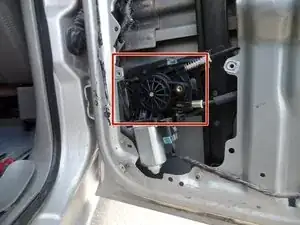

Gently remove the old window motor from the pulley housing.

Schritt 10

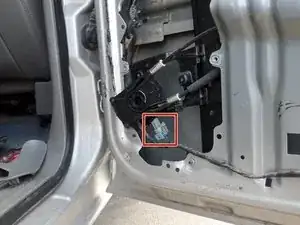

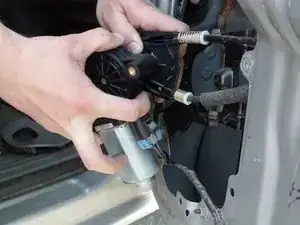

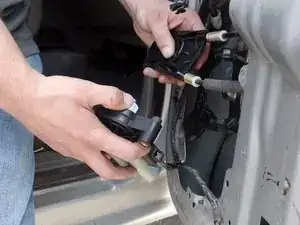

Pushing in the clip, pull the plug from the old window motor to unplug the old window motor.

Schritt 11

Attach the plug to the new window motor to plug in the new window motor.

Schritt 12

Gently place the new window motor into the pulley housing.

Schritt 13

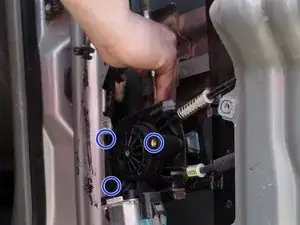

Place the (3) 8mm bolts into the new window motor.
The bolts go inside the door, on the backside of the new window motor.

Schritt 14

Tighten the (3) 8mm bolts to secure the new window motor.

Schritt 15

To test the new window motor, follow Steps 16 through 21 before proceeding to Step 22.
Otherwise, skip ahead to Step 22.

Schritt 16

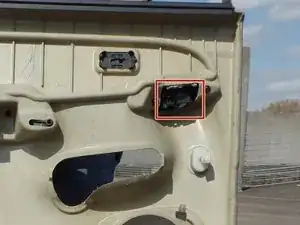

By pushing out the window switch from the backside of the door panel, remove the window switch from the door panel.

Schritt 17

Attach the plug to the window switch to plug in the window switch.

Schritt 18

Turn the truck key to the "on" position to apply power.

Schritt 19

By operating the window switch, test that the new window motor works correctly.

Schritt 20

Pushing in the clip, pull the plug from the window switch to unplug the window switch.

Schritt 21

Place the window switch back into the frontside of the door panel.

Schritt 22

Attach the plug to the speaker to plug back in the speaker.

Schritt 23

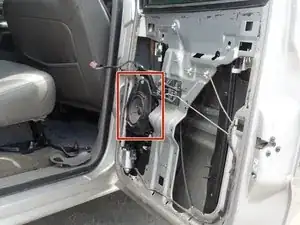

Place the speaker in its spot against the door.

Schritt 24

Place the (3) 10mm bolts back into the speaker.

Schritt 25

Tighten the (3) 10mm bolts to secure the speaker.

Schritt 26

Attach the plug to the window switch to plug in the window switch.

Schritt 27

After lining up the hooks on the door panel with the correct holes in the door, place the door panel against the door.

Schritt 28

Gently push the door panel in and down.
If the door panel does not easily fall into place, remove the door panel and ensure that there are no obstructions in the door before lining the door panel up again.
