2005 Jeep Liberty Fog Light Replacement

Geschrieben von: CHARLES CATLEDGE
  • Kommentare: 2
2005 Jeep Liberty Fog Light Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

With this step by step repair guide, you will be able to replace a fog light for a 2005 Jeep Liberty.

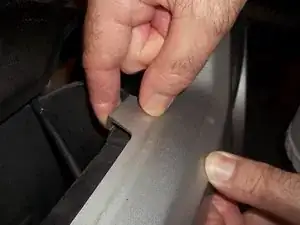

  1. cW5GIesXfNFYQYmj

    • Open the hood to access the radiator grill tabs.

    • Pull up on the first tab and repeat for the remaining four tabs.

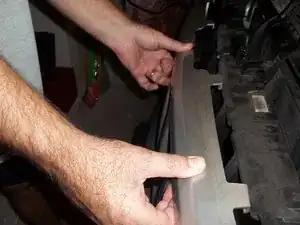

  2. WvU1iEhsLDbjpAc5

    • Tilt the radiator grill cover forward and lift up and out to remove.

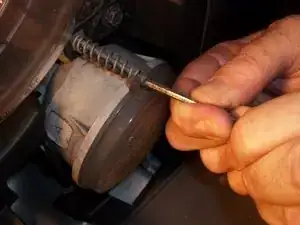

  3. 2xYR1uEYPnbHE6wN

    • Using an allen wrench, turn the tension screw counter-clockwise to loosen the light housing.

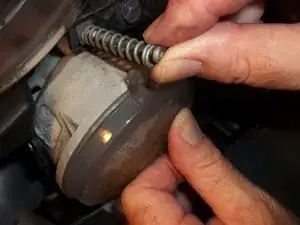

  4. DM3lxBMT3abCQ5IM

    • Lift up on the tension screw to release the light housing.

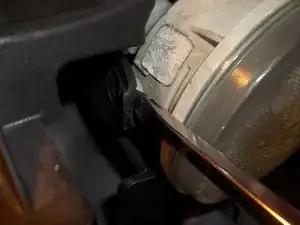

  5. cBhtbSrPM1SKNnw6

    • Using a flat-head screwdriver, pull the tab outward to remove the light housing.

    • Repeat the procedure for the right side of the light housing.

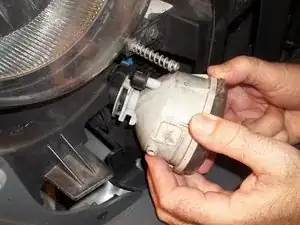

  6. 6ysE3HgQCxu5iYpY

    • Pull the light housing toward you.

  7. uBetIfExdyXyCSAq

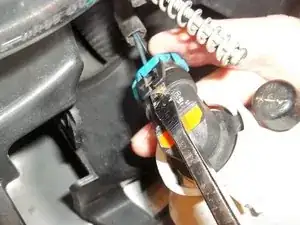

    • Remove the wiring harness from the light socket by lifting up on the tab with a flat-head screwdriver.

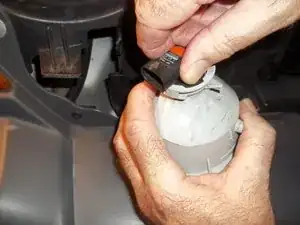

  8. Qm1tCXHq5KRxFGI2

    • Remove the light socket from the light housing by turning counter-clockwise.

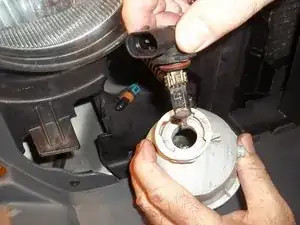

  9. SNbi3uXjjdfGgQES

    • Remove the light socket from the light housing and replace.

    • The light socket part number is 9145 and can be purchased at any auto parts store.

    • Install the new light socket back into the light housing by turning clockwise.

    • Plug the wiring harness back in the light socket.

Abschluss

Test the replacement light socket by turning the lights on. If working, reinstall the light housing and radiator grill cover.
