Einleitung
This guide will show you how to remove the door handle, the main and two upper panels, the bottom latch, and the cable itself in a simple and safe way. This fix should take about 10 steps.
-
-

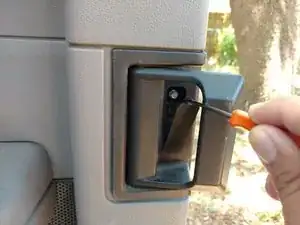

Remove the plastic cover from the door handle using a 7.6 cm slotted screwdriver.
-

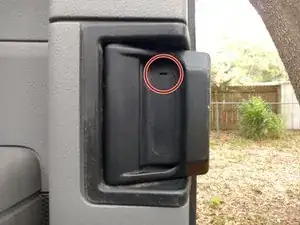

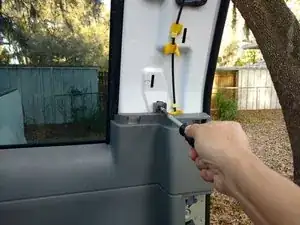

Insert the screwdriver into the small opening found at the top of the plastic cover.
-

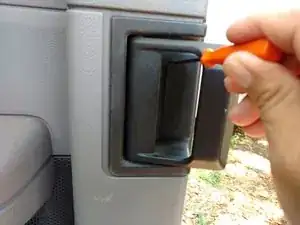

Carefully tilt the screwdriver upward to remove the plastic cover.
-
-
-

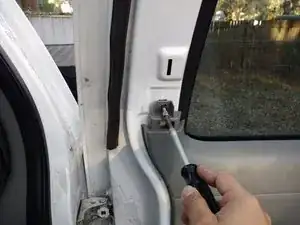

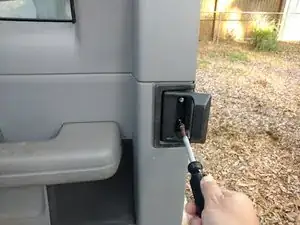

Remove the two 6 mm hex screws using a 6mm socket.
-
Turn the screwdriver counter-clockwise to loosen and remove the screws.
-

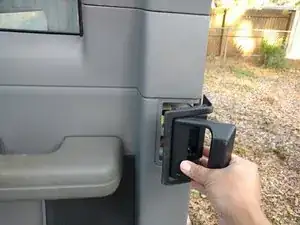

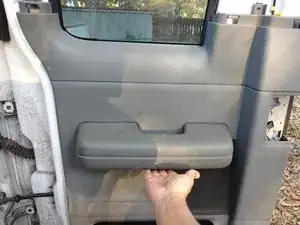

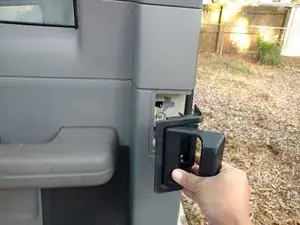

Grab the door handle and remove it from its location.
-
-
-

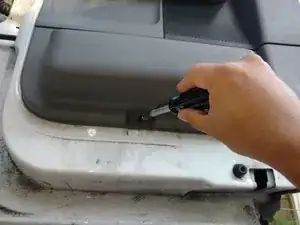

Remove the three 6 mm hex screws off the main door cover using a 6 mm socket. There are two screws at the top and one at the bottom.
-
-
-

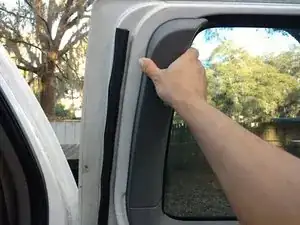

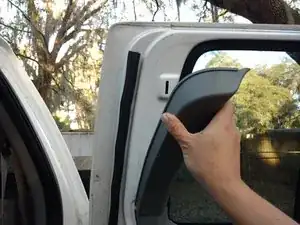

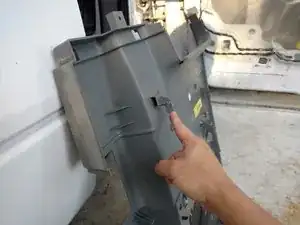

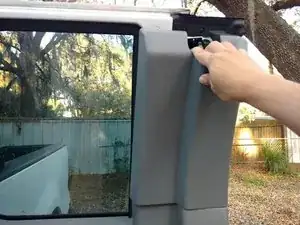

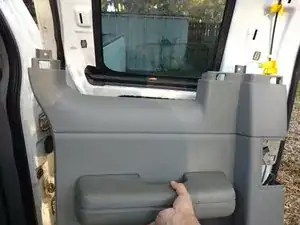

Gently, but with a strong force, lift the door cover about an inch or two high. Then, carefully pull it outward.
-
-
-

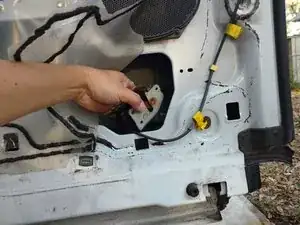

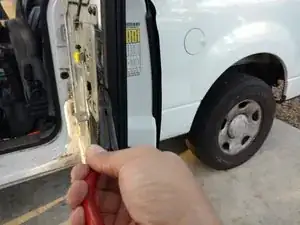

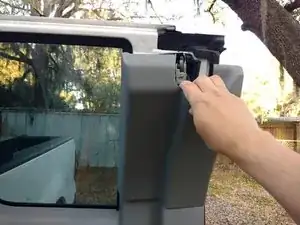

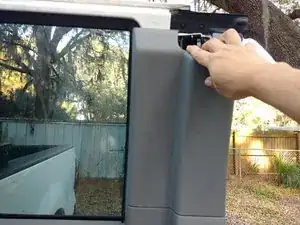

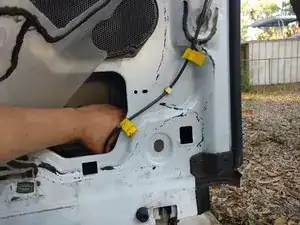

Snap out the upper end of the cable out of its location.
-

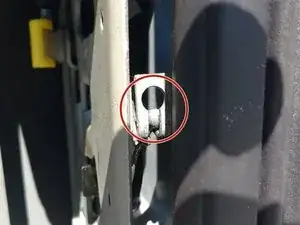

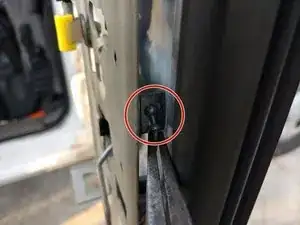

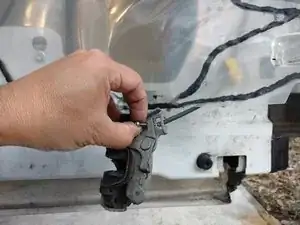

Using a plier, lift the cable high enough so that the little ball can come out through the round opening above it.
-
-
-

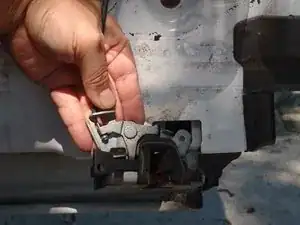

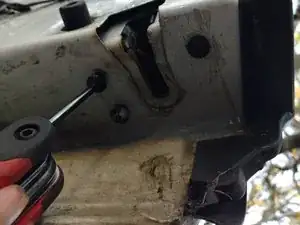

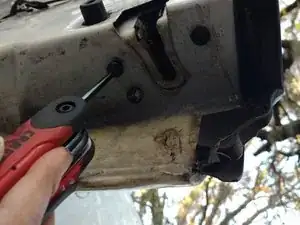

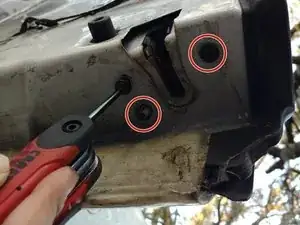

Remove the three T27 hex star screws using a tamper torx screw driver. The screws are found at the bottom of the door.
-
To reassemble your device, follow these instructions in reverse order.
