Driving with a malfunctioning tail light is dangerous. This guide will walk you through the steps of replacing a broken tail light bulb on your 2007-2012 Jeep Wrangler so you can get back on the road quickly.
Werkzeuge
-
-
Determine which tail light is not working.
-
The tail lights are located within the red rectangles.
-
-
-

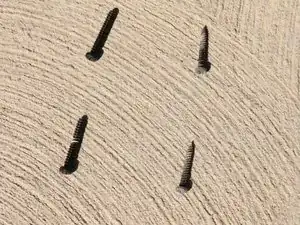

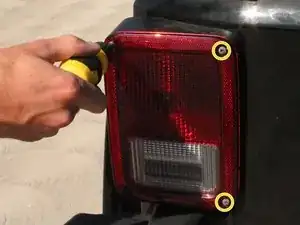

Use a Phillips No. 2 screwdriver to remove ONLY the two INNER screws by turning in a counterclockwise direction.
-
-
-

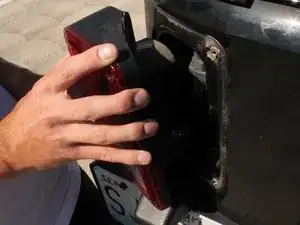

Grasp the edges of the tail light and slide 1/2" towards the center of the vehicle, then pull lightly away from the vehicle until the light is 4 inches away from the vehicle.
-
-
-

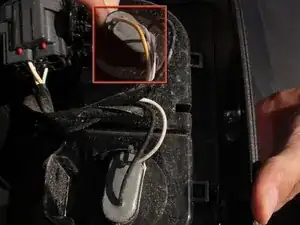

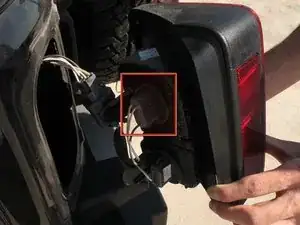

Locate the top light bulb on the back of the tail light casing. This is the bulb you are going to replace.
-
-
-
Twist the back of the light bulb counterclockwise until it loosens.
-

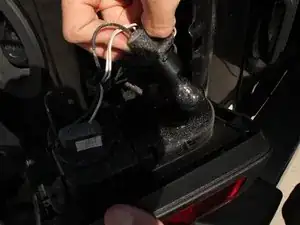

Twist and pull carefully until the light bulb and socket are removed together.
-
-
-

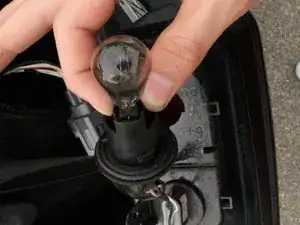

Pinch the clips just below the light bulb. These hold the light bulb in place.
-

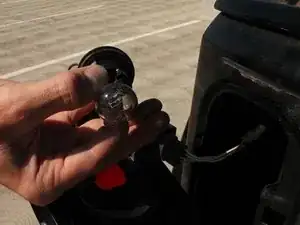

Pull until the light bulb is released from the socket.
-
If the light bulb is faulty, dispose of it properly.
-
To reassemble your device, follow these instructions in reverse order.
8 Kommentare
I got that far but I cant get the bulbs out - they seem to be stuck in the sockets - any ideas? thank you very much - steven
steven -
On mine the clips actually need to be pushed out and not pinched - can stick a small screwdriver in there to push them out ( maybe one for each)
Try spraying some WD40 where the bulb plugs into the socket. Let it sit a few minutes, then try pilling the bulb out.
ka1axy73 -
I have successfully replaced these bulbs several times. This time I decided to use an LED replacement bulb (same part number but with an XL suffix). The new bulb went in fine and works BUT the computer has not reset regarding the warning message that the right rear turn signal lamp being out. Any ideas?
I haven't had any luck. In fact, after two weeks the led bulbs always burn out. I was told you bed a diode in between the socket, and the bulb.
