2008 BMW 335xi Blower Motor Replacement

Geschrieben von: Dhimitraq Lolo
  • Kommentare: 0
2008 BMW 335xi Blower Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

This repair guide covers replacing the BMW 335xi blower motor at home with just a couple of common hand tools. Blower motors can break for many reasons such as old age, failed bearings, or electrical issues.

You will start by disconnecting the car battery and then proceed through the glove box to the blower motor. To follow these steps you will need a T20 Torx Screwdriver, a 10mm Socket, and a 3/8” drive ratchet. The guide will take you through 6 steps to remove the blower motor. These same steps will be followed in reverse order to install the new blower motor.

  1. JOCQmZSoqREFNa3H
    JOCQmZSoqREFNa3H
    fM6dowQiFoZHAf2q
    T3OFOE4FMrtmB144

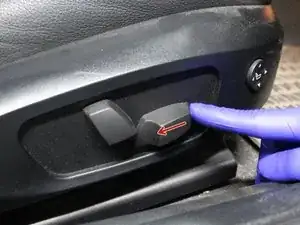

    • Put the passenger seat all the way back to create as much room as possible.

    • Remove any objects from the floor of the passenger seat so that you have a clean workspace.

  2. 5a4YNIew1cNHVH5A
    5a4YNIew1cNHVH5A
    wiRpuKIQkyJrSQk5

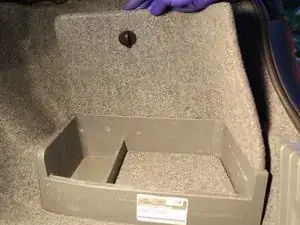

    • Remove the panel on the right side of the trunk to expose the battery.

    • Twist the knob to unlatch the door so that you can remove it.

  3. bFecnxVtYGYgVVXB
    bFecnxVtYGYgVVXB
    iCnbFQHTpoVSmSTU
    1lVjhjUqSOWR3cPA

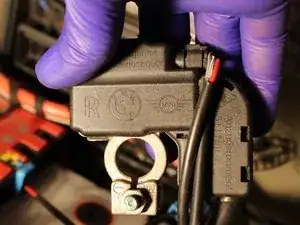

    • Use a 10mm socket wrench to loosen the bolt and remove the negative battery terminal.

    • Then tuck it to the right side and wrap it in a rag.

    • This prevents the circuit from being accidentally completed while you continue working.

  4. AEkEPnDG3O6KQLBv
    AEkEPnDG3O6KQLBv
    IVN2swxwU1fi1DtH
    RRRmuwScYi2ZnAxF

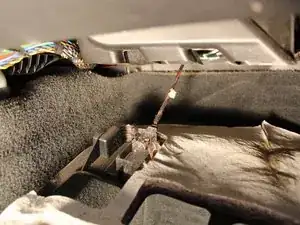

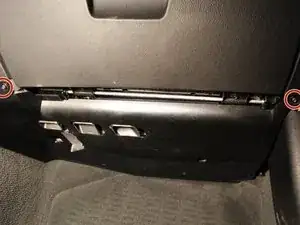

    • Remove the two T20 Torx screws located below the glove box.

    • One is located all the way on the right and the other one is located all the way on the left.

    • The panel will drop down as the screws are removed. Pull the panel away slightly.

    • Careful not to let it drop all the way down as a wire is connected to the footwell light.

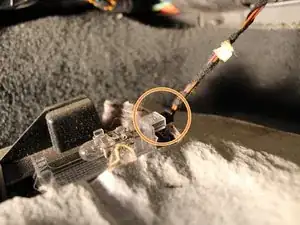

    • Disconnect the black cable for the footwell light.

  5. w5DAoS1gRWfuv6Yt
    w5DAoS1gRWfuv6Yt
    cL4NaXClWpfyQGGA
    iieKFiR32yJvDCIy

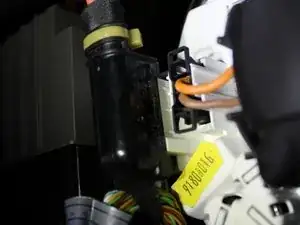

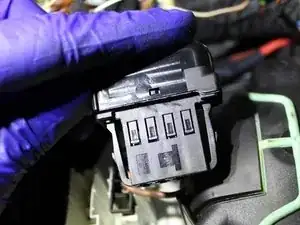

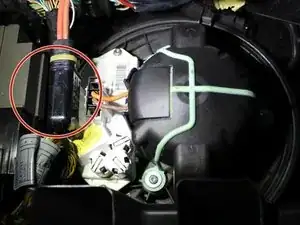

    • There is only one connecter that needs to be disconnected to remove the blower motor. This connector is black with two red/orange wires going into it.

    • Pinch the connector on the top and bottom and pull it out to remove it.

  6. DGpiVW3RbtE3yY5j
    DGpiVW3RbtE3yY5j
    Y3bgCIl2bLlXqgGE

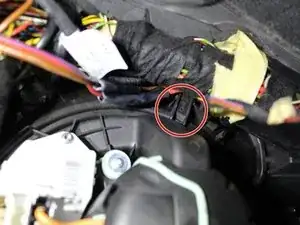

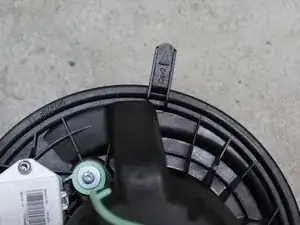

    • Pull down on the tab towards the front of the car and at the same time turn the whole assembly clockwise.

    • Pull the round black assembly out from the vehicle.

    • This is the blower motor assembly!

    • When pulling the blower motor out, be careful not to drop it on yourself.

Abschluss

To reassemble your blower motor, follow these instructions in reverse order.
