2009-2015 Suzuki Alto Head Unit Replacement

Geschrieben von: Jossef Harush
  • Kommentare: 10
2009-2015 Suzuki Alto Head Unit Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

I've found zero tutorials or references online on how to do this. Hopefully, this simple tutorial helps people who wish to replace their OEM head unit.

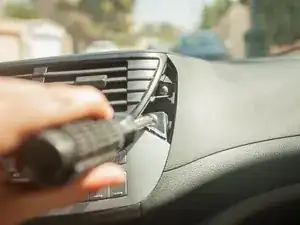

  1. T2aPdmVqCAFHcAxv
    T2aPdmVqCAFHcAxv
    Gn6YD6GlGPjqOmZV
    KJAutSYNf2R2TOV1

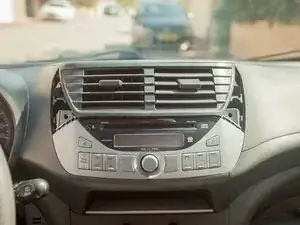

    • Use soft disassemble tools to remove the bezels hiding the screws.

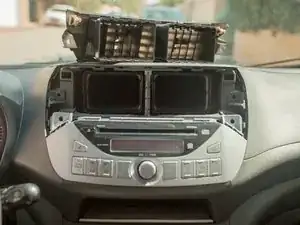

  2. Yx6klKOmMWsT52yO

    • Pull it like a drawer.

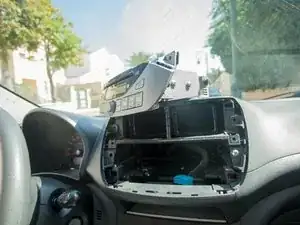

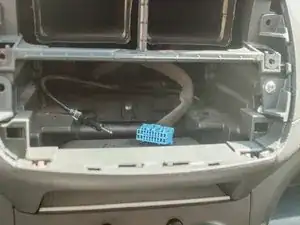

  3. 234UOLX5CCqEico3
    234UOLX5CCqEico3
    mdFK21YSMEBB6gAi
    xLO5AyhjFGsAqZIB

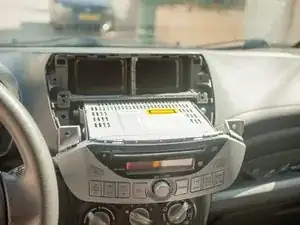

    • Disconnect the connectors.

  4. miq5jD6ChuYFJGrX
    miq5jD6ChuYFJGrX
    nImBE5VJKPIsXkPG

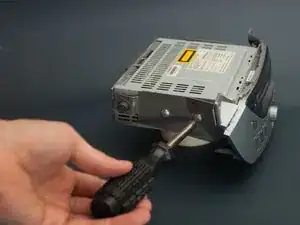

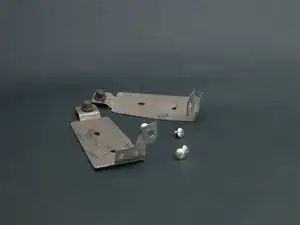

    • Unscrew mounting plates from original headunit to custom headunit.

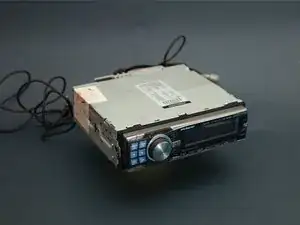

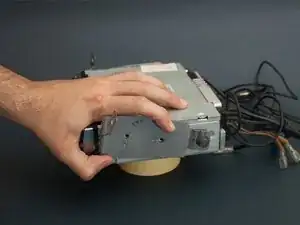

  5. jIsgmYjCxQPD25eV
    jIsgmYjCxQPD25eV
    BDbAf4iXwdAN5oaP
    HEtsE2x5isTmRv5C

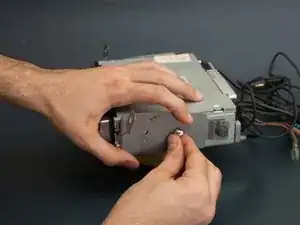

    • Screw the mounting plates on to your custom head unit.

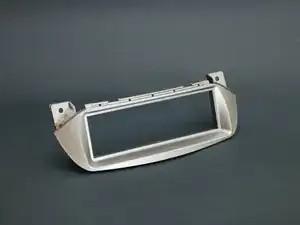

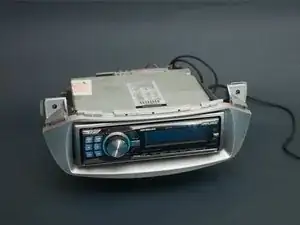

  6. OxK5XOtne4fxTADD
    OxK5XOtne4fxTADD
    a4SUnrhraVC1Ydjv
    4c5KWGRLOaWSuPqX

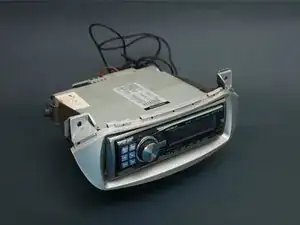

    • Add the unit's bezel.

    Where do you get the bezel from ?

    fergusond007 -

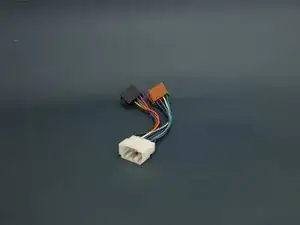

  7. 4qqXrgNiGBbSntHI
    4qqXrgNiGBbSntHI
    JBpOJUHUixeRPkjV

    • You will need an adapter from Suzuki's headunit connection to generic connection.

    whats is the name of the stock to generic adapter?

    zoharok -

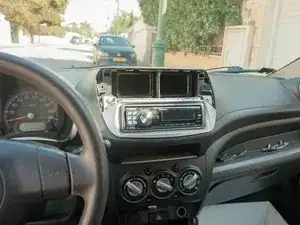

  8. kwjyLipdOKc1ju1G
    kwjyLipdOKc1ju1G
    LmOLeKBBM2yKTUep
    TQFZZFNJsBNJi6tq

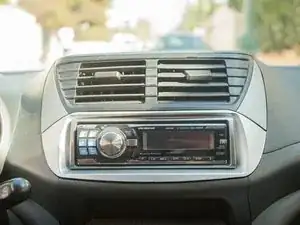

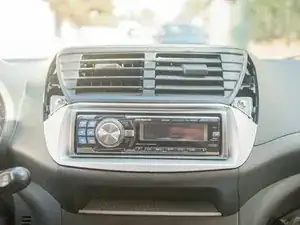

    • Return the AC grill, screws and bezels.

Tinte & Feder

Jossef Harush

Mitglied seit: 26/11/15

333 Reputation

8 Kommentare

Thanks for this, exactly what ive been looking for. I dont suppose you'd know the type of adapter necessary to connect the suzuki plug to an after market stereo? Thanks again for the guide!

robmatheson72 -

Here is one sold under the type code CT20SZ02. Looks like this type of connector is used in a lot of recent Suzuki models, so they should be available from other stores (using other names).

knipwim -

Absolutely brilliant guide. Thanks. Had to purchase a different harness adaptor for my 14 alto sz3. It says on the packet the harness is for Honda Acc 9/98> but this fits and works 100%. Available from Halfords it is item PC2-68-4. Once again many thanks for the guide.

Bryan Tucker -

Thanks Jossef Harush for such a detailed guide. It really helps me a lot but at last due to some reasons the connection cable tear out and I have to reach out Gomechanic team for the replacement with a genuine wire. Love their service as well as your guide too.

kasmira khandelwal -

Thanks so much for this guide.

We have removed the screws on the head unit but it will not pull out at all, it seems completely stuck. Any suggestions on how to remove it or something we are missing?

James Insalaco -

if you refer to the AC air vents then use more force, I’ve also experienced this.

Jossef Harush -

Hey guys, I am in need of the Brezel used in step 6. I reside in South Africa. Thank you for the guide, exactly what I needed.

MrTambi10 -

can i fit any after market radio

Will Mcmanus -
