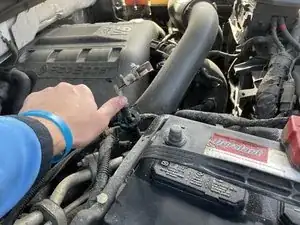

Open Hood: Open the hood using the hood latch inside the driver side of the car.
-
Pull lever to release the hood.
-
-
-

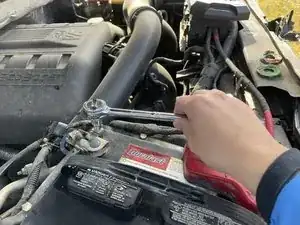

Disconnect Battery: Use an adjustable wrench to disconnect the negative power from the battery (Turn clockwise, then lift).
-
8 mm socket wrench
-
-
-

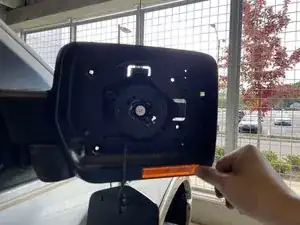

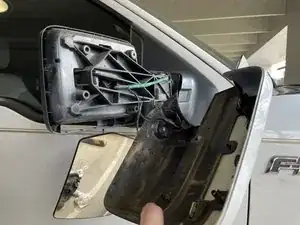

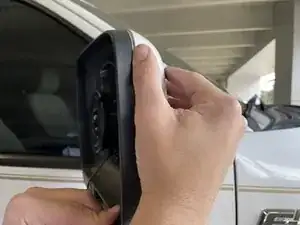

Tilt Mirror Forward and Disconnect Mirror: Locate lock tabs behind the mirror. Apply pressure to all three tabs until the mirror unlatches and you can remove it.
-
-
-

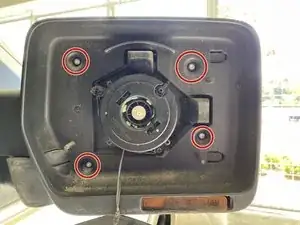

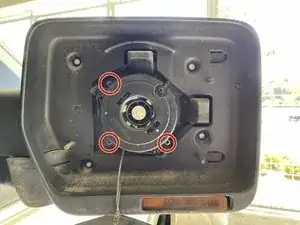

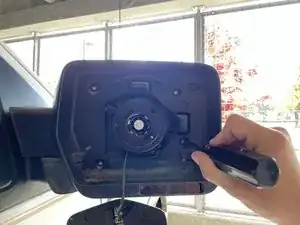

Unscrew Backing: Locate and unscrew 4 Torx T20 bolts holding backing and disconnect it from the mirror.
-
Two Torx T20 bolts.
-
-
-

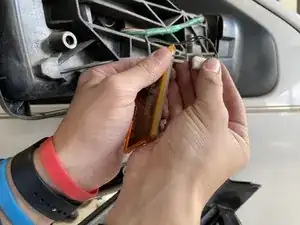

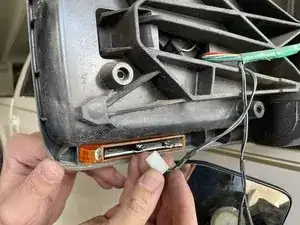

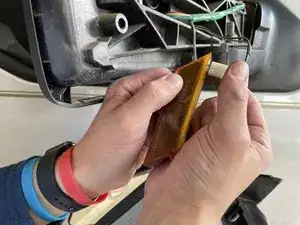

Disconnect Old Mirror Blinking Light: Disconnect the plug from the rear of the blinker light.
-
-
-

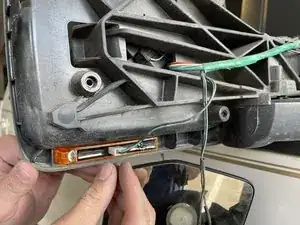

Install New Mirror Blinker Light: Slide new light into the mirror and press firmly until you hear a click.
-
-
-
Reconnect Battery: Reconnect the negative power to the battery to restore power to the truck.
-
Test Blinker: Test your blinker to ensure the new setup works and reassemble your mirror.
-
To reassemble your device, follow these instructions in reverse order.
