2010-2014 Ford Mustang New Front Grille Emblem Replacement

Geschrieben von: Christopher Pell
  • Kommentare: 1
2010-2014 Ford Mustang New Front Grille Emblem Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

  1. PXWgMvkgcsWFaWSG

    • Pull the latch by the drivers feet to open the hood.

  2. PGA5f1AHHj1yS4VM

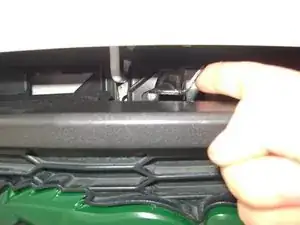

    • Push the latch under the center of the car's hood.

  3. ZSEd4oNwhIxwwXNU
    ZSEd4oNwhIxwwXNU
    DyQnadJbp15lX5nq
    2jDJEfLy5fTMFMBU

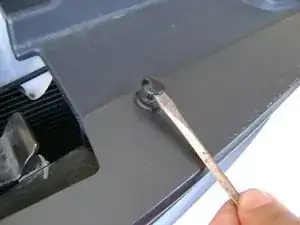

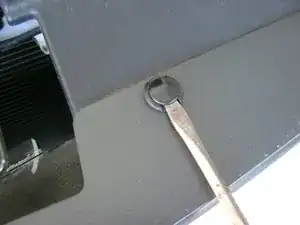

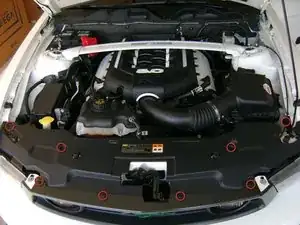

    • Remove all the pins on the front cover to gain access to the back of the grille.

  4. CdCeMm5HEKUlgssF
    CdCeMm5HEKUlgssF
    Hfek11cDWeRsjkWO

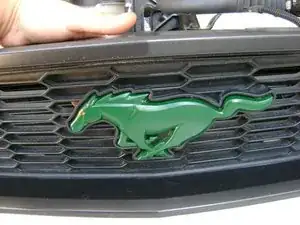

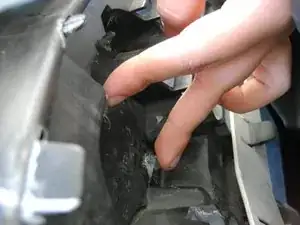

    • Push on the pins behind the grill to make the pony emblem come out of the front of the grille.

    For the 2014 Mustang GT, the pins are secured with metal rings. Simply pushing on them will not release the pony emblem. More details are needed to remove them.

    Doug -

Abschluss

To reassemble your device, follow these instructions in reverse order.
