2010-2014 Subaru Legacy Horn Replacement

Geschrieben von: Miroslav Djuric
  • Kommentare: 0
2010-2014 Subaru Legacy Horn Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

1 Stunde

Einleitung

I wanted a nice sounding horn, so I replaced the stock honkers with a set of PIAA 500hz/600hz "sports" horns.

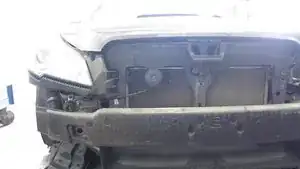

This guide is a bit of a cheat -- the car was in the shop, and the front body panels were already removed from the car. So to accomplish this at home, you'll either have to finagle your way through the bumper, or better yet, take off the front bumper before embarking on this adventure.

I'll try to include instructions for bumper removal once the car returns from the shop.

  1. h2yQRD3rYJLo2Iwc
    h2yQRD3rYJLo2Iwc
    dGE1IEkCvIQC3YEJ

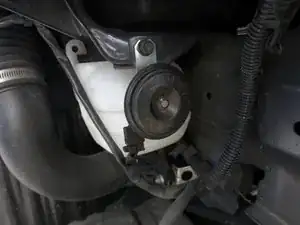

    • These are the [stock] horns you are looking for. One is located on the left-side of the radiator (when looking at the car), while the other one is next to the air intake / water tank.

    • Both horns are identical in terms of disassembly/replacement. The one mounted near the radiator is a bit harder to access, since the hex bolt is obscured by a frame -- but it's not that much more difficult to remove.

  2. hYAXQ6Iu6ItCLPGw

    • Use a 12 mm wrench to remove the bolt holding the horn in place.

  3. pDSX5UvdseOSRBSL
    pDSX5UvdseOSRBSL
    ZLydJLIWEATP2TQr
    mWbeyYCbFdp3ICEN

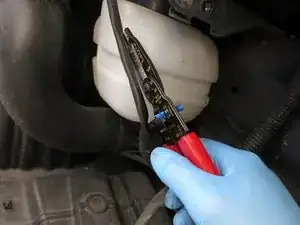

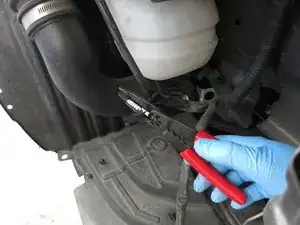

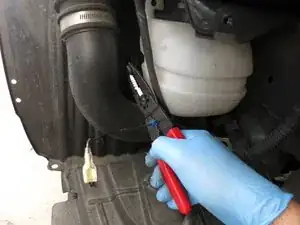

    • Unplug the power connector from the horn, and use a wire stripper to expose a bare portion of the wire. The "20 ga" hole seemed the best fit for this purpose.

    • The PIAA horns have their power/ground connections on top of the horn, so the stock wire won't be long enough. At the same time, the ground cables that come with the horns are too long -- which is a perfect hack in this case!

    • Snip about 4" of the ground cable wire (the 1/4" female spade connector side) and use a butt connector to attach it to the horn's power wire.

    • It may be a good idea to insulate the connection with some electrical tape after it's been crimped properly.

  4. 1uaAXic4J55yHC2X
    1uaAXic4J55yHC2X
    ft2dwB41x2xUZ1vR
    yn2KLqcciBcdPfQA

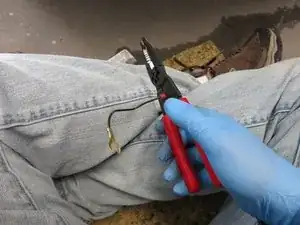

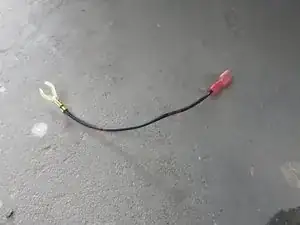

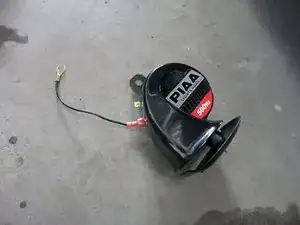

    • Now you should have a shortened ground cable with a bare wire on one end, and that half-loop connector on the other.

    • Attach another 1/4" female spade connector to the end of the ground cable, and plug it into the lower of the two male spade connectors on the PIAA horn.

  5. dFoTyVU5qFgJhfMG
    dFoTyVU5qFgJhfMG
    SbXWZTUMBUJr5TQD
    wV3YcjiO1ZVIZfeC

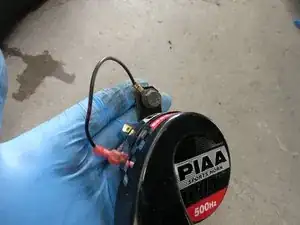

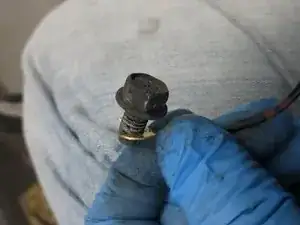

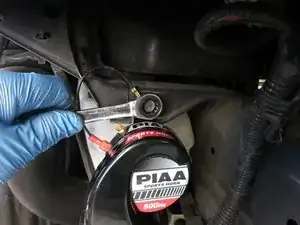

    • The factory bolt is a bit larger in diameter than the half-circle connector will allow -- unless it is expanded! So insert a needle-nose plier into the center for the connector and then spread it apart in order to accommodate the bolt.

    • Route the bolt through the horn's mounting hole.

    • Screw the bolt / ground wire / horn assembly into the factory mounting hole.

  6. V62fMndYfjRZyMQm
    V62fMndYfjRZyMQm
    GoARhMBmUyPWCTfd
    JSkSkmSpJGNVJNBV

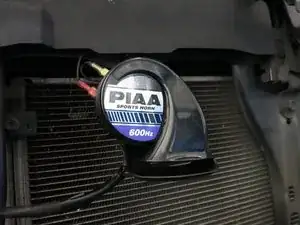

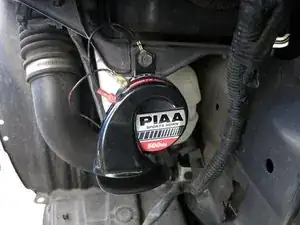

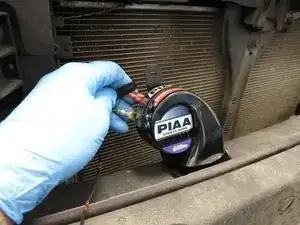

    • Plug in the DC power line into the top male connector of the horn. The final wiring / horn assembly can be seen in the first image.

    • Once you're done with the first horn, the second should be the same exact procedure -- so go get 'em!

  7. So that's it! Here's a before-and-after horn comparison, so you get an idea of the sound difference.

    • So that's it! Here's a before-and-after horn comparison, so you get an idea of the sound difference.

    • I don't believe the PIAAs are that much more loud, but they are definitely a nicer sounding setup than the stock honkers.
