2010 GMC Sierra Tail Light Replacement

Geschrieben von: Charles Swain
  • Kommentare: 1
2010 GMC Sierra Tail Light Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

Replace the tail light bulbs in a 2010 GMC Sierra. Tail lights are for telling other drivers that a vehicle is stopping. Ensuring proper tail light operation is important, and so is doing this process correctly. Make sure to have a replacement tail light bulb, some latex gloves, a 10mm wrench, and a Philips head #2 screwdriver before beginning.

  1. gBh5YLHEBse25YYB
    gBh5YLHEBse25YYB
    SwWC1sbKkDwWEEj4
    5kCMqpJgdIktxmda

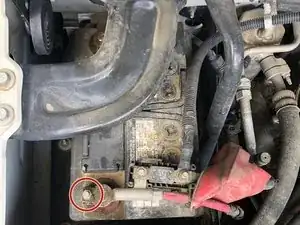

    • Open the hood of the truck.

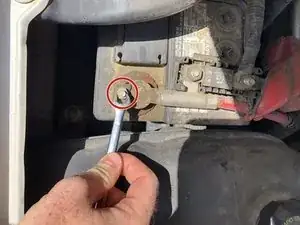

    • Using the 10mm wrench, loosen and remove the 1-3/4" bolt securing the cable.

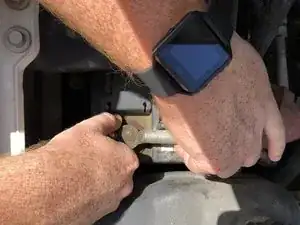

    • Pull the cable from the battery.

  2. hrnK4WbbuLLxDLv6
    hrnK4WbbuLLxDLv6
    IiHOxEYisS2eswdG

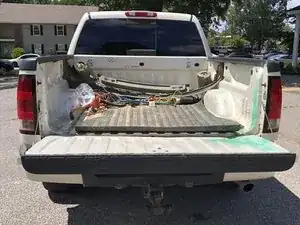

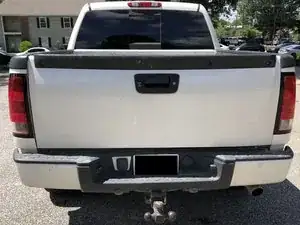

    • Lower the tail gate fully.

    • Remove objects near tail light.

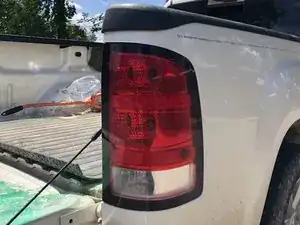

  3. MKEMMyxbLFEsZmGd
    MKEMMyxbLFEsZmGd
    ks1YQxThQiixVvEk

    • Using the Philips screwdriver, remove the two 4.8x16mm screws securing the housing.

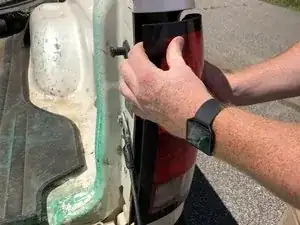

  4. IXSovtmACeu6CEIq
    IXSovtmACeu6CEIq
    cUirGesfVeW1PPY3

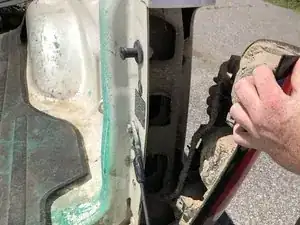

    • Pry the housing free.

    • Be mindful of wires and dust.

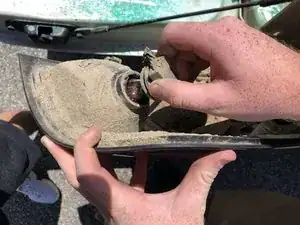

  5. xE2kVcJTAJIBE2EC
    xE2kVcJTAJIBE2EC

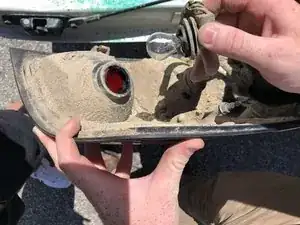

    aoyxoQxjack3vPMj

    • Rotate the harness counterclockwise.

    • Pull the harness free from the housing.

  6. jHboGNDQfKnClNYy
    jHboGNDQfKnClNYy
    MTfRKBGufSDsXJcF

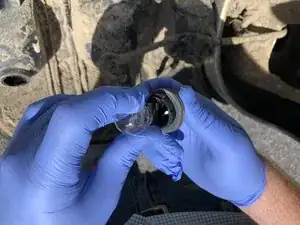

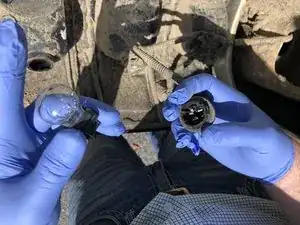

    • Wearing the latex gloves, pull the bad bulb out of the harness.

    • Skin oil shortens the bulbs' life spans.

Abschluss

To reassemble your device, follow these instructions in reverse order.
