2011-2017 Honda Odyssey Key Fob Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

The Smart FOB remote key design is identical for various Honda models including Odyssey / Pilot / CRV/ HRV / Accord / Civic / Ridgeline. The steps listed can be used to replace the battery on the mentioned models.

  1. lnyta2OxbKH5dXQY

    • Remove the mechanical key by moving the tab on back of key & pulling out the key.

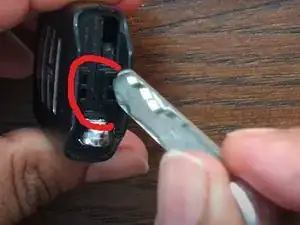

  2. gkuZMxR6IhTWjPAK

    • Separate the shell using a large screw driver or by using the mechanical key. The shells have a separating tab in the middle. Pry open the shell by gently twisting the screwdriver or the mechanical key into the separating tab.

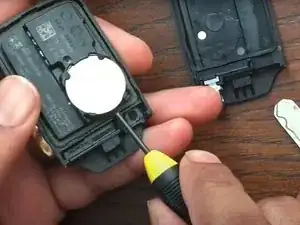

  3. THnsde2eSQxx1KpE

    • Remove the battery carefully using a small screw driver.

    It is possible to remove the battery with the valet key, which makes this a "tool-less" repair. Be careful not to pry out the main board, which holds the front buttons in place.

    Daryl Metzler -

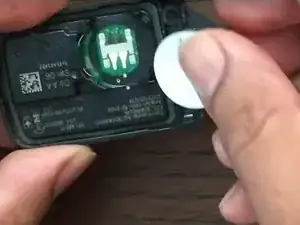

  4. 5eQBLN1oarkOAHVB

    • Replace the battery. Make sure not to damage the 2 tabs holding the battery. Do not press or force the battery into its place, slide it underneath the tabs.

    • Battery : Lithium Coin Battery CR2032 3V

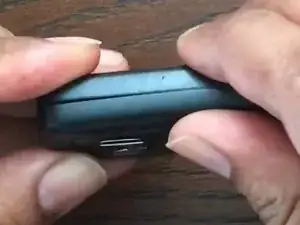

  5. cPrVlOdl2ICIdrua

    • Put the outer shell together and gently press and snap the two half's in place

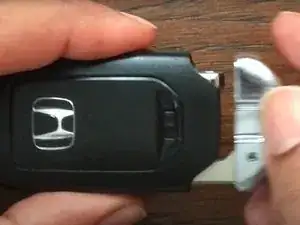

  6. EOWxRAdEDQys6uwb

    • Put the mechanical key back

Abschluss

To reassemble your device, follow these instructions in reverse order.
