2011-2017 Hyundai Veloster Back-Up Light and Brake Light Replacement

Geschrieben von: Adrian Ng

Kommentare: 0

2011-2017 Hyundai Veloster Back-Up Light and Brake Light Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

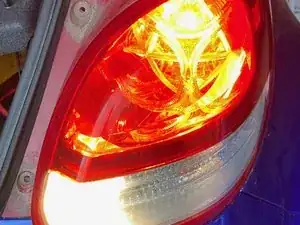

It is crucial to replace your back-up and brake lights immediately because it will affect road safety when you are stopping the car or having an emergency stop. Notice that the police also may pull you over if your tail light is not working.

Are the back-up or brake lights not working in your Hyundai Veloster? Don’t want to spend money on the replacement to the auto store? Save money and do it yourself at home or in your garage following this guide step by step. It is easy to understand and follow even you are a beginner.

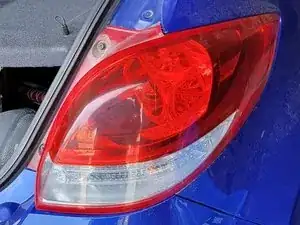

In this guide, I will replace the back-up light and brake light for a 2012 Hyundai Veloster.

———————————————————————————————————————————————

Brake and tail light bulb type: P28/8W (Wattage: 28/8 )

Back-up light bulb type: W16W (Wattage: 16)

———————————————————————————————————————————————

Note: You can wear your safety & work gloves before working on the replacement.

Werkzeuge

Phillips #2 Screwdriver

Ersatzteile

Schritt 1

Make sure the car is off before you start your replacement. However, You don't have to disconnect the car battery.
Open the trunk first.

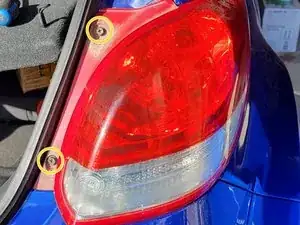

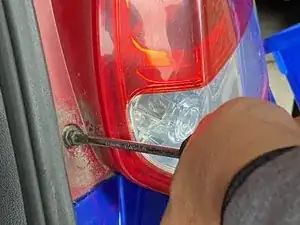

Using Phillips #2 screwdriver, remove the two 10 mm screws from the back & tail light.

Schritt 2

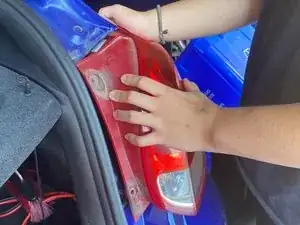

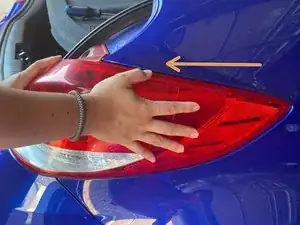

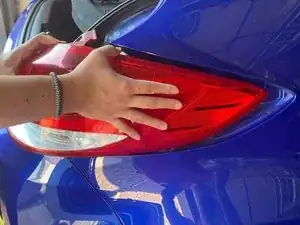

Using both hands, carefully pull the brake & tail light off.

Schritt 3

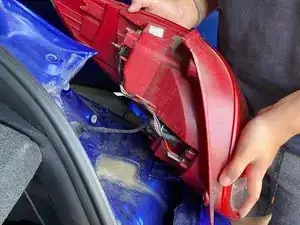

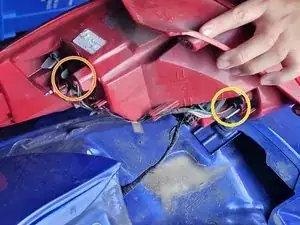

Here is the tail light assembly.
The left one is for the brake light.
The right one is for the back-up light.

Schritt 4

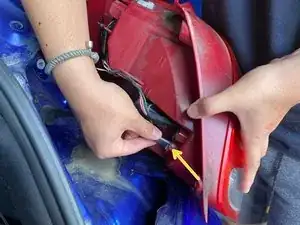

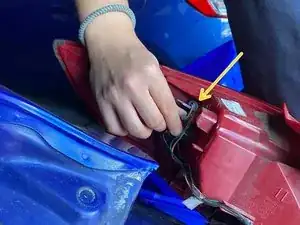

Twist and turn the backup light to the right. And then pull it out.
Make sure not to touch the surface of the light bulb because it will break the light bulb easily.

Schritt 5

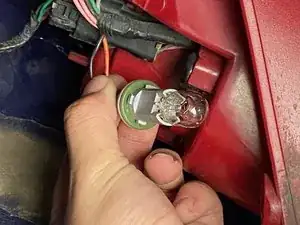

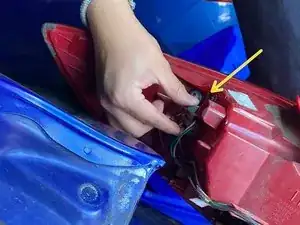

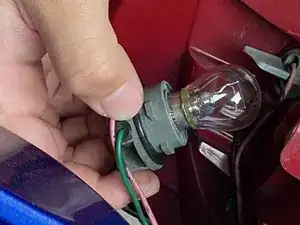

Twist and turn the brake light to the right and pull it out.
Make sure not to touch the surface of the light bulb because it will break the bulb easily.
