2011-2016 Ford Super Duty Tail Light and Bulbs Replacement

Geschrieben von: Russell Wainwright
  • Kommentare: 0
2011-2016 Ford Super Duty Tail Light and Bulbs Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will show you the proper way to install new light bulbs in the tail light housing of your 2011-2016 Ford Super Duty pickup truck. This fix will need to be done when one or multiple of your taillight bulbs have gone out. Please make sure the vehicle is in park and on a solid surface. This will take about ten minutes to complete and is a fairly simple and straightforward process.

  1. uMUIZLCdYKuTR2li
    uMUIZLCdYKuTR2li
    csKTOcFis4UbfQEM

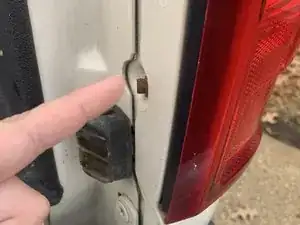

    • Locate the two 8 mm screws that attach the taillight housing to the vehicle.

  2. 3teCFcJItaIO4TTS
    3teCFcJItaIO4TTS
    wcbFjgSSCALF4Slm

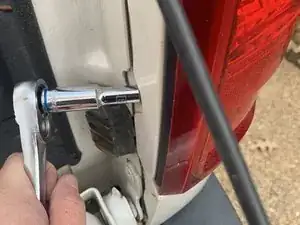

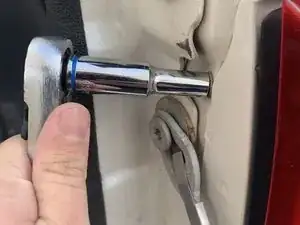

    • Using a socket and ratchet wrench, remove the two screws facing the inside of the bed that you located in Step 1.

  3. rmpIEROYHoCUuOpw
    rmpIEROYHoCUuOpw
    PTYvl5i1rhO1EGmX

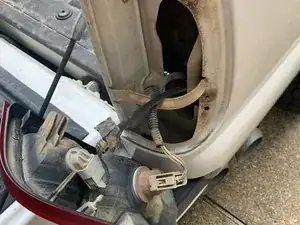

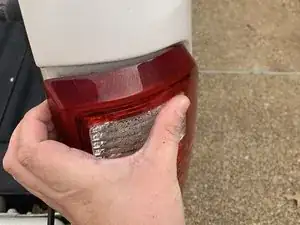

    • Pull the light housing outward at an angle away from the truck.

  4. 1tBjy3SIP5VmFxnr
    1tBjy3SIP5VmFxnr
    nQ4a2MnhYdUjo4Do
    ADf456b4vGCuMYPd

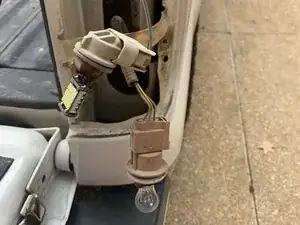

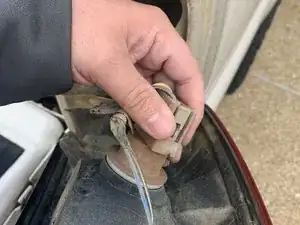

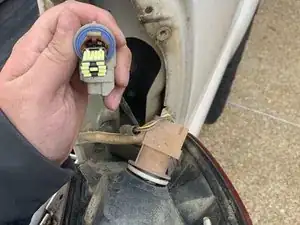

    • Twist the light socket in a counterclockwise motion to remove the bulbs.

  5. kdQwLk5U6ICObLPP
    kdQwLk5U6ICObLPP
    fQILebJCwRtHEAgh
    puddFrsPYXxMraZT

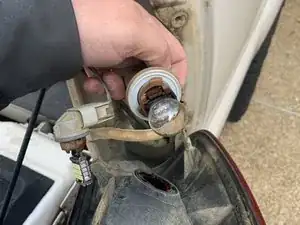

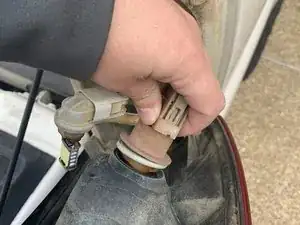

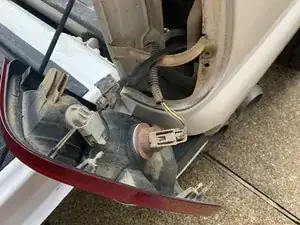

    • Insert a new bulb.

    • Place the light bulb socket back in the hole and turn clockwise until it's locked in place.

  6. exgqWFKQewEBXnWV
    exgqWFKQewEBXnWV
    pKuInMxATvjDxsKD
    SDQ2KeyJq4RAOBPb

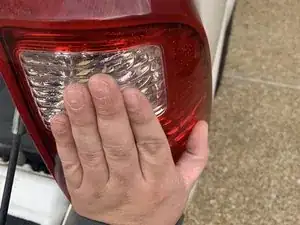

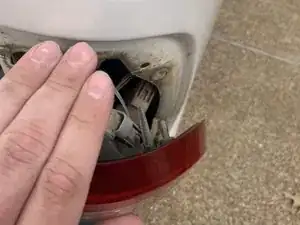

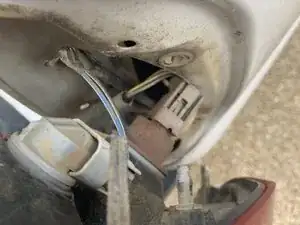

    • Line up the taillight housing with the holes and guides, and push it into place.

  7. wAKLAngqw2uQdsKL
    wAKLAngqw2uQdsKL
    SexHoaUZIUAKPI2Q
    WKdmaL4JT6vTXyKo

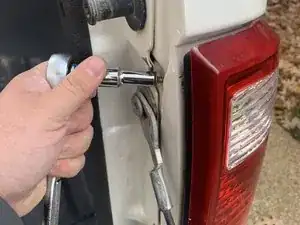

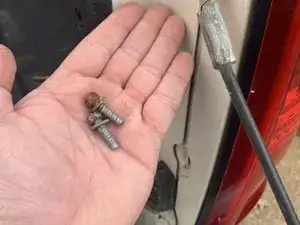

    • Use a socket and ratchet wrench to tighten the screws back into the taillight housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
