2011-2013 Scion tC Front Dome Light Replacement

Geschrieben von: Nick d'Alencon
  • Kommentare: 2
2011-2013 Scion tC Front Dome Light Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

  1. ueDluX1C5gQsdDn2

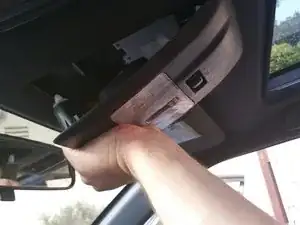

    • Remove the plastic covering of the lights by pulling it down quickly from the windshield side.

    Are there any clips that are holding it in place? Or what will I be unhooking when pulling it down quickly from windshield side??? Would like to know so I'm aware of what not to worry about breaking….

    amanda lambert -

  2. FNH1qtgY53vJGEFL

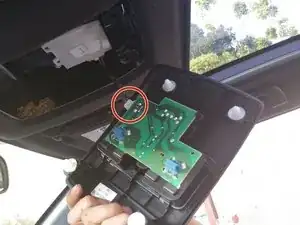

    • Disconnect the plastic header from system by pressing inward on the side tabs.

  3. YGucxEsrigtQDByO
    YGucxEsrigtQDByO
    bINlHuZw6IQ4Gb5o

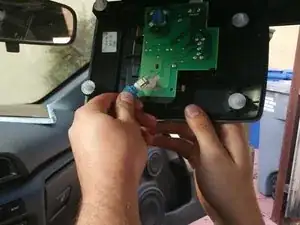

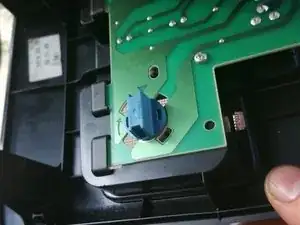

    • Turn blue knobs counter clockwise and pull to remove bulb housing.

  4. tiCyqjxuPdcKD13D
    tiCyqjxuPdcKD13D
    oVBZ3nKgwMbVEIe2

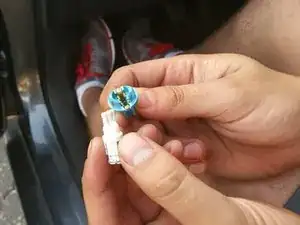

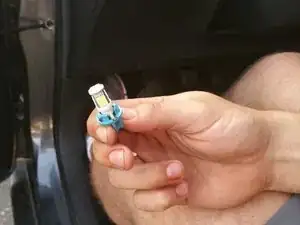

    • Pull burnt bulb out of knob/housing.

    • When inserting the replacement, take note of the direction and polarity of the unit.

Abschluss

To reassemble the dome, follow these instructions in reverse order.
