2011-2013 Scion tC Oil/Oil Filter Replacement

Geschrieben von: Lucas
  • Kommentare: 4
2011-2013 Scion tC Oil/Oil Filter Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

30 Minuten

Einleitung

Oil changes are an important part of maintaining any vehicle and to ensure your Scion’s longevity. Conventional oil changes should be done every 3000-5000 miles. If using synthetic oil, you should change it closer to every 5000-7000 miles. With a couple tools and the right supplies, changing your oil on a 2011-2013 Scion tC is not difficult.

It is important to be cautious when changing your oil or anytime you are under a vehicle. Make sure your car is secure on jack stands or ramps before getting underneath. Also let the engine cool off before changing your oil so that the oil is not too hot.

After purchasing the supplies and gathering the tools, follow this guide to replace the oil and oil filter in your 2011-2013 Scion tC.

Note: Always check with the manufacturer or the manual provided with your vehicle to determine the proper oil weight to use.

Warning: Conducting maintenance or repair on your vehicle can be dangerous. Exercise extreme caution when following this guide.

  1. ZVPKTPm3RJCiQhCl

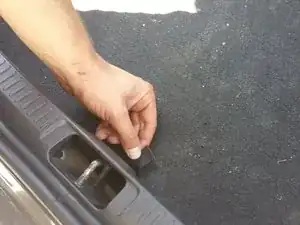

    • Open the spare tire compartment in the trunk of the vehicle by pulling up on the black tab.

  2. uVy6ddTtLGPNDGdi

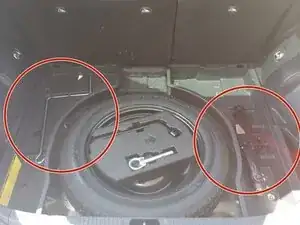

    • Locate the manufacturer supplied jack and jack handle in the spare tire compartment; these will be needed for the replacement.

    • This is an emergency jack, and is not safe to use for routine maintenance. Use a floor jack with a weight rating appropriate for your vehicle.

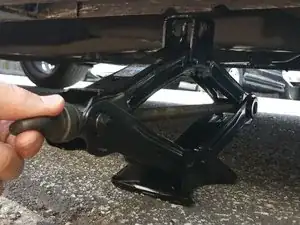

  3. tsnIP1ruIOgOifVR

    • Place the jack approximately 2 feet behind the passenger wheel tire at the shown location. Finger tighten the jack until snug against the frame.

    • It's best to avoid using the jack included with the car. If at all possible, use at least a 2 ton floor jack.

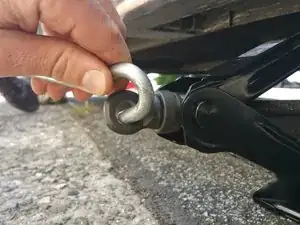

  4. 23alSJC3vSaZAM2g

    • Place the jack handle in the jack to begin lifting the car.

  5. kiGyLgWsFReu3Hdf

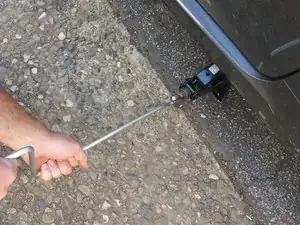

    • Using two hands, turn the jack handle clockwise and raise the car.

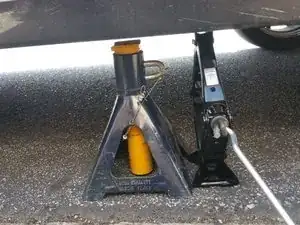

  6. XotVlbGQ1HiPods1

    • Raise the car until the jack stand can fit underneath the frame. Place the jack stand under the frame as close to the jack as possible.

  7. lHNAJHxbWsVqhOaA

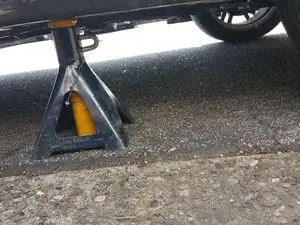

    • Lower the car onto the jack stand by turning the handle counterclockwise. Remove the jack once the load is taken off.

  8. CVJG5WWTpvrxtDf1

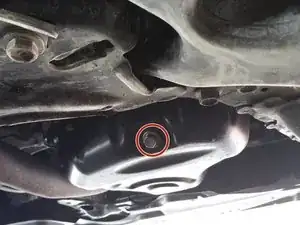

    • Once the jack stand is securely in place locate the engine oil drain plug. This is most accessible by crawling on your back from the front of the car.

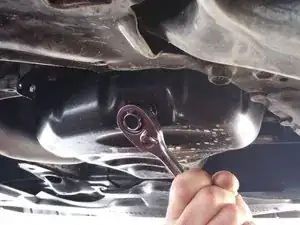

  9. CwTYCrXIyjXw5RQG

    • Using the 14mm socket wrench, loosen the drain plug by turning counterclockwise until you can turn the plug by hand.

    • Be careful not to loosen all the way to avoid spilling oil.

  10. 4C6Lxfx1GGplHJjr

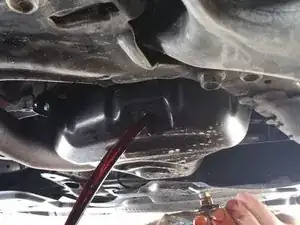

    • Once the plug is slightly loose, place the oil drain pan underneath the plug, remembering to account for the arc of the stream when placing the oil pan.

    • Continue to loosen the plug until oil begins to flow.

  11. K1bmPGybtJFIy4QO

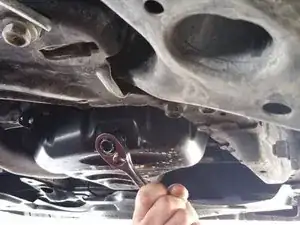

    • Allow oil to drain freely until drops of oil are slowly coming from the drain. Then re-tighten the oil drain plug using the 14mm socket wrench.

    • Do not over-tighten the drain plug. Only apply approximately 20 lbs to the end of the wrench.

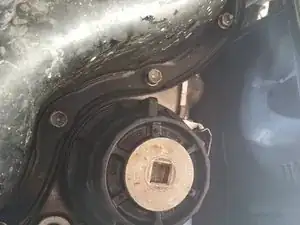

  12. FjL4GJKaWeRLRJtk

    • Locate the oil filter. This is most accessible on your back from the front of the car. The filter should be about a foot closer to the front of the car from the oil drain plug.

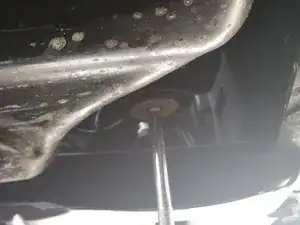

  13. ihnFaJolVJKONqAS

    • Using the 3/8 inch socket wrench with extension, loosen the oil filter by putting the extension in the square hole in the filter and turning counterclockwise.

    This will remove the metal cap, not the entire black filter housing. the oil filter instructions state a “sst” special service tool to remove the housing.

    Thankfully you were able to remove the housing with this, however I was only able to get the cap off of mine.

    th4tguy -

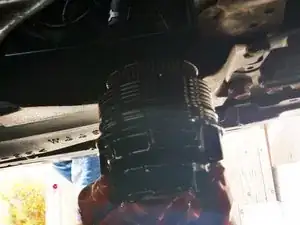

  14. joJeatxBsDLLQOtt

    • Place the oil drain pan directly under the filter. Fully loosen the filter by hand until you are able to remove it from the vehicle.

    wipe out cartridge with rag and flush out with a petro based solvent.

    alan darden -

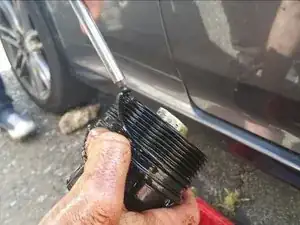

  15. KjGcLTVA5DcIOgjw
    KjGcLTVA5DcIOgjw
    pwiY35FFVwudbSRd
    ydGpW233y13uuwwk

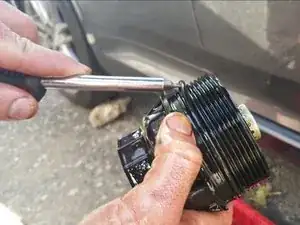

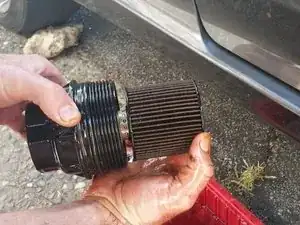

    • Remove the paper filter from the filter cartridge; this is disposable. Use the flathead screwdriver to pry the o-ring off the cartridge.

    reset the trip OD so maintenance light will go off, turn the key on, set it to trip A, turn key off, hold down the set knob while turning the key back on, wait till all the dashes disappear and 0's will come up, realese the knob and go to trip B , push and hold down on knob again and it will set back to 0.

    alan darden -

Abschluss

Replace the oil filter with a new one. Once reinserted into the filter housing, relube the o-ring with some fresh oil and reinstall on the filter housing. To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Lucas

Mitglied seit: 07/05/15

223 Reputation

Ein Kommentar

That 3/8” extension removes a plug that allows for clearing the oil from the filter before removal. this does not remove the filter housing.

th4tguy -
