2012-2018 Ford Focus Side Marker Light Replacement

Geschrieben von: Austyne Chetwood
  • Kommentare: 0
2012-2018 Ford Focus Side Marker Light Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

If your Side-marker bulb has gone out in your Ford Focus (2012-2018), use this guide to replace the bulb and get back on the road safely.

Side marker lights are auxiliary safety lights that clearly show other drivers your vehicle's location and direction of travel from a variety of angles. Without this bulb there is an additional risk while driving that other's on the road will not be alerted to your presence during the night or other obscure environments.

Step 7-8 requires you to handle the glass bulb. It is important to remember proper handling of glass during these steps.

Before beginning, make sure to turn off your car completely.

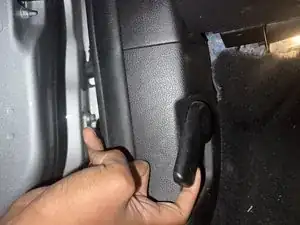

  1. jGJGZNKY5PZRgoT2
    jGJGZNKY5PZRgoT2
    iRtfQYNeAPJpvKNv
    GJZW5yYFiSpKXYJ2

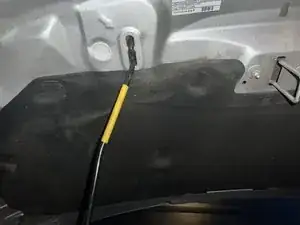

    • Release the hood lock found in the driver-side foot-well.

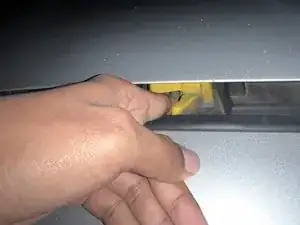

    • Find the latch under the center of the hood.

    • Depress the latch to release the hood.

    • Aline the hood strut into the designated hole to keep the hood open while working.

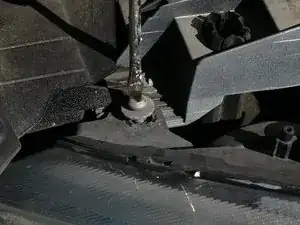

  2. WhMb21tQgsvoIO41
    WhMb21tQgsvoIO41
    WRpAhbUXEHJotQgW
    NrIGTPRSV3SCH3wb

    • Remove the screws connected to the headlamp using the Torx T30 socket wrench OR 10 mm flat head screwdriver.

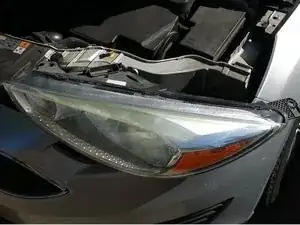

  3. 4DDofVSEtw1WhmcV
    4DDofVSEtw1WhmcV
    VpsrUaeDNEKvVaU2

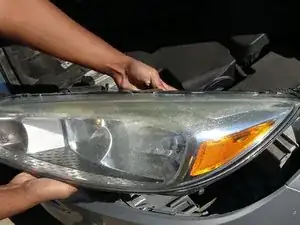

    • Pull the headlamp carefully upwards towards the hood until you hear a click.

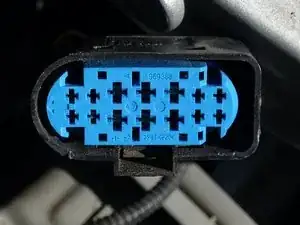

  4. YjHTw2auiFuHREXw
    YjHTw2auiFuHREXw
    tv5q4kBNoVGQeQHh
    vMxtFRvPecqDmBOQ

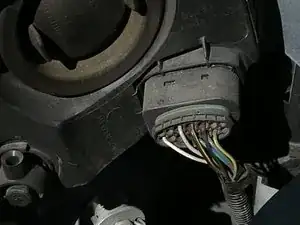

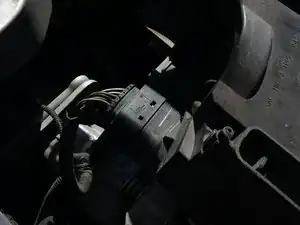

    • Disconnect the headlamp

    • Please be careful when disconnecting the headlamp because it is fragile

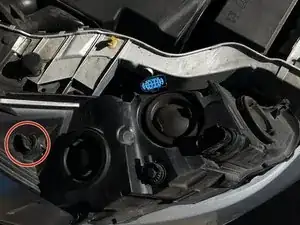

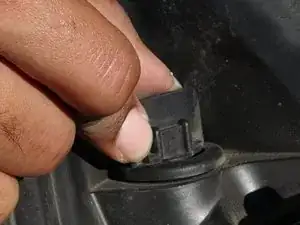

  5. sDcqp2LJHwQNGSkv
    sDcqp2LJHwQNGSkv
    VSpJKUafqtHcqPJT
    qGmvkCx4aLFJXVcM

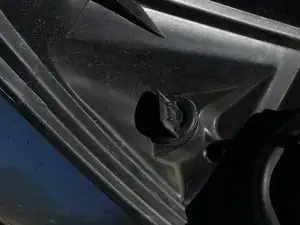

    • Twist the bulb cover counterclockwise.

    • Be careful when removing the bulb cover because it is fragile.

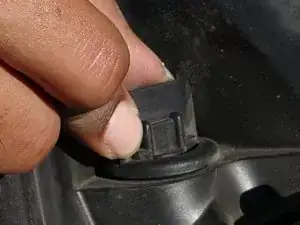

  6. ueGFtVpmAigtaOVn
    ueGFtVpmAigtaOVn
    LWpdjhT4ekoAPmsp
    pupWqDsmDpPTLRFQ

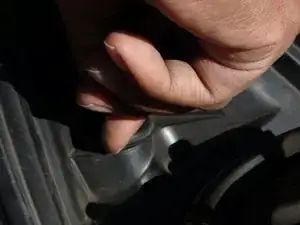

    • Pull on the bulb cover to take out the bulb holder.

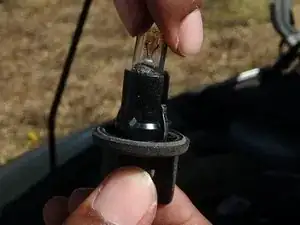

  7. vnp4ZY1nJiBEdkWL

    • Pull the bulb out of the bulb holder.

    • These bulb are fine to throw away with your regular trash.

  8. n5s3aQDcfaQTFhYe
    n5s3aQDcfaQTFhYe
    PFLT2ddVGrIyotKZ

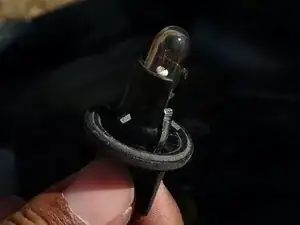

    • Press the new bulb into the bulb holder.

    • Do not touch the bulb with your bare hands. The oil from your hands can cause the bulb to shatter as it heats up. If you do touch the bulb, be sure to wipe the bulb clean with an alcohol wipe.

Abschluss

To reassemble your device, follow these instructions in reverse order.
