2012 - 2018 Hyundai Santa Fe Sport Brake Light Replacement

Geschrieben von: Vincent Huyen
  • Kommentare: 1
2012 - 2018 Hyundai Santa Fe Sport Brake Light Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 40 Minuten

Einleitung

Use this guide to replace the brake light bulb on the 2012 - 2018 Hyundai Santa Fe Sport.

The brake lights are something that frequently needs replacing compared to other parts and it is important to make sure your brake lights are functioning properly. It will become dangerous to drive around in a car with no brake lights.

There are many other light bulbs to be used as brake lights available, but the one I recommend is the Sylvia 2357 long life mini bulb.

  1. UDu1rriSUcRGwiVm
    UDu1rriSUcRGwiVm
    YJtyPT3QXH1RyCYI
    RXYtjG6FVVV5MhCr

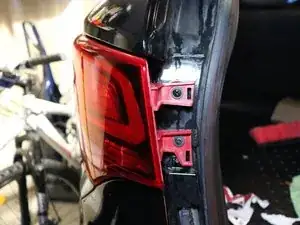

    • Open the trunk.

    • Remove the black plastic cover located on the inner side taillight by using a #2 flat head screwdriver.

    • Make sure to pry it off gently to avoid cracking the plastic cover.

  2. 21KgyUZQuMOtjWqN
    21KgyUZQuMOtjWqN
    oYMDpCRSQ6XLsWqU
    nGtbuY6usohNo1Tw

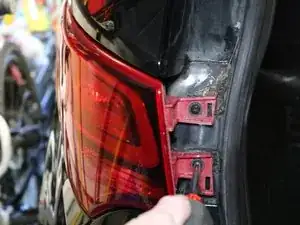

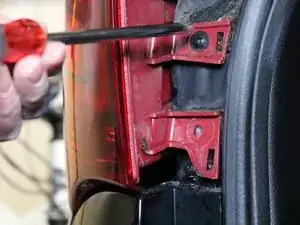

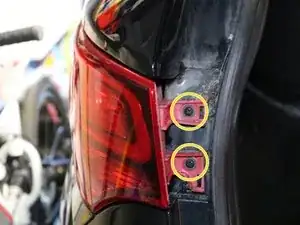

    • Remove the two 12 mm Phillips # 2 screws holding the taillight in place.

  3. Fk3FYpLnZouIMsFu

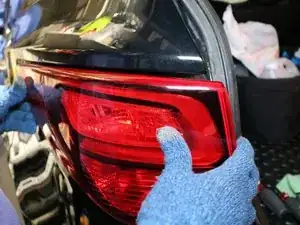

    • Slide out the headlights placing one hand on the outer side and the other hand gripped onto the back of the taillight, pulling straight out.

    • For easier removal, press down with force on the outer side of the headlight.

  4. 4tPhCYw65txZLvW6
    4tPhCYw65txZLvW6
    uuCOh4UpXtnM3XuL
    T3VTycsKTsBph4WW

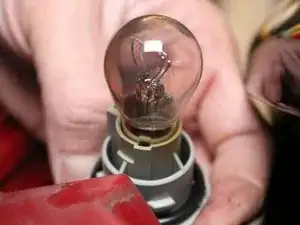

    • Turn the grey brake light socket with the multi-colored wires connected to it counterclockwise.

  5. jedBSaOiysXrFECY
    jedBSaOiysXrFECY
    WLm2OcDEbjjTLUqO

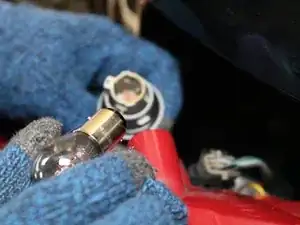

    • Pull out the light bulb from the grey bulb socket by pushing downwards while turning counterclockwise.

  6. AQleQEfHJojmwImv
    AQleQEfHJojmwImv
    SRJ3rLGRfC14iDPC

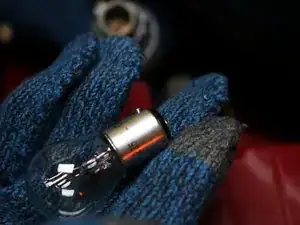

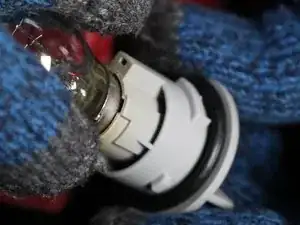

    • Take the new replacement bulb and insert it into the light socket while pushing down onto the bulb, turning clockwise and securing the bulb in place.

  7. 1IMCwyUjTQAXKKMj
    1IMCwyUjTQAXKKMj
    LVCLZcPStOtuCrX5

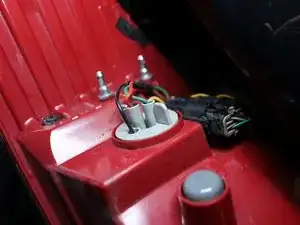

    • Slide the light socket back into the circular compartment, making sure the bulb is facing inwards.

    • After inserted, turn it clockwise to lock the bulb back into place.

  8. cgF1cgTDO2DuEUeK
    cgF1cgTDO2DuEUeK
    ZFh4JhSRMQTmYpKp
    2HBADgSDJwHiDLd1

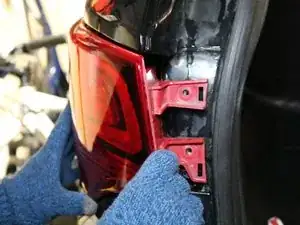

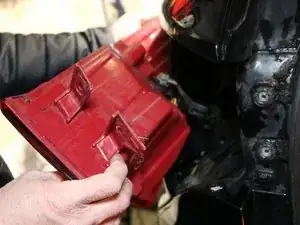

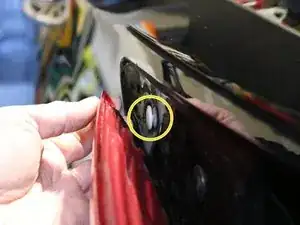

    • Slide the taillight back into the starting position.

    • Align the taillight with a circular piece on the outer side of the car.

    • Use moderate force while sliding the taillight, making sure screw holes are visible.

    • Make sure the grey circular piece on the side is aligned with the taillight to avoid damaging the taillight.

  9. pDYgxMhmRpTdpmQl
    pDYgxMhmRpTdpmQl
    BfbRisQQESvqWWSM

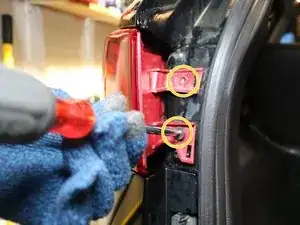

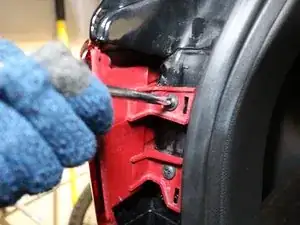

    • Take the two 12 mm Phillip #2 screws and place them back into the two visible holes.

  10. eOESTwAVFaIwFEY4
    eOESTwAVFaIwFEY4
    lZYHEQwjHI6IX5QD
    Rwkc1DvPI2gdqdMW

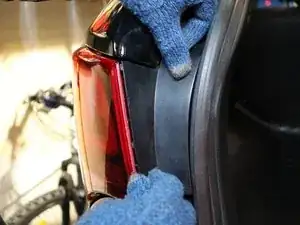

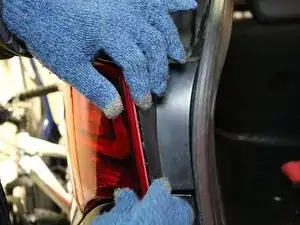

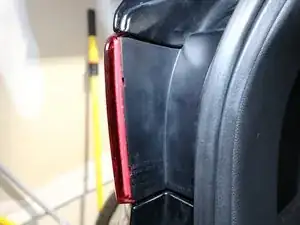

    • Replace the plastic cover by pushing down on all of the corners.

    • Once the plastic piece is fixed onto the car, you can then close the trunk.

    • The plastic piece is secure when all the sides are lined up with the car and taillight.

    • Avoid applying a significant amount of force to prevent cracks in the plastic.

Abschluss

You have now completed the guide, to replace the brake bulb on your 2012 - 2018 Hyundai Santa Fe Sport.
