2012-2016 Scion FR-S Oil and Oil Filter Replacement

Geschrieben von: Christopher Kidwell
  • Kommentare: 0
2012-2016 Scion FR-S Oil and Oil Filter Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to change your Scion FR-S Oil and Oil Filter. Have oil and a replacement oil filter before starting. Be sure to check that the oil can handle the temperatures commonly found in your area.

  1. ZPNSkDbp2FW1rqYo

    • Place the portable vehicle ramps in front of either wheel and slowly pull the vehicle up onto them.

    • Put the vehicle in park and engage the parking brake.

  2. ABUXG2CyygQqlFXc
    ABUXG2CyygQqlFXc
    UH1M4Vmr2XZgAN1t

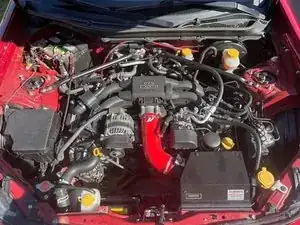

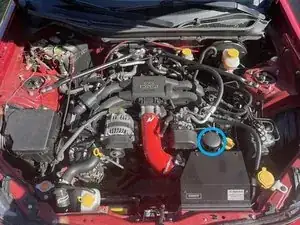

    • Open the hood of the car and locate the oil filter.

  3. fLWqfH4UcchTm1Yi
    fLWqfH4UcchTm1Yi
    N1BatxFI5TZjlIYI

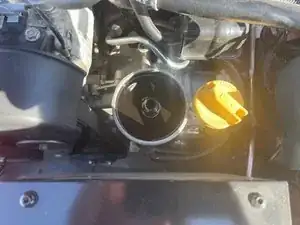

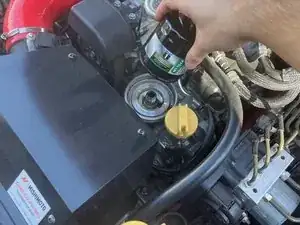

    • Remove the oil filter by turning it counterclockwise.

  4. lQLRyW3kaF2gCJ6a
    lQLRyW3kaF2gCJ6a
    MPIgtQhHWV2n4LGd

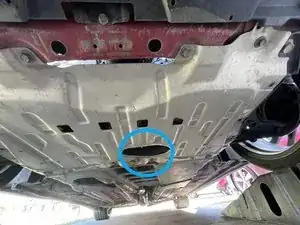

    • Lie down under the front of the car and locate the oil drain plug in the opening on the skid plate.

  5. mEFgYnZRyGiQAoVX
    mEFgYnZRyGiQAoVX
    McYEtXwUfUcj5pOA

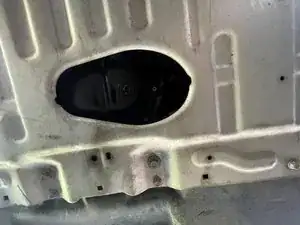

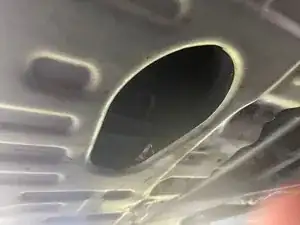

    • Place the oil pan below the drain plug.

    • The oil will be extremely hot if the vehicle has recently been running.

    • Remove the oil drain plug with the 14 mm socket wrench and let the oil drain into the drain pan.

  6. PY6vBOmIAC2JapVF
    PY6vBOmIAC2JapVF
    YKUVeugTtNhdonIb
    6Qilo6musdxEyMcA

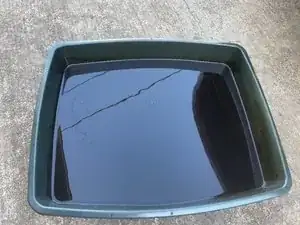

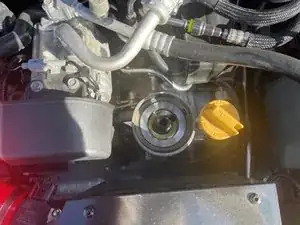

    • Allow the oil to drain from the vehicle.

    • 5 - 10 minutes will be needed for the oil to drain. This can be monitored by watching the oil drain from the location where the oil filter was removed.

    • Once there is no more oil pouring out, reattach the oil drain plug with the 14 mm socket wrench until it is tight.

  7. cJZPPWdemL1N1XOF
    cJZPPWdemL1N1XOF
    QqvfQk4JSgdHeBHT

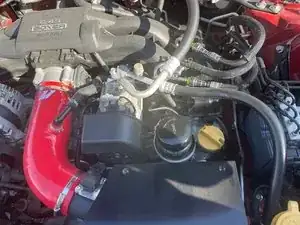

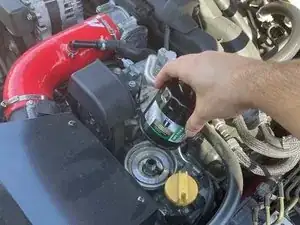

    • Screw the new oil filter in a clockwise rotation onto the same area where the old one was removed until it is tight.

  8. LSVYkjTwDro6KIvU
    LSVYkjTwDro6KIvU
    j2ptFApSh2wuGsqg
    SkxgjRSW1B2pit1m

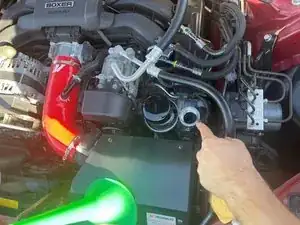

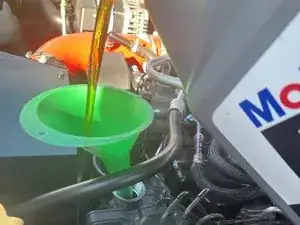

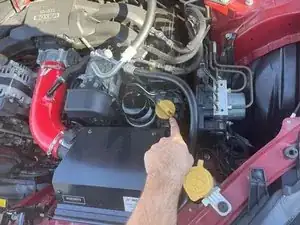

    • Locate the oil fill cap that is beside the new filter and take it off. Then pour the oil in using the funnel.

    • Only pour in 5.8 quarts of oil. Pouring in too much oil may cause damage to the engine.

    • Pour slowly so that the oil does not spill out of the funnel.

    • Remove the funnel and firmly reattach the oil fill cap.

  9. AYlCQHvX5PfOMbOQ

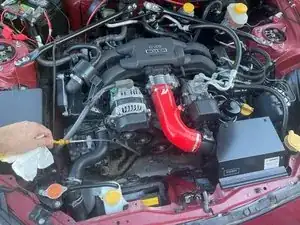

    • Slowly roll the vehicle off of the portable vehicle ramps.

    • Check the dipstick to make sure there is enough oil. The level indicated should be in-between the two metal dimples on the end of the dipstick.

    • If the vehicle is not on level ground, the dipstick may not show an accurate reading.

    • Safely dispose of the remaining oil and the old oil filter.

Abschluss

Congratulations on changing the oil on your 2012-2016 Scion FR-S!
