Einleitung

This guide will show you how to change a damaged or worn out battery in a 2012 Ford Fusion as safely and quickly as possible.

  1. LKA6gTtHsjII3LJp
    LKA6gTtHsjII3LJp
    GpdCIxkAuRbkvYS5
    fjOjIgXGSGABGCcK

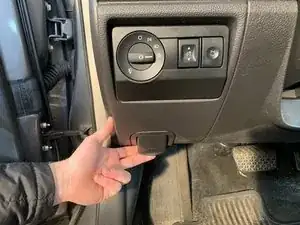

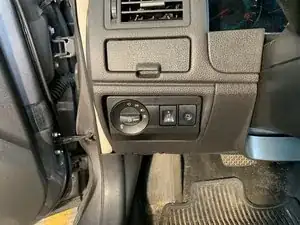

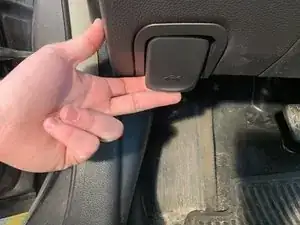

    • In order to access the car's battery, the hood must first be opened. To open the hood, begin by pulling the hood release latch.

  2. 6A15KnLxnbwf1o62
    6A15KnLxnbwf1o62
    mKtgcGPqqmITBaxQ
    K61nE3LBcOd3HnuC

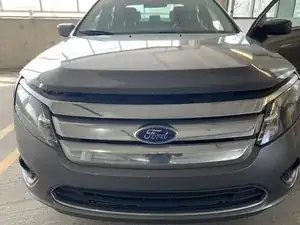

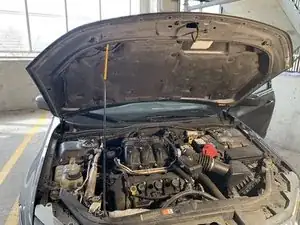

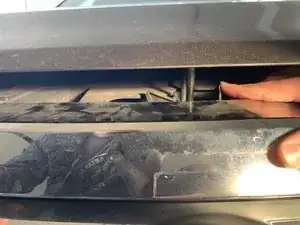

    • In order to get the hood fully opened after pulling the release, a small latch located between the grille and hood must be lifted up.

  3. 4MIRAmWGeWyaEetV
    4MIRAmWGeWyaEetV
    LkPC4HZoAeoTfV1f
    1Gg41ICFqiDHjTRq

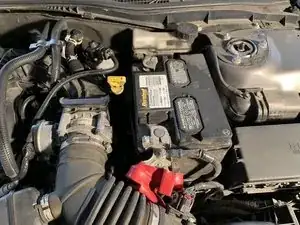

    • Locate the battery near the top right side of the car if looking at it from the front, and also pull back the red rubber guard covering the positive terminal as shown below.

  4. ZySDER4plUAdVXtG
    ZySDER4plUAdVXtG
    MoEMVOW1mnDuounZ
    BPDCPMLYwApQjKCk

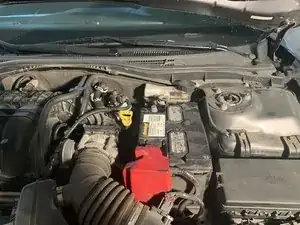

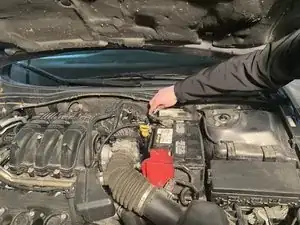

    • First locate the negative terminal and the nut that is holding the battery contact in place. To remove this, use the 8mm socket and ratchet and rotate nut counter-clockwise until it is loose enough to lift from terminal.

    • Be careful when handling the terminals to not touch both of them at the same time as that can cause serious harm. Always remove one terminal at a time starting with the negative terminal so you do not short out the battery.

  5. VjIyKAQQrsaGkgGf
    VjIyKAQQrsaGkgGf
    eHGfNDhLU3tEPEAT
    xNKboXLVPrwpvDBQ

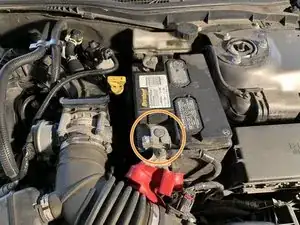

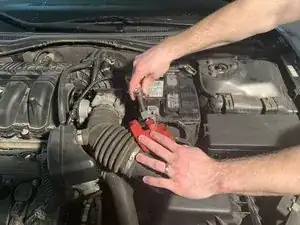

    • Next locate the positive terminal with the red rubber cover. Pull back the cover and locate the nut holding the battery contact in place. Remove the contact by using the 8mm socket and ratchet to turn the nut counter-clockwise until it is loose enough to lift from terminal.

    • Be careful when handling the terminals to not touch both of them at the same time as that can cause serious harm.

  6. tM4rCM5jCGBh4sRy
    tM4rCM5jCGBh4sRy
    HpOgadgpxAMcQJmP

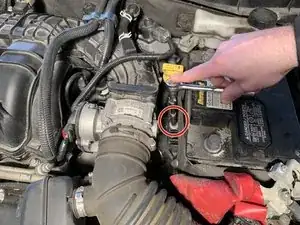

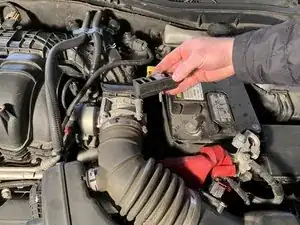

    • Locate the 8mm bolt on the left side of the battery that is holding the battery in place. Using the 8mm socket and ratchet, remove bolt by turning counter-clockwise until the bolt fully comes out of the holder.

    • Remove bolt along with holder as pictured.

  7. lsPy5phtpMTMTDue
    lsPy5phtpMTMTDue
    MrpQBHsnSSSJtVgc
    Vtmi2trv5SL4oUDg

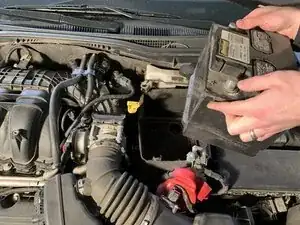

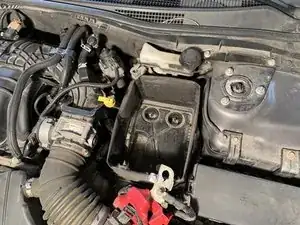

    • Now that all battery contacts have been removed and the battery holder has been removed, you can simply pull the battery straight up out of its original position as shown.

Abschluss

To reinstall the battery, follow these instructions in reverse order.
