2012 Ford Fusion Brake Light Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 15 Minuten

Einleitung

Make sure that the car has been off for 15 minutes because the brake light bulb may be hot.

  1. SIpEYsCABSiYTN1R
    SIpEYsCABSiYTN1R
    RjpXWuPktAgjaVsm

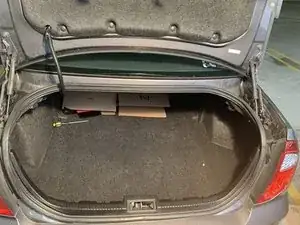

    • Locate the button that opens the trunk

  2. ylryDoKM2qdtfrNj
    ylryDoKM2qdtfrNj
    hCCJLcGQGILJclYN

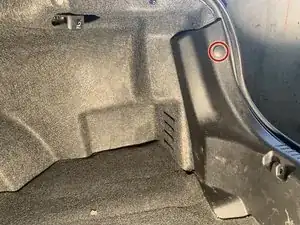

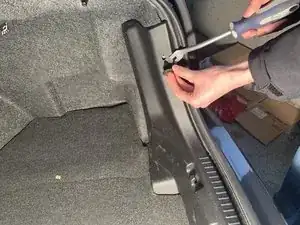

    • Locate plastic fasteners and remove with door panel remove tool/flathead by prying them off

  3. RqJ2CliwulFnbt5L
    RqJ2CliwulFnbt5L
    1EaONUCTS1uiceQX

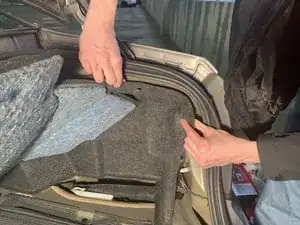

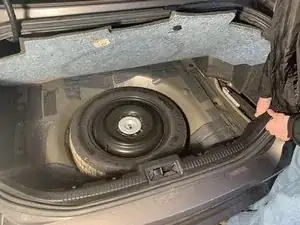

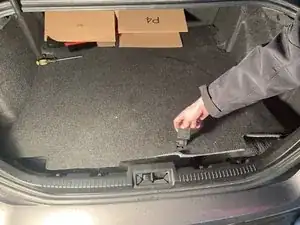

    • Pull tab and remove trunk cover

  4. tDNMRKmKbw4dcgRA
    tDNMRKmKbw4dcgRA
    nMeAbUKUWESsHRfC

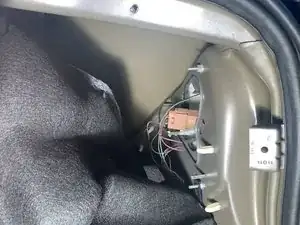

    • On the inside of the trunk remove the side panel to locate the brake light bulb

  5. KlikbkumqVQYMweW

    • Pull the Brown housing that holds the brake light

  6. AAMMIO5sKyWaRo22
    AAMMIO5sKyWaRo22
    lajLeRIToFxIhIut

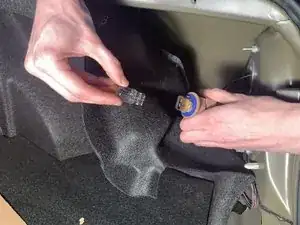

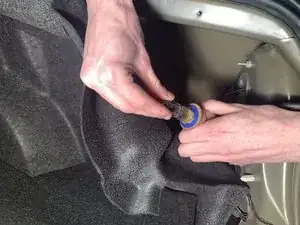

    • Remove brake light from housing by pulling it out gently and replace with new bulb

Abschluss

To reassemble your taillight bulb, follow these instructions in reverse order.
