2012 Ford Fusion Headlight Replacement

Geschrieben von: Angelica

Kommentare: 4

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

6 - 20 Minuten

Einleitung

This guide will show you how to change a worn out headlight bulb for a 2012 Ford Fusion as quickly as possible

Werkzeuge

Socket Set

Schritt 1

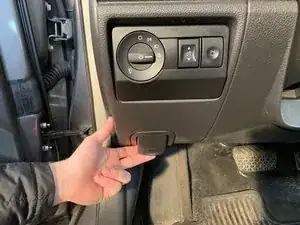

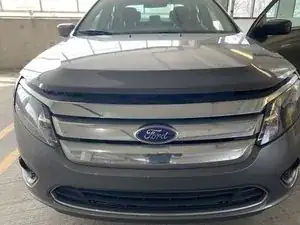

Locate the hood latch and pull it to open

Schritt 2

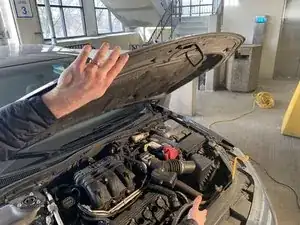

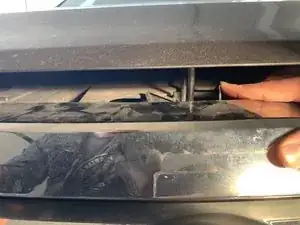

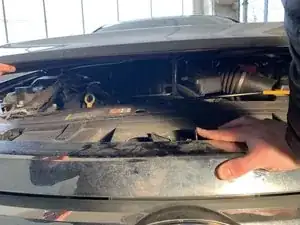

The front hood will open and be caught by a saftey latch. Run fingers under the hood and push the latch to the left to open the hood completely

Schritt 3

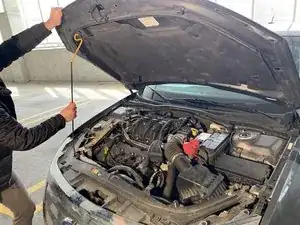

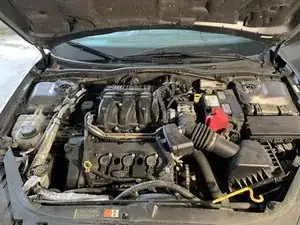

Hold up the hood with the hood support rod

Schritt 4

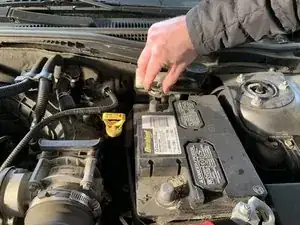

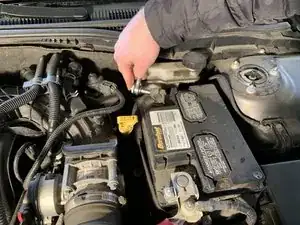

Remove negative terminal from the battery using a 10mm socket. Remove the bolt that is holding the negative terminal and pull terminal off the battery.

Schritt 5

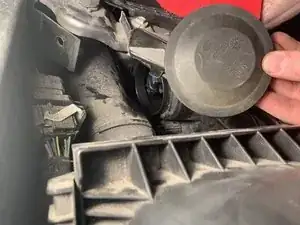

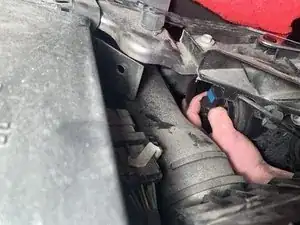

Locate the headlight bulb in the front of the car under the hood and twist off the cap covering the headlight bulb

Schritt 6

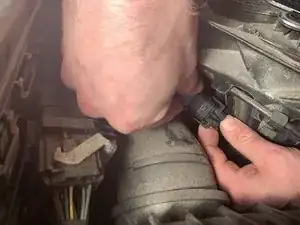

twist the housing to the light bulb and pull it out

Schritt 7

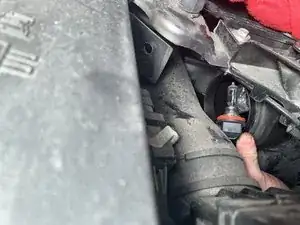

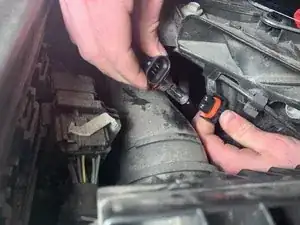

unclip the light bulb from the housing latch and replace light bulb

Abschluss

To reassemble your headlight, follow these instructions in reverse order.
