2012 Volkswagen Touareg Door Lock Switch Replacement

Geschrieben von: Jacob Coulson
  • Kommentare: 0
2012 Volkswagen Touareg Door Lock Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

1 Stunde

Einleitung

This guide will show you how to replace a door lock switch in a T3 (2010-2018) Volkswagen Touareg. An extra set of hands will make this repair much easier when removing the wiring from the back of the door panel. A lot of the panels that are to be removed contain brittle plastic clips, so proceed with caution.

  1. rJQaXZvMdRoIEiQY

    • Remove the door pull trim piece using a nylon offset v-notch prying tool.

  2. JRvyUHwwNcjWKNxl

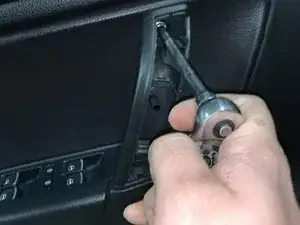

    • Remove the T20 Torx bolt underneath the door trim pull piece.

  3. kaKNEpoCdvsLQfdq

    • Remove the armrest by firmly pulling up on the cover.

  4. L3j6LYexLCWNwvQW

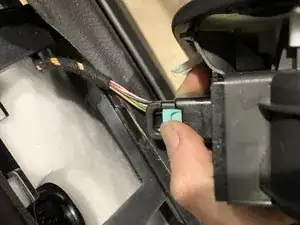

    • Remove the wiring from the window switch.

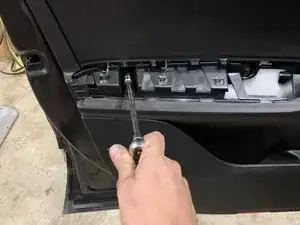

  5. BPdJSNt1SKDoLFxM
    BPdJSNt1SKDoLFxM
    FH6fGnhFcXTsCoWR

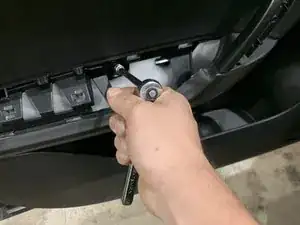

    • Remove the two T20 Torx bolts that were originally underneath the armrest cover.

  6. apyIVqZLL6aciMJW

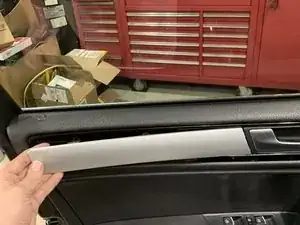

    • Remove the belt line trim piece carefully with a trim removal tool.

    • This trim can be very brittle.

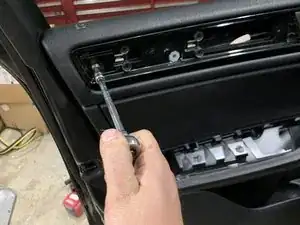

  7. T5hEICgmnWDWljSI

    • Remove the T20 Torx bolt that is underneath the belt line trim piece.

  8. B4b2NksRg3GhQkwg

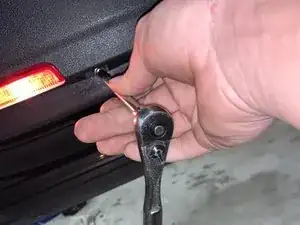

    • Remove the T20 Torx bolt at the very bottom of the door panel.

  9. KEFQlGyYBLrhCxO4

    • Use a trim removal tool to release the clips on the bottom side of the door panel.

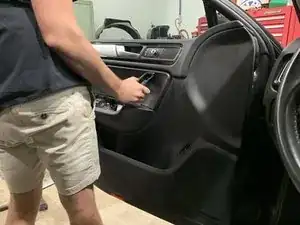

  10. QMCXMQK2PZNdSQfh

    • Once all of the clips are released, use the door pull and lift the door panel off of the top of the door frame.

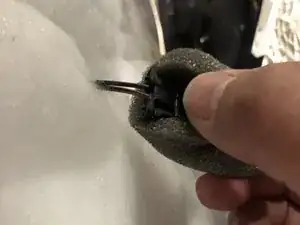

  11. AWjyGrnJJuWgWgU5

    • Remove the tweeter wiring.

    • This plug will be wrapped in a grey styrofoam-like material.

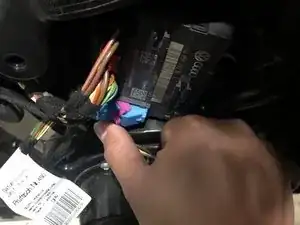

  12. S1EGoXjTpo5GxfRk

    • Remove the main door harness from the door control module.

    • This will be a light blue plug with a pink lock.

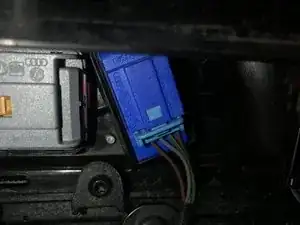

  13. G5xJWU6KbCKShAMR

    • Now that the wiring is removed from the door panel, distinguish which plug is the door lock switch.

    • It will be located in the top of the door panel. The back of the switch will be blue.

  14. SHSBIxRH5XTXMGb4

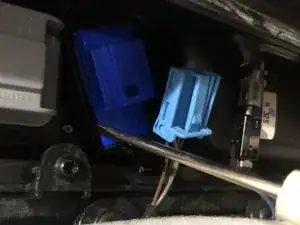

    • Remove the wiring and use a pick to free the switch of the mounting tabs.

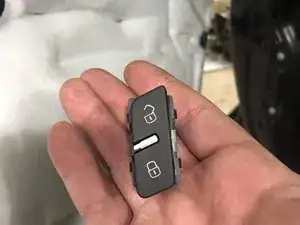

  15. MOAGjqTqMIvZWRZJ

    • Once the switch is free of the tabs, simply push the switch out from the front of the door panel towards the back.

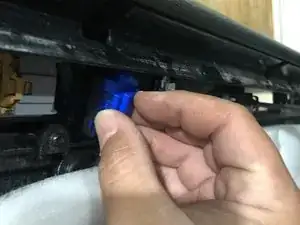

  16. dMoXrPkpTPm2glqG

    • To install the new switch, just push firmly into the locking tabs until the switch clicks into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
