2015 Jeep Renegade Rear Windshield Wiper Replacement

Geschrieben von: littleturkey03
  • Kommentare: 0
2015 Jeep Renegade Rear Windshield Wiper Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

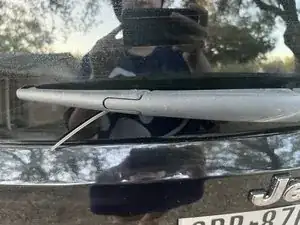

  1. 2JT4AgDPuHPCkm6X
    2JT4AgDPuHPCkm6X
    YhoVbIhc1blWCrsB

    • Rear windshield wiper after 7 years, needing to be changed. Rubber blade has detached from the wiper.

  2. FYUEDrXObalJnfxS
    FYUEDrXObalJnfxS
    FpZDxn11kSH6xyGy

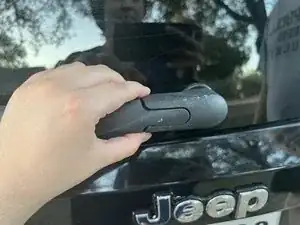

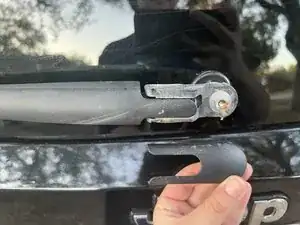

    • Remove cap by pulling on it.

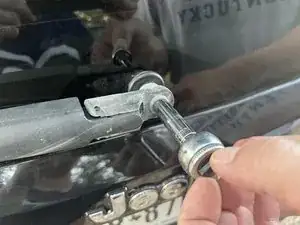

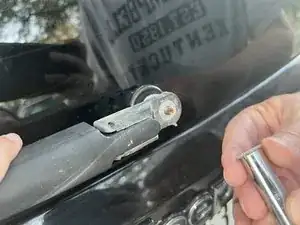

  3. wxPXhX5mtHjKwSdl
    wxPXhX5mtHjKwSdl
    dYxCP3ZPIulJoM25

    • Using a 10mm socket wrench, remove the nut.

  4. I13jvNpyYLhSSdHH

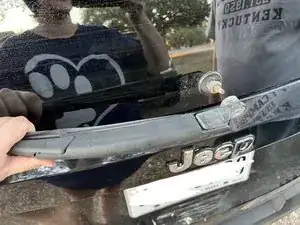

    • To remove the wiper arm off the wiper motor linkage, pull straight back. This will require considerable force. The wiper linkage is tapered and knurled.

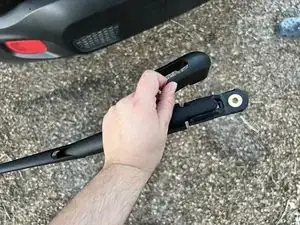

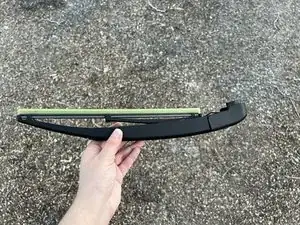

  5. AEGKXopvLLxTTcQx
    AEGKXopvLLxTTcQx
    NCJnWsVXyk4TZULe

    • Remove the cap from the new wiper arm

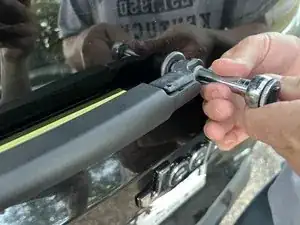

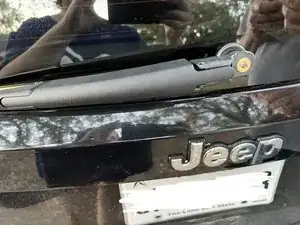

  6. HpyioP1wwlVZutdE
    HpyioP1wwlVZutdE
    RFwKvnFtsQpZsQYj

    • Push the new wiper arm onto the wiper motor linkage and tighten the nut.

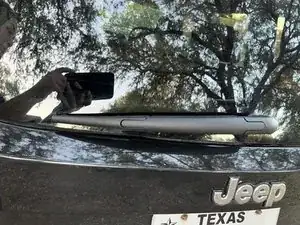

  7. 1kPMeuCCffWZEBxo

    • New rear wiper blade replaced
