Einleitung
-
-

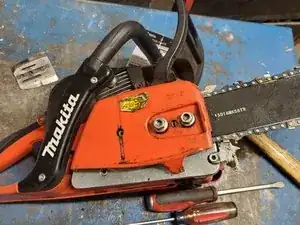

Remove four T27 torx screws, keep note of the different lengths the longer two in the front also hold the bumper spike.
-
-
-

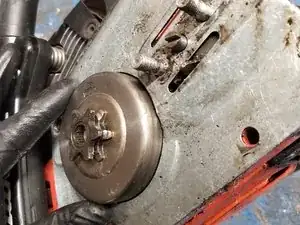

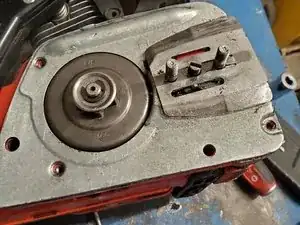

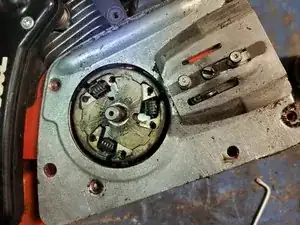

Remove the lock washer with a flathead screwdriver then release the chain brake to remove clutch drum.
-

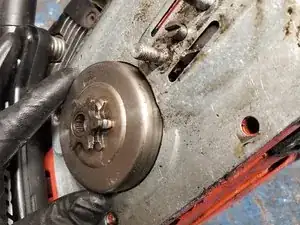

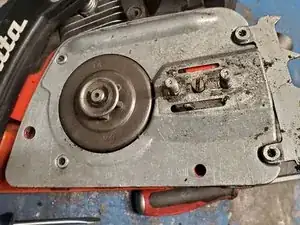

With the chain brake disengaged add your new clutch drum then reinstall the four T27 screws
-

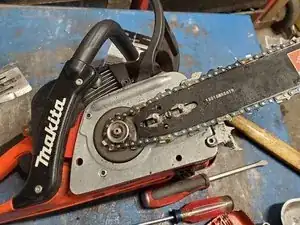

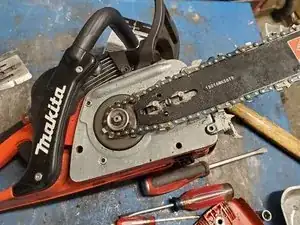

Add bar and chain then reinstall cover and 1/2 inch* flange nuts
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
