Einleitung
A positive crankcase ventilation (PCV) plate increases the longevity of your oil by reusing unburnt gas. It is also required for emissions. When installing your PCV plate, there could be a faulty gasket creating an oil leak. If you notice an oil leak coming from your PCV plate, there is a good chance it is because the gasket isn’t sealing properly. This guide will walk you through how to properly replace the gasket.
Werkzeuge
Ersatzteile
-
-

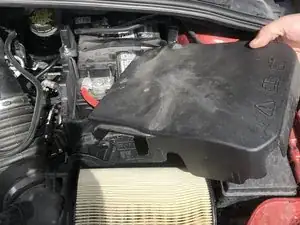

Using a 1/4 inch flex head ratchet and a 1/4 inch shallow 10mm socket, loosen the battery cable tightening nut.
-
-
-

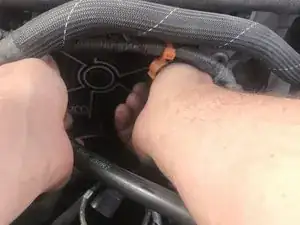

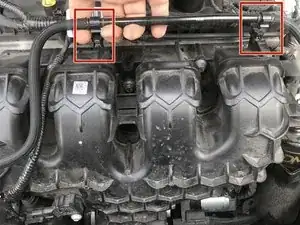

Remove the vacuum line from the front of the intake by gently pulling up on the line releasing it from the clamps.
-
-
-

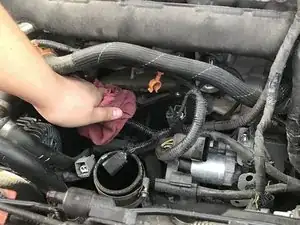

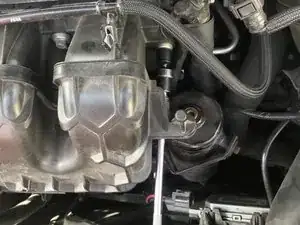

Using a 1/4 inch 7mm deep socket and 1/4 inch flex head wrench, loosen the worm clamp on the cold air intercooler pipe.
-
-
-

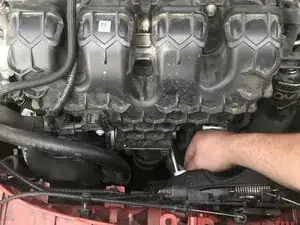

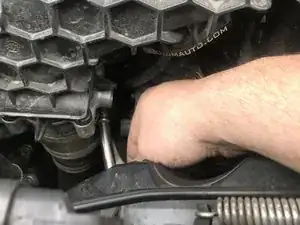

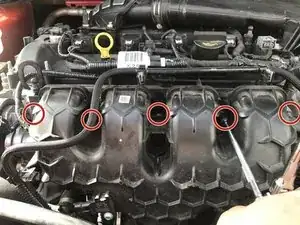

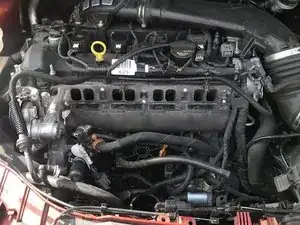

Using a 1/4 inch 10mm wobbly socket, 1/4 inch 8 inch extension, and 1/4 inch ratchet, remove all 5 of the cap screws holding the intake to the cylinder head.
-
-
-

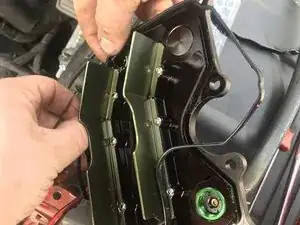

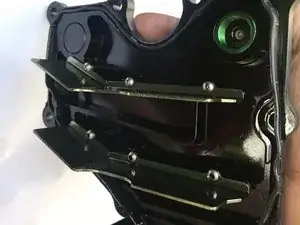

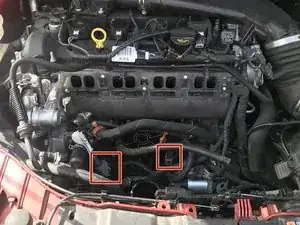

Reinstall the PCV plate on the side of the engine block.
-

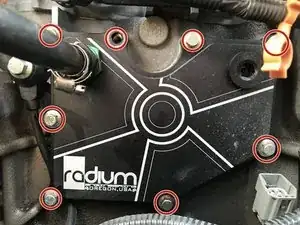

Torque the PCV plate mounting bolts to 89 inch pounds.
-

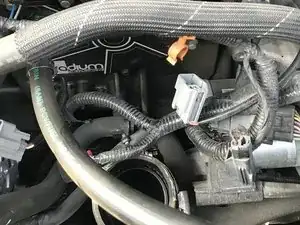

To reassemble your device, follow these instructions in reverse order.
